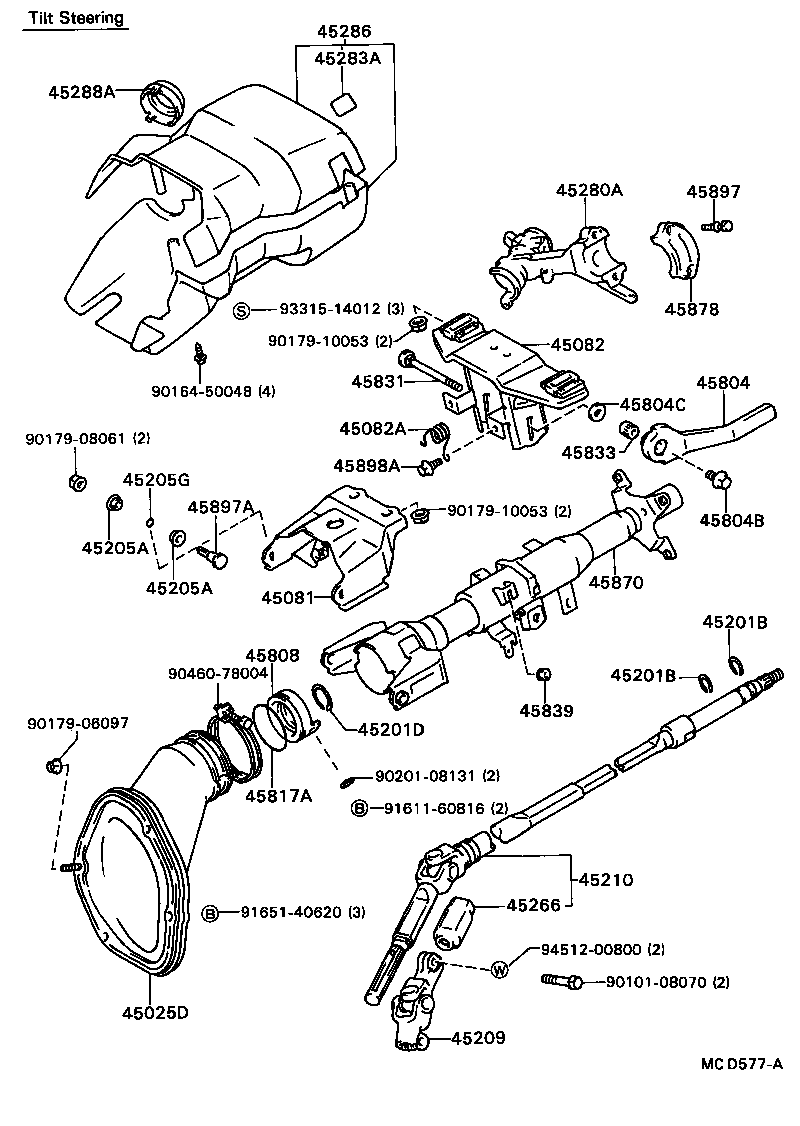

CV20-UEPNX (1986)
Toyota Camry/Vista
(8608- )VE,VL,VR,XT,ZE,ZT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-32050 |
CV20,SV2# |
1 | ||
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-32070 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-32020 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-29015 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT 厚さ=1.35−1.45 |
2 | ||
| 90520-17196 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT 厚さ=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT 厚さ=1.35−1.45 |
2 | ||
| 90520-17196 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT 厚さ=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 90520-28061 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT |
1 | ||
| 90520-28061 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
4 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90389-11005 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
4 | ||
| 45205G - RING, O(FOR STEERING COLUMN TUBE) | ||||
| 90301-11005 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-32110 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-20010 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-20280 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
CV20,SV2#,VZV20 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3290905 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 45286-3290904 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT BLUE,DARK BLUE,TRIM8# |
1 | ||
| 45286-3290902 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT MAROON,MAROON,TRIM3# |
1 | ||
| 45286-3290905 |
CV20,SV20,21..LT,VC,VE,VL,VR,XT,ZE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 45286-3290902 |
CV20,SV20,25 MAROON,TRIM3# |
1 | ||
| 45286-3290904 |
CV20,SV20,25 DARK BLUE,TRIM8# |
1 | ||
| 45286-3290905 |
CV20,SV20,25 DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-30010 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-20010 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45804B - BOLT(FOR STEERING TILT LEVER) | ||||
| 90105-08060 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-08029 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
CV20,SV2#,VZV20 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-20010 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20010 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45839 - GROMMET, RETURN SPRING | ||||
| 45839-20010 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
2 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-32080 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-32030 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45878-32030 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT |
2 | ||
| 45897-12020 |
CV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-26010 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
2 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-20020 |
CV20,SV2#..VE,VL,VR,XT,ZE,ZT |
2 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90164-50048 | ||||
| 90179-06097 | ||||
| 90179-08061 | ||||
| 90179-10053 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-60816 | ||||
| 91651-40620 | ||||
| 93315-14012 | ||||
| 94512-00800 | ||||
