CV20-UEPNX (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )2CT

Click highlighted areas on diagram

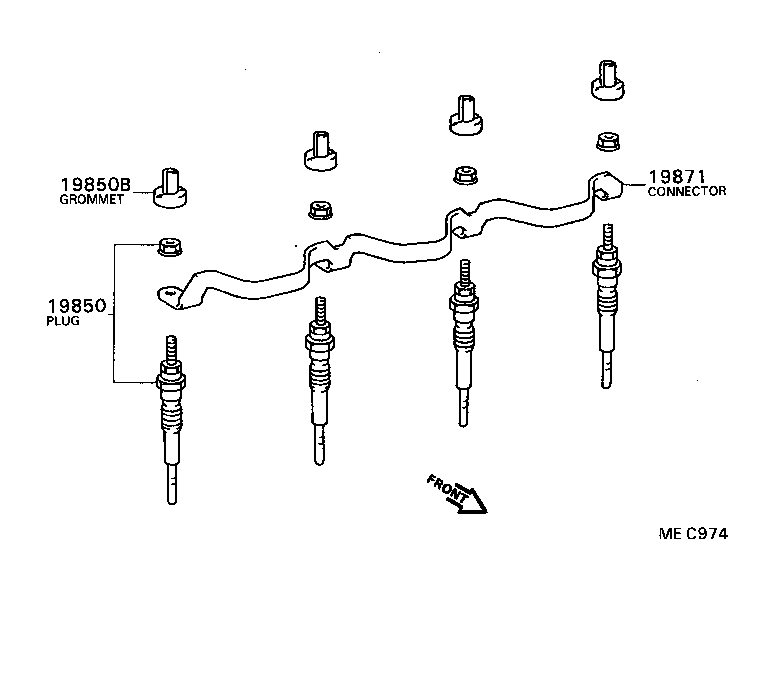

diagram 19850 19850B 19871
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-64010

2CT..CV20

*BV−GV=12V−7V

 4
19850-64010

2CT..CV20

*BV−GV=12V−7V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

2CT..CV20

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-64021

2CT..CV20

 1
