CV20-UEPNX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

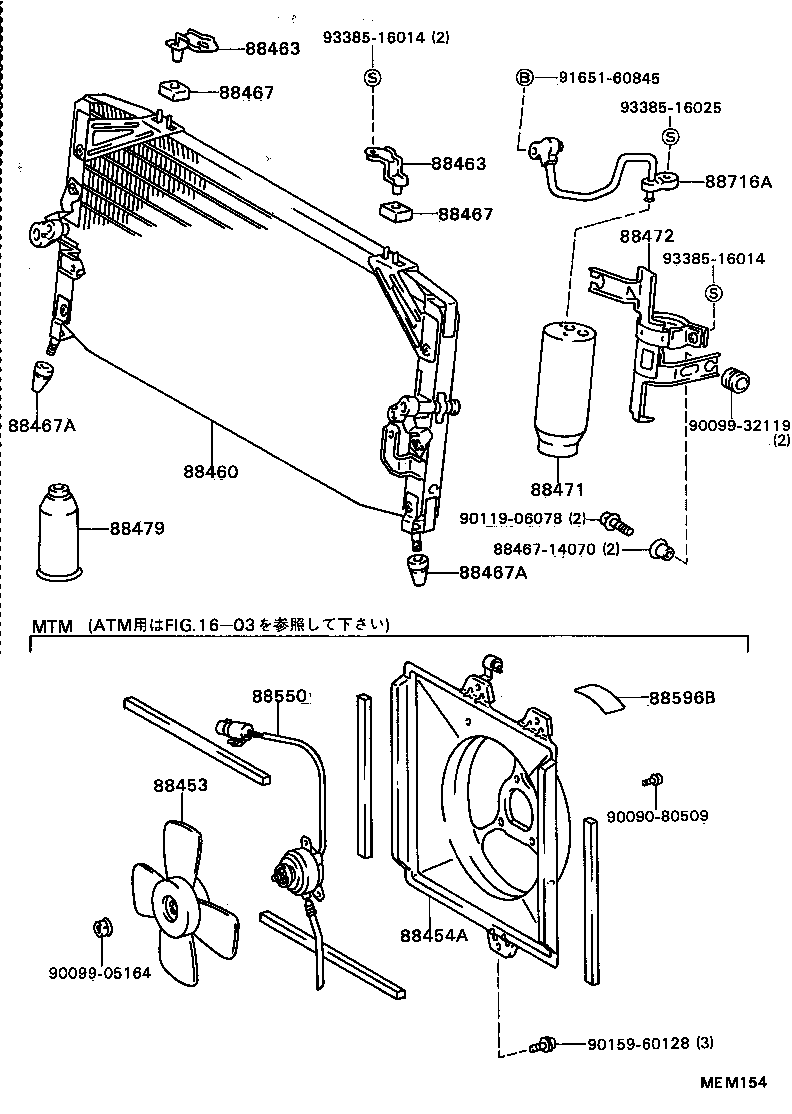

ILLUST NO. 1 OF 2(8808- )CV20

Click highlighted areas on diagram

diagram 88453 88454A 88460 88463 88463 88467 88467 8846714070 88467A 88467A 88471 88472 88479 88550 88596B 88716A 9009080509 9009905164 9009932119 9011906078 9015960128 9165160845 9338516014 9338516014 9338516025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-32080

CV20

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-32021

CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-32021

CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32030

CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32030

CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-32020

SV21,25;CV20..4FC;SV22..HT..VL;CV20..5F..(VL,XT);SV22..LUM,VE,VR,ZE

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-32020

SV21,25;CV20..4FC;SV22..HT..VL;CV20..5F..(VL,XT);SV22..LUM,VE,VR,ZE

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-10030

CV20,SV21,25;SV22..HT..5F;SV22..HT..4FC..VL;SV22..SED..5F..(LUM,VE,VR,ZE)

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-32020

CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE

400G

 2
90986-02001

SV21..GT;SV22..LUM,VE,VR,ZE;CV20,SV25..LUM,VE,VL,XT

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-32230

CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE

 1
Common parts
88467-14070
90090-80509
90099-05164
90099-32119
90119-06078
90159-60128
91651-60845
93385-16014
93385-16025

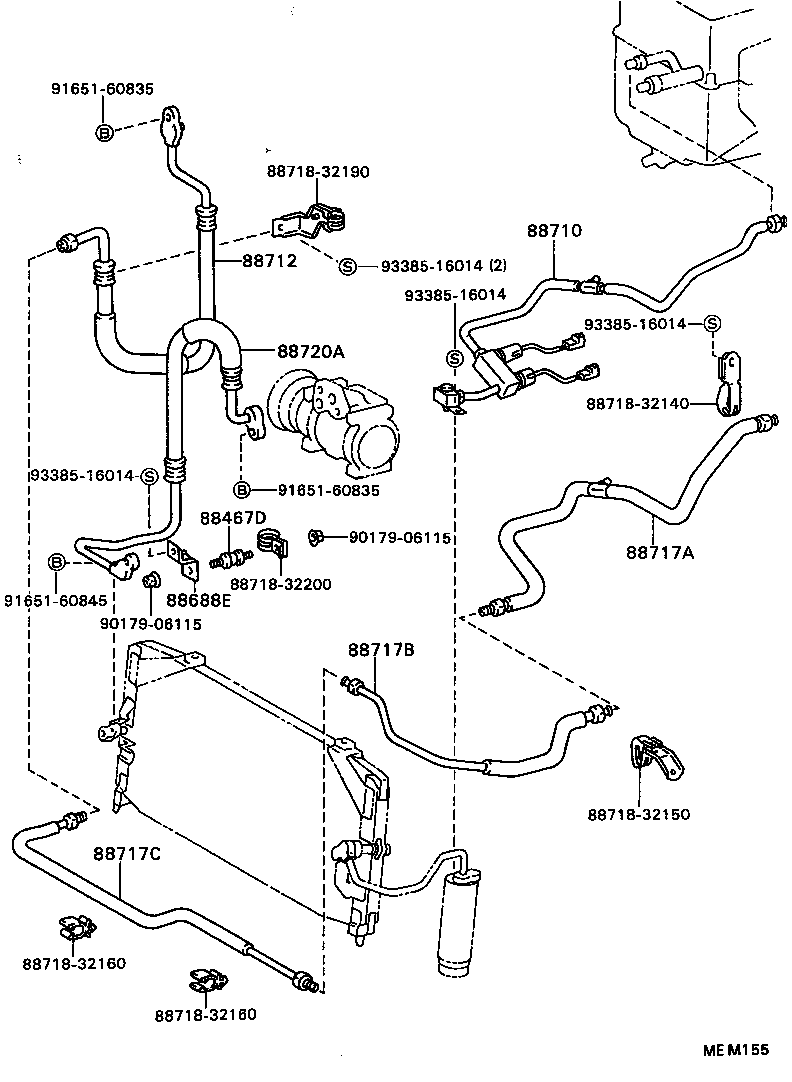

ILLUST NO. 2 OF 2(8808- )CV20

Click highlighted areas on diagram

diagram 88467D 88688E 88710 88712 88717A 88717B 88717C 8871832140 8871832150 8871832160 8871832160 8871832190 8871832200 88720A 9017906115 9017906115 9165160835 9165160835 9165160845 9338516014 9338516014 9338516014 9338516014
Part # Description Qty Price
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

CV20,SV21,25;SV22..HT..5F;SV22..HT..4FC..VL;SV22..SED..5F..(LUM,VE,VR,ZE)

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-32140

SV21,25;SV22..HT..VL;CV20..4FC..(VL,XT);CV20,SV22..LUM,VE,VR,ZE

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-32070

CV20

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-32120

CV20;SV21..GT

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-32330

CV20

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-32190

CV20,SV21,25;SV22..HT..VL;SV22..LUM,VE,VR,ZE

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-32200

SV21,25;CV20..4FC;SV22..HT..VL;CV20..5F..(VL,XT);SV22..LUM,VE,VR,ZE

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-32100

CV20..4FC;CV20..5F..(VL,XT)

 1
Common parts
88718-32140
88718-32150
88718-32160
88718-32190
88718-32200
90179-06115
91651-60835
91651-60845
93385-16014
