CV20-UEPNX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990

Engine 2CT

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )2CT

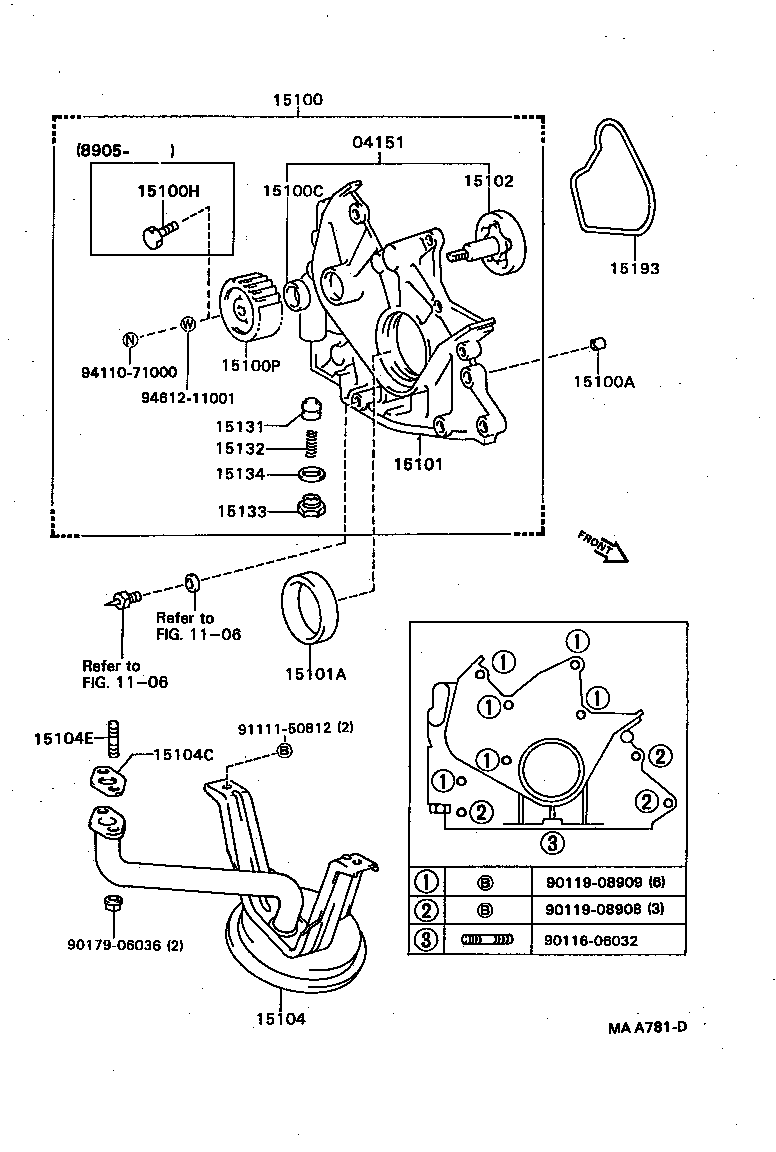

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
04151 - ROTOR KIT, OIL PUMP
04151-64020	2CT..CV20	05/1989 - 07/1990	1
15100 - PUMP ASSY, OIL
15100-64040	2CT..CV20	05/1989 - 07/1990	1
15100-64021	2CT..CV20	08/1988 - 05/1989	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021	2CT..CV20	08/1988 - 07/1990	2
15100C - SEAL(FOR OIL PUMP)
90029-21007	2CT..CV20	08/1988 - 05/1989	1
90029-21014	2CT..CV20	05/1989 - 07/1990	1
15100H - BOLT, SEAL
15189-55010	2CT..CV20	05/1989 - 07/1990	1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-64010	2CT..CV20	08/1988 - 05/1989	1
13524-64020	2CT..CV20	05/1989 - 07/1990	1
15101 - BODY SUB-ASSY, OIL PUMP
15101-64030	2CT..CV20	05/1989 - 07/1990	1
15101A - SEAL(FOR CRANKSHAFT)
90311-42015	2CT..CV20	08/1988 - 07/1990	1
15102 - ROTOR SET, OIL PUMP
15102-64040	2CT..CV20	05/1989 - 07/1990	1
15102-64021	2CT..CV20	08/1988 - 05/1989	1
15104 - STRAINER SUB-ASSY, OIL
15104-64021	2CT..CV20	08/1988 - 07/1990	1
15104C - GASKET(FOR OIL STRAINER)
15149-64010	2CT..CV20	08/1988 - 07/1990	1
15104E - BOLT, STUD(FOR OIL STRAINER)
90116-06032	2CT..CV20	08/1988 - 07/1990	1
15131 - VALVE, OIL PUMP RELIEF
15131-64020	2CT..CV20	08/1988 - 07/1990	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-64012	2CT..CV20	08/1988 - 07/1990	1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010	2CT..CV20	08/1988 - 07/1990	1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010	2CT..CV20	08/1988 - 07/1990	1
15193 - GASKET, OIL PUMP
15193-64021	2CT..CV20	08/1988 - 07/1990	1
Common parts
90116-06032
90119-08908
90119-08909
90179-06036
91111-50812
94110-71000
94612-11001
Linked diagrams
1106
