CV20-UEPMX (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )CV20,SV2#

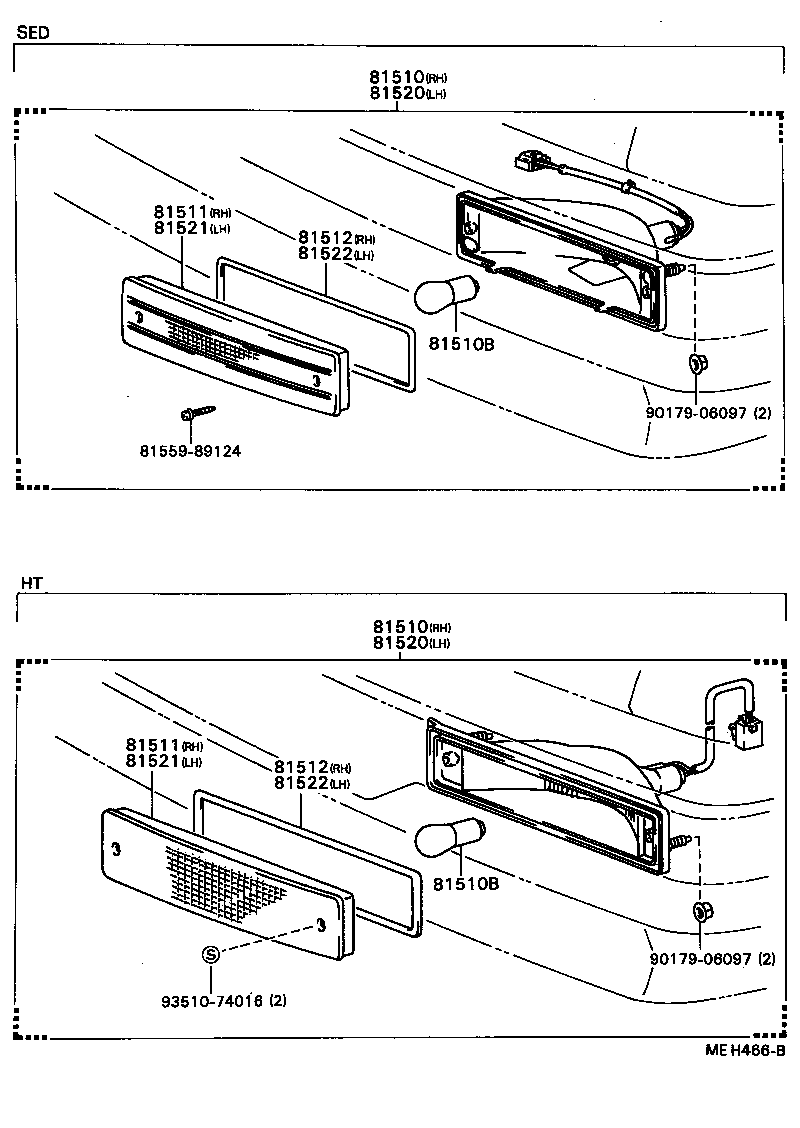

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 81520 81520 81521 81521 81522 81522 8155989124 9017906097 9017906097 9351074016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39605

CV20,SV2#..SED

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39605

CV20,SV2#..SED

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

CV20,SV2#

12V 23W,12V 23W

 2
99132-11230

CV20,SV2#

12V 23W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

CV20,SV2#

12V 23W,12V 23W

 2
99132-11230

CV20,SV2#

12V 23W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-32050

CV20,SV2#..SED

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-32050

CV20,SV2#..SED

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-32050

CV20,SV2#..SED

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-32050

CV20,SV2#..SED

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39605

CV20,SV2#..SED

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39605

CV20,SV2#..SED

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-32050

CV20,SV2#..SED

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-32050

CV20,SV2#..SED

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-32050

CV20,SV2#..SED

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-32050

CV20,SV2#..SED

 1
Common parts
81559-89124
90179-06097
93510-74016
