CV20-UEMNX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )VIS..SED

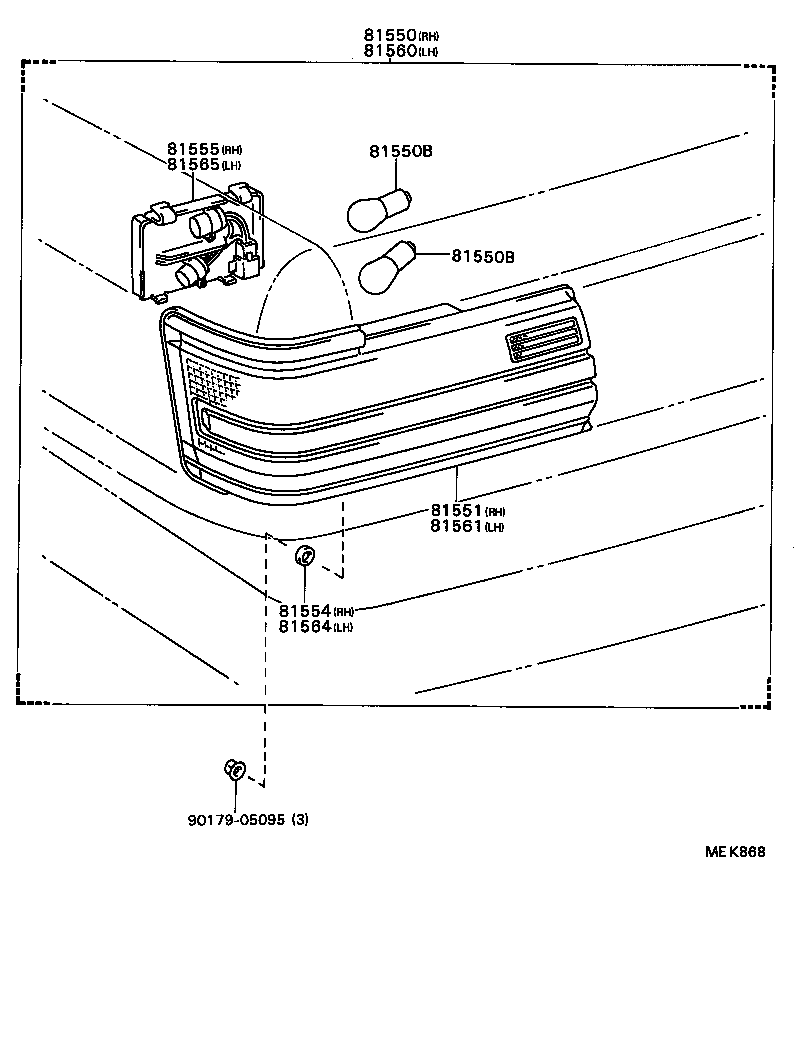

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-32152

CV20,SV2#..VIS..SED

 1
81550-32151

CV20,SV2#..VIS..SED

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CV20,SV2#,VZV20..SED

12V 21W

 2
99132-21210

CV20,SV2#,VZV20..SED

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CV20,SV2#,VZV20..SED

12V 21W

 2
99132-21210

CV20,SV2#,VZV20..SED

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-32152

CV20,SV2#..VIS..SED

 1
81551-32151

CV20,SV2#..VIS..SED

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-32150

CV20,SV2#..VIS..SED

 2
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-32151

CV20,SV2#..VIS..SED

 1
81555-32152

CV20,SV2#..VIS..SED

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-32152

CV20,SV2#..VIS..SED

 1
81560-32151

CV20,SV2#..VIS..SED

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-32152

CV20,SV2#..VIS..SED

 1
81561-32151

CV20,SV2#..VIS..SED

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-32150

CV20,SV2#..VIS..SED

 2
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-32151

CV20,SV2#..VIS..SED

 1
81565-32152

CV20,SV2#..VIS..SED

 1
Common parts
90179-05095
