CV20-UEMNX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CV20,SV2#..SED

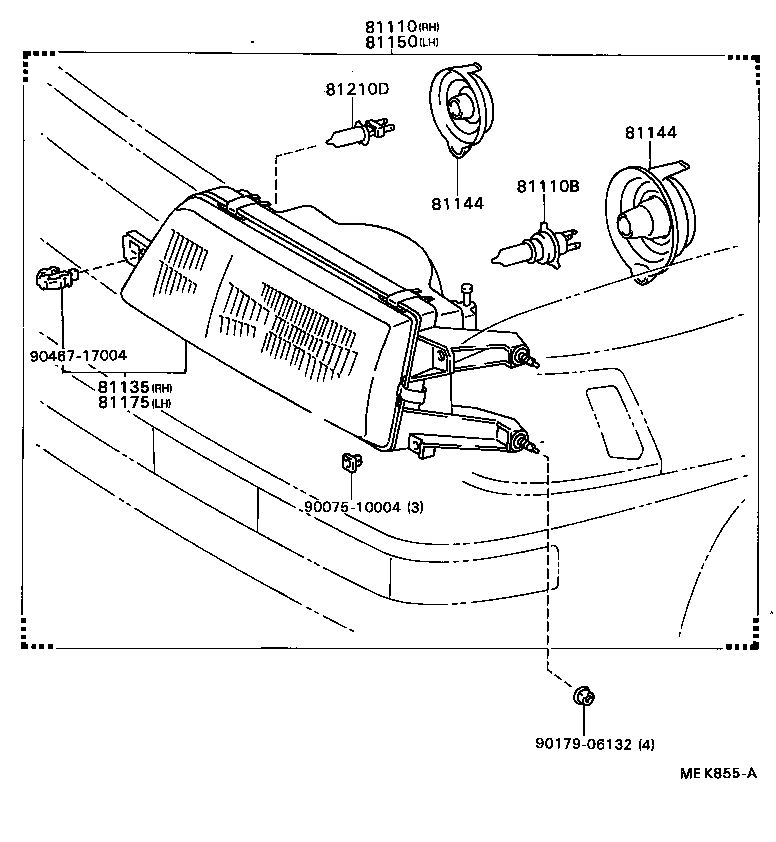

Click highlighted areas on diagram

diagram 81110 81110B 81135 81144 81144 81150 81175 81210D 9007510004 9017906132 9046717004
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-32151

CV20,SV2#..SED

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CV20,SV2#,VZV20

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-32151

CV20,SV2#..SED

 1
81144 - COVER, HEADLAMP, NO.1
90075-99002

CV20,SV2#,VZV20..SED

FOG LAMP

 2
81139-20730

CV20,SV2#,VZV20..SED

HEADLAMP

 2
81144 - COVER, HEADLAMP, NO.1
90075-99002

CV20,SV2#,VZV20..SED

FOG LAMP

 2
81139-20730

CV20,SV2#,VZV20..SED

HEADLAMP

 2
81150 - HEADLAMP ASSY, LH
81150-32151

CV20,SV2#..SED

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-32151

CV20,SV2#..SED

 1
81210D - BULB, FOG LAMP
90981-13031

CV20,SV2#,VZV20..SED

12V 55W,ﾊﾛｹﾞﾝ

 2
Common parts
90075-10004
90179-06132
90467-17004
