CV20-UEMMX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

Click highlighted areas on diagram

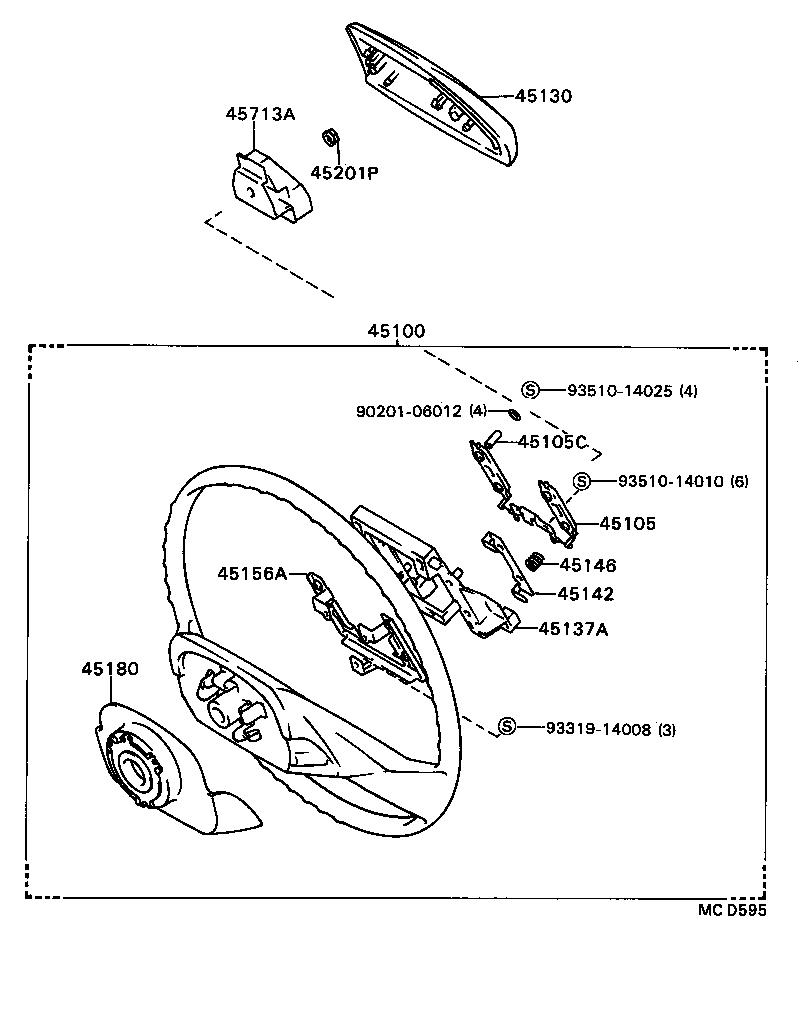

diagram 45100 45105 45105C 45130 45137A 45142 45146 45156A 45180 45201P 45713A 9020106012 9331914008 9351014010 9351014025
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3213003

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX

MEDIUM GRAY,TRIM1#

 1
45100-3213004

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX

DARK BLUE,TRIM8#

 1
45100-3213002

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX

MAROON,TRIM3#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-32070

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

 1
45105C - COLLAR(FOR HORN BUTTON CONTACT PLATE)
90387-04005

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

 4
45130 - BUTTON ASSY, HORN
45130-3218004

SV22..VE,VR;SV22..HT..VL;CV20,SV21,25..VE,VL,VR,VX

DARK BLUE,TRIM8#

 1
45130-3218002

SV22..VE,VR;SV22..HT..VL;CV20,SV21,25..VE,VL,VR,VX

MAROON,TRIM3#

 1
45130-3218003

SV22..VE,VR;SV22..HT..VL;CV20,SV21,25..VE,VL,VR,VX

MEDIUM GRAY,TRIM1#

 1
45137A - PLATE, HORN BUTTON CONTACT, NO.2
45137-32040

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-32050

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-20140

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

 4
45156A - SEAT, HORN CONTACT SPRING SET
45156-32010

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-3207004

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

DARK BLUE,TRIM8#

 1
45180-3207002

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

MAROON,TRIM3#

 1
45180-3207003

SV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20..LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX

MEDIUM GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CV20,SV2#,VZV20

 1
45713A - DAMPER, STEERING SHAKE
45713-32020

CV20;SV21,25..4FC;SV22..HT..4FC..VL;SV22..4FC..(LUM,VE,VR,ZE)

 1
Common parts
90201-06012
93319-14008
93510-14010
93510-14025
