CV20-UEMMX (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )2CT

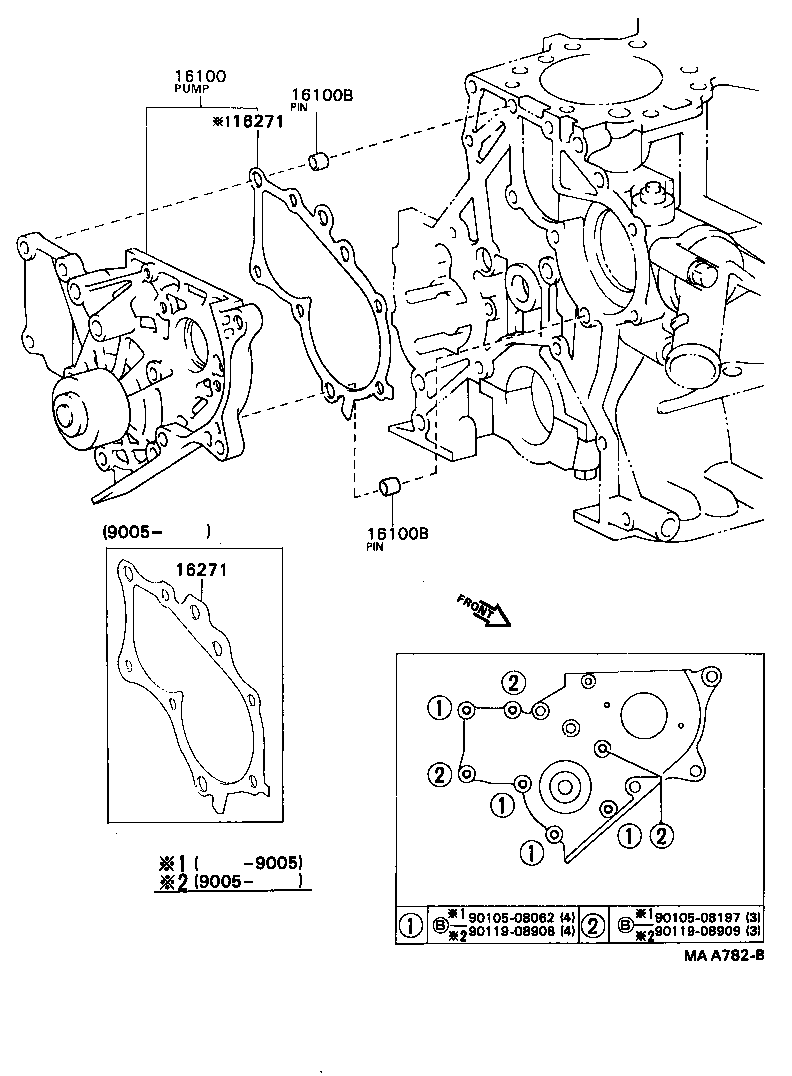

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-69275 |
2CT..CV20 |
1 | ||
| 16100-69085 |
2CT..CV20 |
1 | ||
| 16100-69295 |
2CT..CV20 |
1 | ||
| 16100B - PIN, RING(FOR WATER PUMP SET) | ||||
| 90253-11021 |
2CT..CV20 |
2 | ||
| 16100B - PIN, RING(FOR WATER PUMP SET) | ||||
| 90253-11021 |
2CT..CV20 |
2 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-64010 |
2CT..CV20 |
1 | ||
| 16271-64020 |
2CT..CV20 |
1 | ||
| 16271-64030 |
2CT..CV20 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-64010 |
2CT..CV20 |
1 | ||
| 16271-64020 |
2CT..CV20 |
1 | ||
| 16271-64030 |
2CT..CV20 |
1 | ||
| Common parts | ||||
| 90105-08062 | ||||
| 90105-08197 | ||||
| 90119-08908 | ||||
| 90119-08909 | ||||
