CV20-JEPNX (1986)
Toyota Camry/Vista
(8608- )4FC..VE,VL,VR,VX,XT,ZE,ZT,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55539-2002005 |
CV20,SV2# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55539-2002005 |
CV20,SV2# BEIGE,BEIGE,TRIM4# |
2 | ||
| 55539-2002022 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 55539-2002034 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 55539-2002022 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
2 | ||
| 55539-2002034 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55539-2002034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55539-2002005 |
CV20,SV2# BEIGE,TRIM4# |
1 | ||
| 55539-2002022 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2003012 |
CV20,SV20,25;SV21,VZV20..5F MAROON,TRIM3# |
1 | ||
| 55539-2003005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55539-2003012 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 55539-2003014 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55539-2003005 |
SV21..5F;CV20,SV20,25 DARK BEIGE,TRIM4# |
1 | ||
| 55539-2003014 |
CV20,SV20,25;SV21,VZV20..5F DARK BLUE,TRIM8# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-3204004 |
CV20,SV2#..4FC..(VE,VL,VR,XT,ZE,ZT) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58804-3204002 |
CV20,SV2#..4FC..(VE,VL,VR,XT,ZE,ZT) MAROON,MAROON,TRIM3# |
1 | ||
| 58804-3204005 |
CV20,SV2#..4FC..(VE,VL,VR,XT,ZE,ZT) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58804-3204002 |
CV20,SV20,21..4FC..(VE,VL,VR,XT,ZE,ZT) MAROON,TRIM3# |
1 | ||
| 58804-3204005 |
CV20,SV20,21..4FC..(VE,VL,VR,XT,ZE,ZT) DARK BEIGE,TRIM4# |
1 | ||
| 58804-3204004 |
CV20,SV20,21..4FC..(VE,VL,VR,XT,ZE,ZT) DARK BLUE,TRIM8# |
1 | ||
| 58805B - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-3203002 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,MAROON,TRIM3# |
1 | ||
| 58805-3203005 |
CV20,SV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58805-3203004 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58805-3203004 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58805-3203005 |
CV20,SV20,21..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BEIGE,TRIM4# |
1 | ||
| 58805-3203002 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,TRIM3# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-3205005 |
CV20,SV2# DARK BEIGE,TRIM4# |
1 | ||
| 58811-3205005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58811-3205002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 58811-3205004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 58811-3205002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 58811-3205004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-32010 |
CV20,SV20,25..LT,VC,VL,XT |
1 | ||
| 58833-32010 |
CV20,SV20..LT,VC,VL,XT |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-3202002 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,MAROON,TRIM3# |
1 | ||
| 58839-3202005 |
CV20,SV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58839-3202004 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58839-3202002 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,TRIM3# |
1 | ||
| 58839-3202004 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58839-3202005 |
CV20,SV20,21..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BEIGE,TRIM4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-3202002 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,TRIM3# |
1 | ||
| 58901-3202004 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 58901-3202005 |
CV20,SV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58901-3202005 |
CV20,SV20,21..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BEIGE,TRIM4# |
1 | ||
| 58901-3202004 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58901-3202002 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,MAROON,TRIM3# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 58916-32040 |
CV20,SV20,21,VZV20 |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 58964-30030 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 58969-20010 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 58976-22020 |
SV21..5F..(VE,ZT);SV21..4FC..(VE,VX,ZT,ZX);SV20,VZV20..4FC..(PRO,VR,ZE);CV20,SV20,25..LT,VC,VE,VL,XT,ZT |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90161-26008 | ||||
| 90176-04015 | ||||
| 90254-03007 | ||||
| 90541-06021 | ||||
| 93566-54514 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||

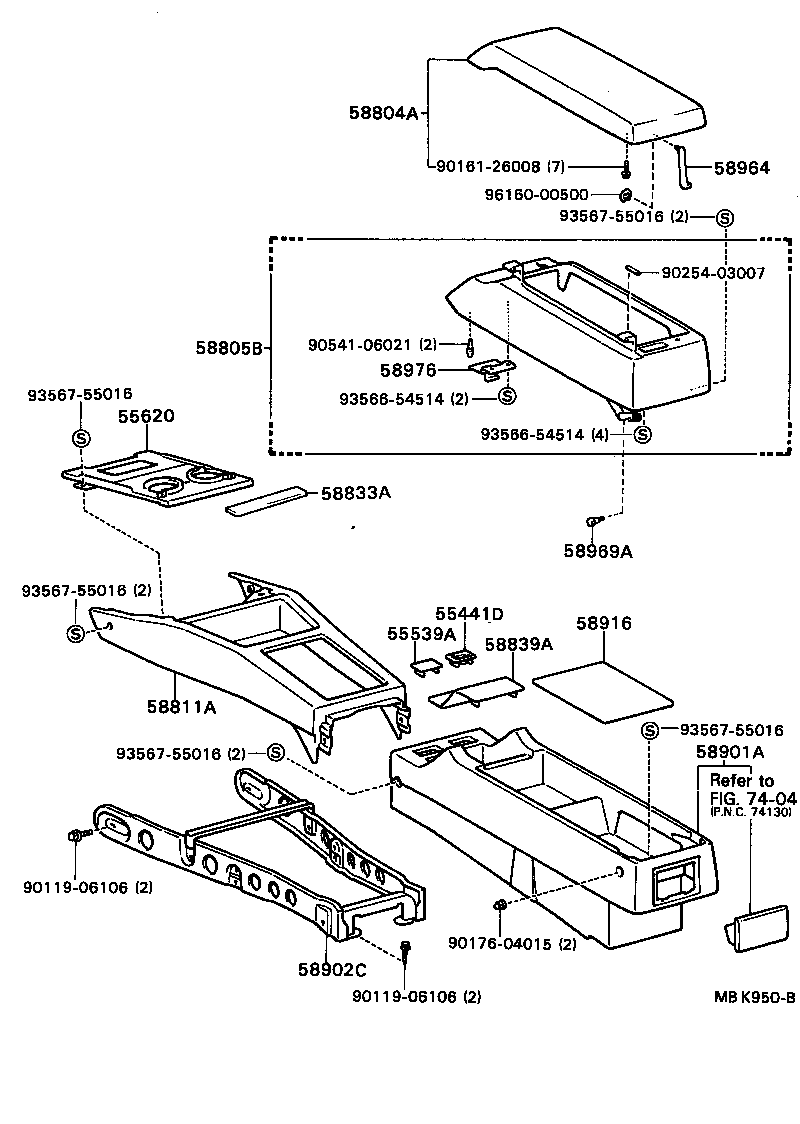

| Linked diagrams | ||||
| 7404 | ||||
