CV20-JEPMX (1986)
Toyota Camry/Vista
Production
Aug 1986
-
Aug 1988
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )CV20

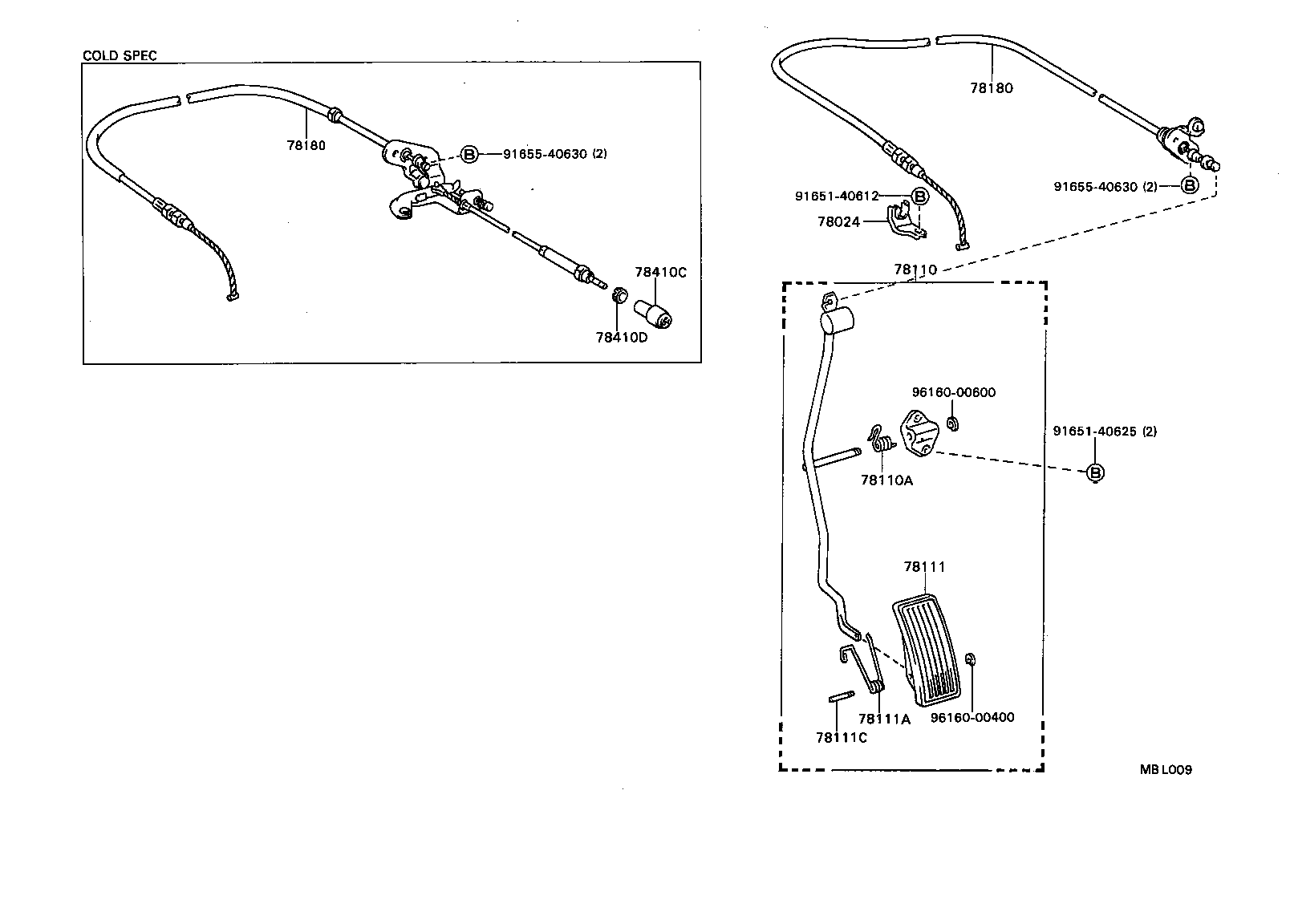

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-32040 |
CV20 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-32070 |
CV20,SV21,VZV20..4FC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
CV20,SV21,VZV20..4FC |
1 | ||
| 90508-18025 |
SV20;CV20,SV21,VZV20..4FC |
1 | ||
| 90508-18025 |
SV20;CV20,SV21,VZV20..4FC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
CV20,SV2#,VZV20 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
CV20,SV2#,VZV20 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
CV20,SV2#,VZV20 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-32100 |
CV20 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-32100 |
CV20 |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40625 | ||||
| 91655-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
