CV20-JEMNX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2CT

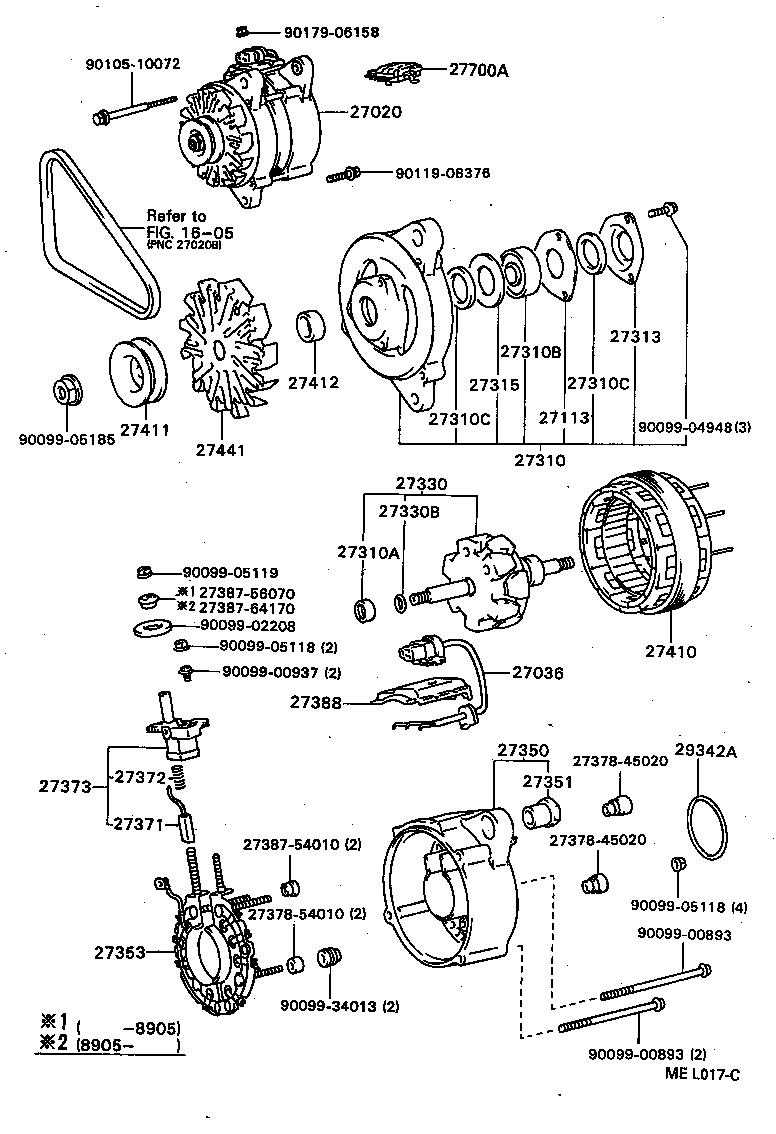

Click highlighted areas on diagram

12V 60A

diagram 1605 27020 27036 27113 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27351 27353 27371 27372 27373 2737845020 2737845020 2737854010 2738754010 2738756070 2738764170 27388 27410 27411 27412 27441 27700A 29342A 9009900893 9009900893 9009900937 9009902208 9009904948 9009905118 9009905118 9009905119 9009905185 9009934013 9010510072 9011908376 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-64180

2CT..CV20..5F

12V 60A

 1
27020-64210

2CT..CV20

12V 60A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-64170

2CT..CV20

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

2CT..CV20

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64060

2CT..CV20

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27333-57060

2CT..CV20

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

2CT..CV20

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

2CT..CV20

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

2CT..CV20

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

2CT..CV20

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

2CT..CV20

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64170

2CT..CV20

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

2CT..CV20

 1
27350 - FRAME ASSY, RECTIFIER END
27350-64060

2CT..CV20

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-64060

2CT..CV20

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-64170

2CT..CV20

 1
27353-64180

2CT..CV20

 1
27371 - BRUSH, ALTERNATOR
27371-56070

2CT..CV20

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

2CT..CV20

 2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-64170

2CT..CV20

 1
27388 - COVER, ALTERNATOR BRUSH
27388-64170

2CT..CV20

 1
27410 - STATOR ASSY, ALTERNATOR
27410-43040

2CT..CV20

 1
27411 - PULLEY, ALTERNATOR
27411-64210

2CT..CV20

 1
27411-64060

2CT..CV20..5F

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-64060

2CT..CV20

 1
27441 - FAN, ALTERNATOR
27441-64060

2CT..CV20

 1
27700A - REGULATOR ASSY, GENERATOR
27700-64040

2CT..CV20

 1
29342A - PACKING, VACUUM PUMP
90099-14055

2CT..CV20

 1
Common parts
27378-45020
27378-54010
27387-54010
27387-56070
27387-64170
90099-00893
90099-00937
90099-02208
90099-04948
90099-05118
90099-05119
90099-05185
90099-34013
90105-10072
90119-08376
90179-06158
Linked diagrams
1605
