CV20-JEMMX (1986)
Toyota Camry/Vista

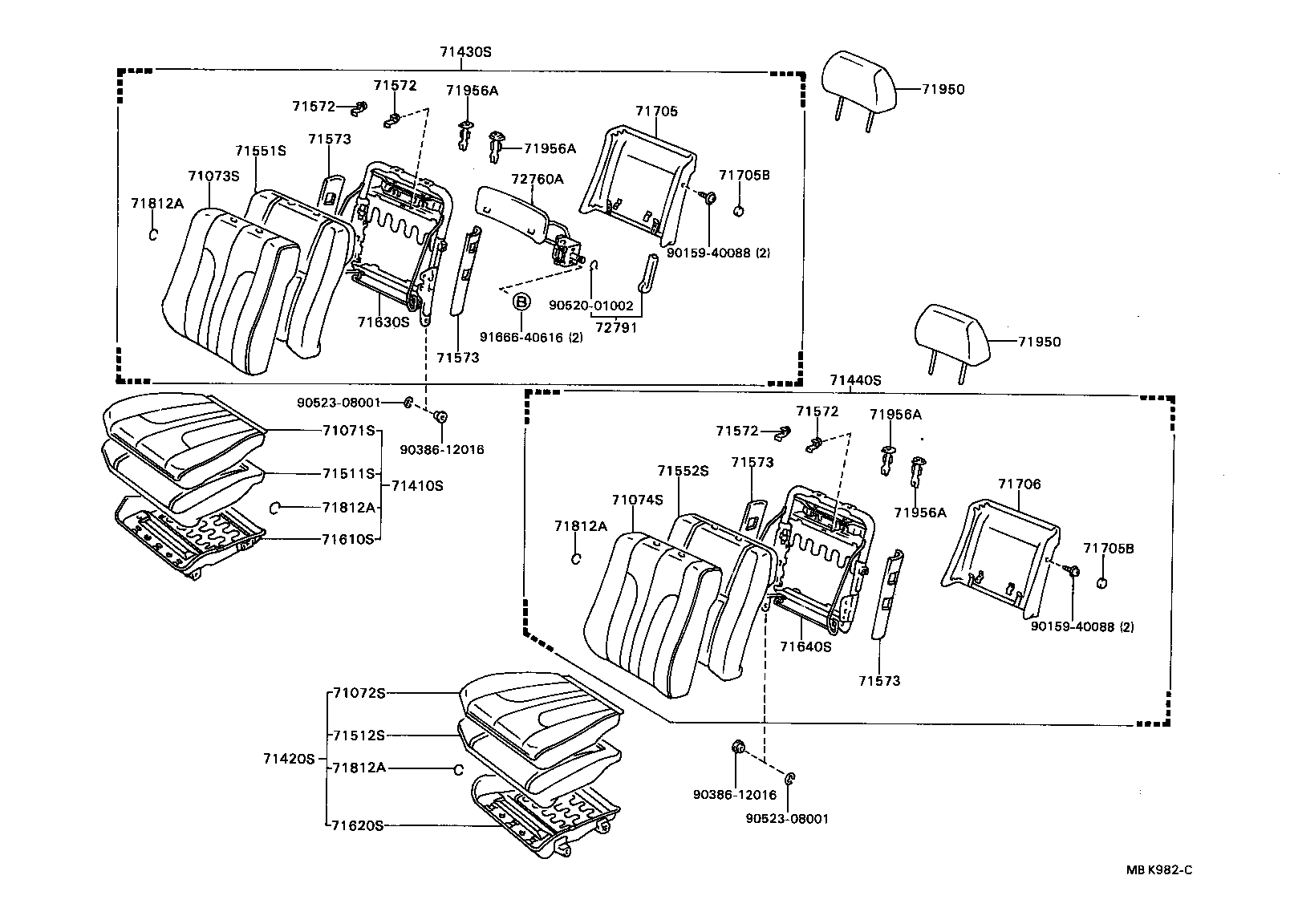

ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3232005 |
CV20,SV2#..VE,ZT FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71071-3232002 |
CV20,SV2#..VE,ZT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-3232004 |
CV20,SV2#..VE,ZT FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71071-3232002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 71071-3232005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71071-3232004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71071-3262002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3230002 |
CV20,SV2#..VE,ZT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-3230004 |
CV20,SV2#..VE,ZT FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71072-3230005 |
CV20,SV2#..VE,ZT FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71072-3230005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71072-3230002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 71072-3230004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71072-3259002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3230005 |
CV20,SV2#..VE,ZT FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71073-3230004 |
CV20,SV2#..VE,ZT FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71073-3230002 |
CV20,SV2#..VE,ZT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-3230002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 71073-3230005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71073-3230004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71073-3225002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3207004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71074-3207005 |
CV20,SV2#..VE,ZT FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71074-3207002 |
CV20,SV2#..VE,ZT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-3207004 |
CV20,SV2#..VE,ZT FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71074-3207005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71074-3207002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 71074-3220002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3232002 |
CV20,SV2#..VE,ZT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71410-3232005 |
CV20,SV2#..VE,ZT FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71410-3232004 |
CV20,SV2#..VE,ZT FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71410-3232004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71410-3232005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71410-3232002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 71410-3261002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3227004 |
CV20,SV2#..VE,ZT FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71420-3227002 |
CV20,SV2#..VE,ZT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71420-3227005 |
CV20,SV2#..VE,ZT FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71420-3227005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71420-3227002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 71420-3227004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71420-3257002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3233002 |
CV20,SV2#..VE,ZT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71430-3233004 |
CV20,SV2#..VE,ZT FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71430-3233005 |
CV20,SV2#..VE,ZT FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71430-3233004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71430-3233002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 71430-3233005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71430-3247002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3220005 |
CV20,SV2#..VE,ZT FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71440-3220002 |
CV20,SV2#..VE,ZT FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71440-3220004 |
CV20,SV2#..VE,ZT FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71440-3220002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 71440-3220004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71440-3220005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71440-3235002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32080 |
CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 71511-32080 |
CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32130 |
CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 71511-32130 |
CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32080 |
CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 71551-32080 |
CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32080 |
CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 71551-32080 |
CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
CV20,SV2#,VZV20 |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
CV20,SV2#,VZV20 |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
CV20,SV2#,VZV20 |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
CV20,SV2#,VZV20 |
4 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71583-32030 |
CV20,SV2#,VZV20 |
4 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71583-32030 |
CV20,SV2#,VZV20 |
4 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71583-32030 |
CV20,SV2#,VZV20 |
4 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71583-32030 |
CV20,SV2#,VZV20 |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32040 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 71610-32040 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32080 |
CV20,SV2#..VE,ZT |
1 | ||
| 71630-32080 |
CV20,SV20,21..VE,ZT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-32040 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 71640-32040 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3211004 |
CV20,SV2#..GT,VE,ZT BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71705-3211005 |
CV20,SV2#..GT,VE,ZT BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71705-3211004 |
CV20,SV20,21..GT,VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71705-3211002 |
CV20,SV2#..GT,VE,ZT MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3211002 |
CV20,SV20,21..GT,VE,ZT MAROON,TRIM3# |
1 | ||
| 71705-3211005 |
CV20,SV20,21..GT,VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000124 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90339-1000145 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000145 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000122 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,TRIM3# |
4 | ||
| 90339-1000122 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MAROON,TRIM3# |
4 | ||
| 90339-1000124 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX DARK BLUE,TRIM8# |
4 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000124 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90339-1000145 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000145 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX DARK BEIGE,TRIM4# |
4 | ||
| 90339-1000122 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,TRIM3# |
4 | ||
| 90339-1000122 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MAROON,TRIM3# |
4 | ||
| 90339-1000124 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX DARK BLUE,TRIM8# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3211002 |
CV20,SV2#..GT,VE,ZT MAROON,MAROON,TRIM3# |
1 | ||
| 71705-3211005 |
CV20,SV2#..GT,VE,ZT BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71705-3211004 |
CV20,SV2#..GT,VE,ZT BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71705-3211004 |
CV20,SV20,21..GT,VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 71705-3211005 |
CV20,SV20,21..GT,VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 71705-3211002 |
CV20,SV20,21..GT,VE,ZT MAROON,TRIM3# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV20,SV2#,VZV20 |
33 | ||
| 90468-18071 |
CV20,SV2#,VZV20 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV20,SV2#,VZV20 |
33 | ||
| 90468-18071 |
CV20,SV2#,VZV20 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV20,SV2#,VZV20 |
33 | ||
| 90468-18071 |
CV20,SV2#,VZV20 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV20,SV2#,VZV20 |
33 | ||
| 90468-18071 |
CV20,SV2#,VZV20 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3222004 |
CV20,SV2#..VE,ZT BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71910-3222005 |
CV20,SV2#..VE,ZT BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71910-3222002 |
CV20,SV2#..VE,ZT MAROON,MAROON,TRIM3# |
2 | ||
| 71910-3222005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
2 | ||
| 71910-3222004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
2 | ||
| 71910-3222002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
2 | ||
| 71910-3240002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3222004 |
CV20,SV2#..VE,ZT BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71910-3222005 |
CV20,SV2#..VE,ZT BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71910-3222002 |
CV20,SV2#..VE,ZT MAROON,MAROON,TRIM3# |
2 | ||
| 71910-3222005 |
CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
2 | ||
| 71910-3222004 |
CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
2 | ||
| 71910-3222002 |
CV20,SV20,21..VE,ZT MAROON,TRIM3# |
2 | ||
| 71910-3240002 |
CV20,SV20,21..ZT ﾙﾐｴ-ﾙ,MAROON,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
CV20,SV2#,VZV20 ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
CV20,SV2#,VZV20 ﾛｯｸ無,W/O LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71930-1006010 |
CV20,SV2# ﾛｯｸ付,W/LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
CV20,SV2#,VZV20 ﾛｯｸ付,W/LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
CV20,SV2#,VZV20 ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
CV20,SV2# ﾛｯｸ無,W/O LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71931-1001042 |
CV20,SV2#,VZV20 ﾛｯｸ無,MAROON,TRIM3# |
2 | ||
| 71930-1006010 |
CV20,SV2# ﾛｯｸ付,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
CV20,SV2#,VZV20 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001054 |
CV20,SV2#,VZV20 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
CV20,SV2#,VZV20 ﾛｯｸ付,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
CV20,SV2# ﾛｯｸ無,DARK BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
CV20,SV2#,VZV20 ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
CV20,SV2#,VZV20 ﾛｯｸ無,W/O LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71930-1006010 |
CV20,SV2# ﾛｯｸ付,W/LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
CV20,SV2#,VZV20 ﾛｯｸ付,W/LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
CV20,SV2#,VZV20 ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
CV20,SV2# ﾛｯｸ無,W/O LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71931-1001042 |
CV20,SV2#,VZV20 ﾛｯｸ無,MAROON,TRIM3# |
2 | ||
| 71930-1006010 |
CV20,SV2# ﾛｯｸ付,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
CV20,SV2#,VZV20 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001054 |
CV20,SV2#,VZV20 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
CV20,SV2#,VZV20 ﾛｯｸ付,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
CV20,SV2# ﾛｯｸ無,DARK BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
CV20,SV2#,VZV20 ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
CV20,SV2#,VZV20 ﾛｯｸ無,W/O LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71930-1006010 |
CV20,SV2# ﾛｯｸ付,W/LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
CV20,SV2#,VZV20 ﾛｯｸ付,W/LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
CV20,SV2#,VZV20 ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
CV20,SV2# ﾛｯｸ無,W/O LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71931-1001042 |
CV20,SV2#,VZV20 ﾛｯｸ無,MAROON,TRIM3# |
2 | ||
| 71930-1006010 |
CV20,SV2# ﾛｯｸ付,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
CV20,SV2#,VZV20 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001054 |
CV20,SV2#,VZV20 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
CV20,SV2#,VZV20 ﾛｯｸ付,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
CV20,SV2# ﾛｯｸ無,DARK BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006042 |
CV20,SV2#,VZV20 ﾛｯｸ付,W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
CV20,SV2#,VZV20 ﾛｯｸ無,W/O LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71930-1006010 |
CV20,SV2# ﾛｯｸ付,W/LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
CV20,SV2#,VZV20 ﾛｯｸ付,W/LOCK,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
CV20,SV2#,VZV20 ﾛｯｸ無,W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
CV20,SV2# ﾛｯｸ無,W/O LOCK,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 71931-1001042 |
CV20,SV2#,VZV20 ﾛｯｸ無,MAROON,TRIM3# |
2 | ||
| 71930-1006010 |
CV20,SV2# ﾛｯｸ付,DARK BEIGE,TRIM4# |
2 | ||
| 71930-1006054 |
CV20,SV2#,VZV20 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1001054 |
CV20,SV2#,VZV20 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
CV20,SV2#,VZV20 ﾛｯｸ付,MAROON,TRIM3# |
2 | ||
| 71931-1001010 |
CV20,SV2# ﾛｯｸ無,DARK BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91666-40616 | ||||

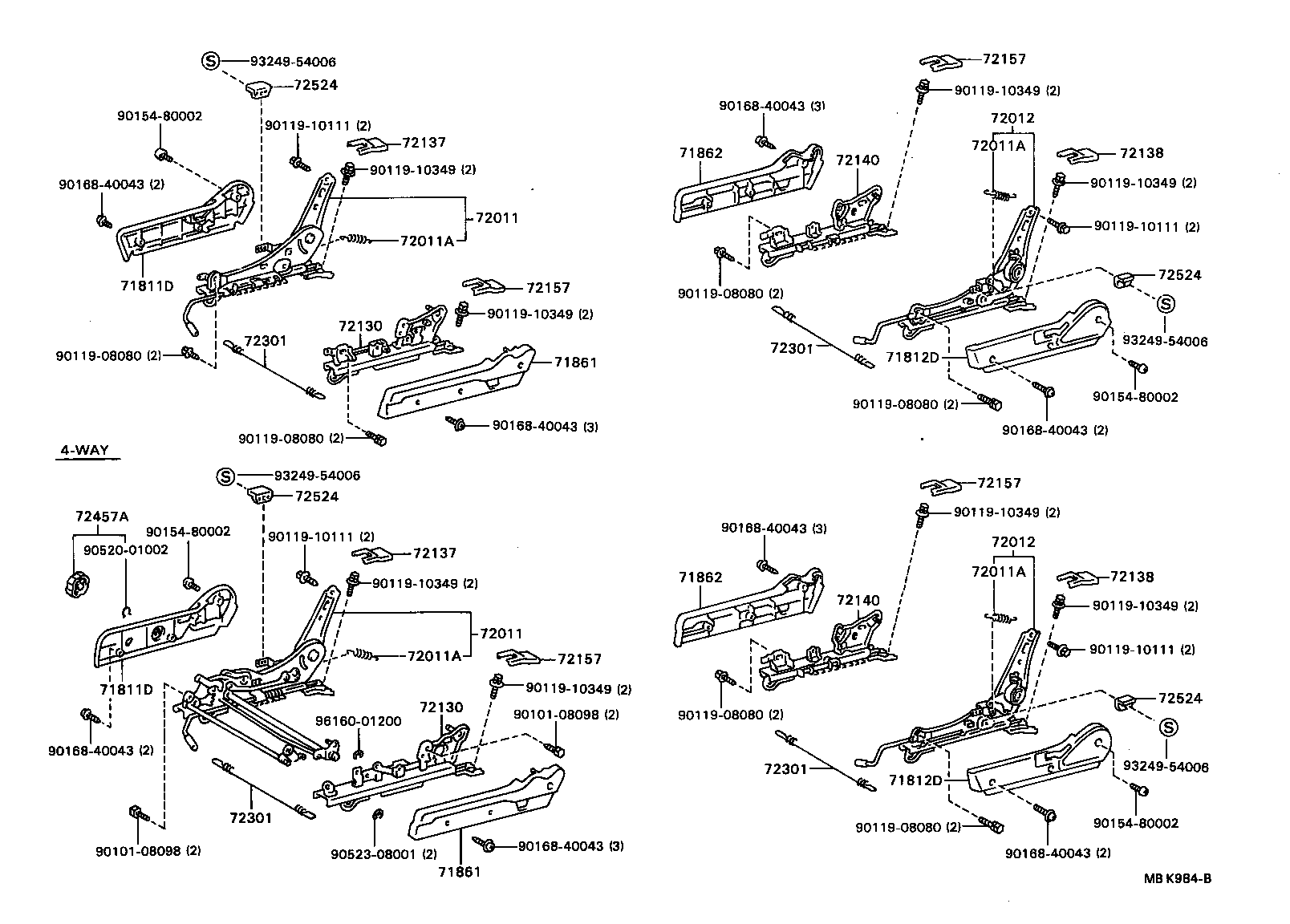

ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3205004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX DARK BLUE,TRIM8# |
1 | ||
| 71811-3205005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX DARK BEIGE,TRIM4# |
1 | ||
| 71811-3205005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71811-3205004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71811-3205002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,TRIM3# |
1 | ||
| 71811-3205002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MAROON,TRIM3# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3205004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX DARK BLUE,TRIM8# |
1 | ||
| 71811-3205005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX DARK BEIGE,TRIM4# |
1 | ||
| 71811-3205005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71811-3205004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71811-3205002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,TRIM3# |
1 | ||
| 71811-3205002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MAROON,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71812-3203005 |
CV20,SV2# DARK BEIGE,TRIM4# |
1 | ||
| 71812-3203005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71812-3203002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 71812-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71812-3203004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71812-3203005 |
CV20,SV2# DARK BEIGE,TRIM4# |
1 | ||
| 71812-3203005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71812-3203002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 71812-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71812-3203004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3203005 |
CV20,SV2# DARK BEIGE,TRIM4# |
1 | ||
| 71861-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71861-3203002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 71861-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71861-3203005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71861-3203004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3203005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71861-3203005 |
CV20,SV2# DARK BEIGE,TRIM4# |
1 | ||
| 71861-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71861-3203002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 71861-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71861-3203004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3202002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71862-3202004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71862-3202005 |
CV20,SV2# DARK BEIGE,TRIM4# |
1 | ||
| 71862-3202005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71862-3202004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71862-3202002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3202002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71862-3202004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71862-3202005 |
CV20,SV2# DARK BEIGE,TRIM4# |
1 | ||
| 71862-3202005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71862-3202004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71862-3202002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-32030 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 72010-32030 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-32030 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 72010-32030 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
CV20,SV2#,VZV20 |
1 | ||
| 90506-20045 |
CV20,SV2#,VZV20 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
CV20,SV2#,VZV20 |
1 | ||
| 90506-20045 |
CV20,SV2#,VZV20 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
CV20,SV2#,VZV20 |
1 | ||
| 90506-20045 |
CV20,SV2#,VZV20 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
CV20,SV2#,VZV20 |
1 | ||
| 90506-20045 |
CV20,SV2#,VZV20 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 72130-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 72130-32020 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3202002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3202005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-3202004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3202002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 72137-3202005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-3202004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-3202004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72137-3202005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-3202002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-3202004 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72137-3202005 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-3202002 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-3201002 |
CV20,SV2#,VZV20 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3201004 |
CV20,SV2#,VZV20 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72158-3201005 |
CV20,SV2# LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72157-3201002 |
CV20,SV2#,VZV20 MAROON,TRIM3#,右側 |
1 | ||
| 72158-3201005 |
CV20,SV2# DARK BEIGE,TRIM4#,左側 |
1 | ||
| 72158-3201002 |
CV20,SV2#,VZV20 MAROON,TRIM3#,左側 |
1 | ||
| 72158-3201002 |
CV20,SV2#,VZV20 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72157-3201005 |
CV20,SV2# RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72158-3201004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,左側 |
1 | ||
| 72157-3201005 |
CV20,SV2# DARK BEIGE,TRIM4#,右側 |
1 | ||
| 72157-3201004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,右側 |
1 | ||
| 72157-3201004 |
CV20,SV2#,VZV20 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-3201002 |
CV20,SV2#,VZV20 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3201004 |
CV20,SV2#,VZV20 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72158-3201005 |
CV20,SV2# LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72157-3201002 |
CV20,SV2#,VZV20 MAROON,TRIM3#,右側 |
1 | ||
| 72158-3201005 |
CV20,SV2# DARK BEIGE,TRIM4#,左側 |
1 | ||
| 72158-3201002 |
CV20,SV2#,VZV20 MAROON,TRIM3#,左側 |
1 | ||
| 72158-3201002 |
CV20,SV2#,VZV20 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72157-3201005 |
CV20,SV2# RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72158-3201004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,左側 |
1 | ||
| 72157-3201005 |
CV20,SV2# DARK BEIGE,TRIM4#,右側 |
1 | ||
| 72157-3201004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,右側 |
1 | ||
| 72157-3201004 |
CV20,SV2#,VZV20 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-3201002 |
CV20,SV2#,VZV20 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3201004 |
CV20,SV2#,VZV20 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72158-3201005 |
CV20,SV2# LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72157-3201002 |
CV20,SV2#,VZV20 MAROON,TRIM3#,右側 |
1 | ||
| 72158-3201005 |
CV20,SV2# DARK BEIGE,TRIM4#,左側 |
1 | ||
| 72158-3201002 |
CV20,SV2#,VZV20 MAROON,TRIM3#,左側 |
1 | ||
| 72158-3201002 |
CV20,SV2#,VZV20 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72157-3201005 |
CV20,SV2# RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72158-3201004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,左側 |
1 | ||
| 72157-3201005 |
CV20,SV2# DARK BEIGE,TRIM4#,右側 |
1 | ||
| 72157-3201004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,右側 |
1 | ||
| 72157-3201004 |
CV20,SV2#,VZV20 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-3201002 |
CV20,SV2#,VZV20 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72158-3201004 |
CV20,SV2#,VZV20 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72158-3201005 |
CV20,SV2# LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72157-3201002 |
CV20,SV2#,VZV20 MAROON,TRIM3#,右側 |
1 | ||
| 72158-3201005 |
CV20,SV2# DARK BEIGE,TRIM4#,左側 |
1 | ||
| 72158-3201002 |
CV20,SV2#,VZV20 MAROON,TRIM3#,左側 |
1 | ||
| 72158-3201002 |
CV20,SV2#,VZV20 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72157-3201005 |
CV20,SV2# RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72158-3201004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,左側 |
1 | ||
| 72157-3201005 |
CV20,SV2# DARK BEIGE,TRIM4#,右側 |
1 | ||
| 72157-3201004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,右側 |
1 | ||
| 72157-3201004 |
CV20,SV2#,VZV20 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 72301-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 72301-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 72301-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 72301-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-2201015 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX DARK BEIGE,TRIM4# |
2 | ||
| 72457-2201004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
2 | ||
| 72457-2201004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX DARK BLUE,TRIM8# |
2 | ||
| 72457-2201002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX RED,TRIM3# |
2 | ||
| 72457-2201015 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 72457-2201002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,RED,TRIM3# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209012 |
CV20,SV2#,VZV20 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-1209012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72526-1203025 |
CV20,SV2# LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
CV20,SV2# RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209025 |
CV20,SV2# RH,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 LH,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-1203025 |
CV20,SV2# LH,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 LH,MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209012 |
CV20,SV2#,VZV20 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-1209012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72526-1203025 |
CV20,SV2# LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
CV20,SV2# RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209025 |
CV20,SV2# RH,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 LH,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-1203025 |
CV20,SV2# LH,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 LH,MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209012 |
CV20,SV2#,VZV20 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-1209012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72526-1203025 |
CV20,SV2# LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
CV20,SV2# RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209025 |
CV20,SV2# RH,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 LH,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-1203025 |
CV20,SV2# LH,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 LH,MAROON,TRIM3# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209012 |
CV20,SV2#,VZV20 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-1209012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72526-1203025 |
CV20,SV2# LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
CV20,SV2# RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209025 |
CV20,SV2# RH,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 LH,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72526-1203025 |
CV20,SV2# LH,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 LH,MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90154-80002 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
