CV20-JEMMX (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )2CT

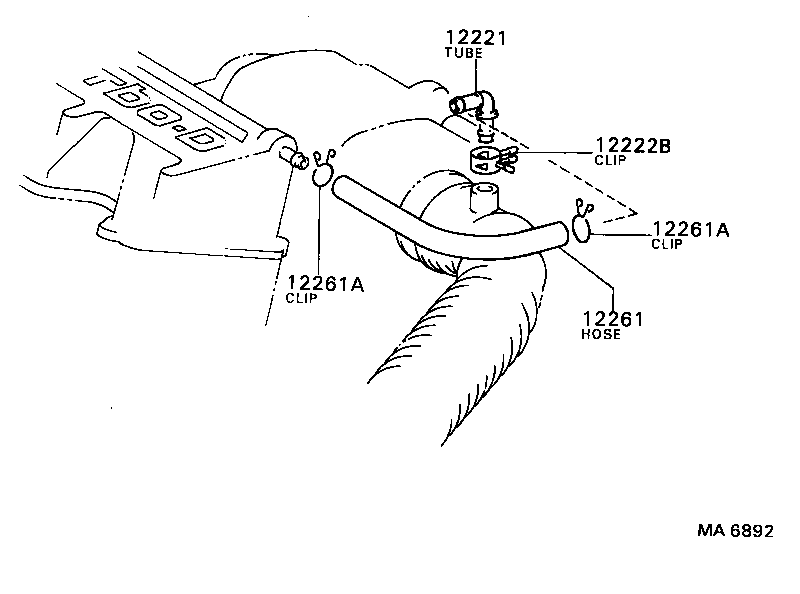

Click highlighted areas on diagram

diagram 12221 12222B 12261 12261A 12261A
Part # Description Qty Price
12221 - TUBE, VENTILATION NO.1
90407-10011

2CT..CV20

 1
12222B - CLIP(FOR VENTILATION TUBE)
96132-31000

2CT..CV20

 1
12261 - HOSE, VENTILATION
12261-64040

2CT..CV20

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2CT..CV20

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2CT..CV20

 2
