CV20-JEMMX (1988)
Toyota Camry/Vista

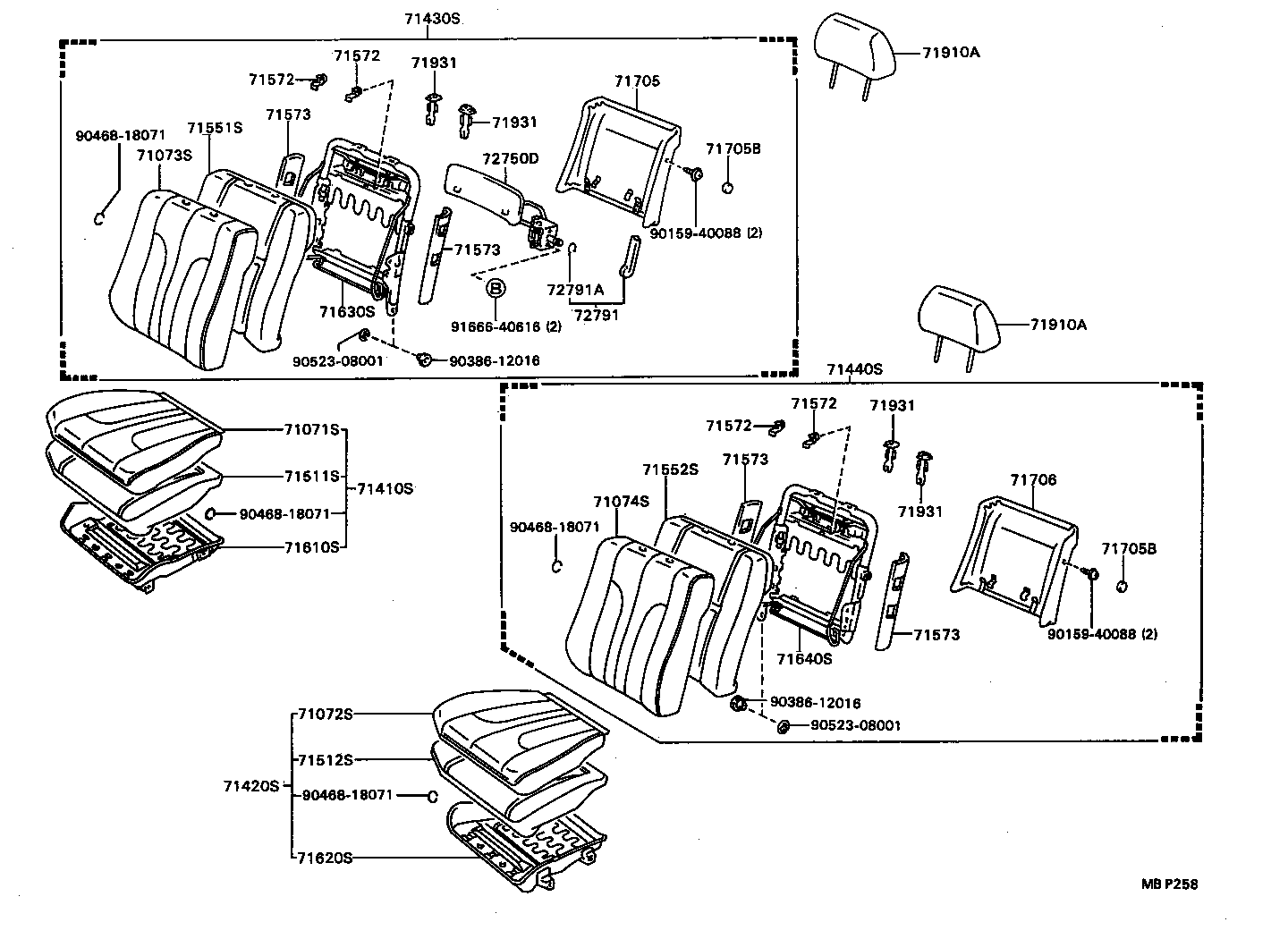

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3268002 |
CV20,SV21,22..LUM,VE MAROON,TRIM3# |
1 | ||
| 71071-3268003 |
CV20,SV21,22..LUM,VE MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-3268004 |
CV20,SV21,22..LUM,VE DARK BLUE,TRIM8# |
1 | ||
| 71071-3269003 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-3269004 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71071-3269002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3266003 |
CV20,SV21,22..LUM,VE MEDIAM GRAY,TRIM1# |
1 | ||
| 71072-3266002 |
CV20,SV21,22..LUM,VE MAROON,TRIM3# |
1 | ||
| 71072-3266004 |
CV20,SV21,22..LUM,VE DARK BLUE,TRIM8# |
1 | ||
| 71072-3267004 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71072-3267002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71072-3267003 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3254002 |
CV20,SV21,22..LUM,VE MAROON,TRIM3# |
1 | ||
| 71073-3254003 |
CV20,SV21,22..LUM,VE MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3254004 |
CV20,SV21,22..LUM,VE DARK BLUE,TRIM8# |
1 | ||
| 71073-3255002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71073-3255004 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71073-3255003 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3231003 |
CV20,SV21,22..LUM,VE MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3231004 |
CV20,SV21,22..LUM,VE DARK BLUE,TRIM8# |
1 | ||
| 71074-3231002 |
CV20,SV21,22..LUM,VE MAROON,TRIM3# |
1 | ||
| 71074-3232003 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3232002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71074-3232004 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3267003 |
CV20,SV21,22..LUM,VE ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-3267002 |
CV20,SV21,22..LUM,VE ***,MAROON,TRIM3# |
1 | ||
| 71410-3267004 |
CV20,SV21,22..LUM,VE ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-3268002 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71410-3268003 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-3268004 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3264003 |
CV20,SV21,22..LUM,VE ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-3264002 |
CV20,SV21,22..LUM,VE ***,MAROON,TRIM3# |
1 | ||
| 71420-3264004 |
CV20,SV21,22..LUM,VE ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-3265002 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71420-3265003 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-3265004 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3255002 |
CV20,SV21,22..LUM,VE ***,MAROON,TRIM3# |
1 | ||
| 71430-3255004 |
CV20,SV21,22..LUM,VE ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-3255003 |
CV20,SV21,22..LUM,VE ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3256003 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-3256002 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71430-3256004 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3243002 |
CV20,SV21,22..LUM,VE ***,MAROON,TRIM3# |
1 | ||
| 71440-3243003 |
CV20,SV21,22..LUM,VE ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-3243004 |
CV20,SV21,22..LUM,VE ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-3244002 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71440-3244003 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-3244004 |
CV20,SV21,22..LUM ***,ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32080 |
CV20,SV2#,VZV20..LT,LUM,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32130 |
CV20,SV2#,VZV20..LT,LUM,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32080 |
CV20,SV2#,VZV20..LT,LUM,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32080 |
CV20,SV2#,VZV20..LT,LUM,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
CV20,SV2#,VZV20 |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
CV20,SV2#,VZV20 |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
CV20,SV2#,VZV20 |
4 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
CV20,SV2#,VZV20 |
4 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71583-32030 |
CV20,SV2#,VZV20 |
4 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71583-32030 |
CV20,SV2#,VZV20 |
4 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71583-32030 |
CV20,SV2#,VZV20 |
4 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71583-32030 |
CV20,SV2#,VZV20 |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32040 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32080 |
CV20,SV21,22..LUM,VE |
1 | ||
| 71630-32090 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-32040 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3211004 |
CV20,SV21,22..GT,LUM,VE DARK BLUE,TRIM8# |
1 | ||
| 71705-3211003 |
CV20,SV21,22..GT,LUM,VE MEDIUM GRAY,TRIM1# |
1 | ||
| 71705-3211002 |
CV20,SV21,22..GT,LUM,VE MAROON,TRIM3# |
1 | ||
| 71705-3220004 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71705-3220003 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71705-3220002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-10001B2 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001J1 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
4 | ||
| 90339-10001D1 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
4 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-10001B2 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001J1 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
4 | ||
| 90339-10001D1 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3211002 |
CV20,SV21,22..GT,LUM,VE MAROON,TRIM3# |
1 | ||
| 71705-3211003 |
CV20,SV21,22..GT,LUM,VE MEDIUM GRAY,TRIM1# |
1 | ||
| 71705-3220004 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 71705-3220002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 71705-3211004 |
CV20,SV21,22..GT,LUM,VE DARK BLUE,TRIM8# |
1 | ||
| 71705-3220003 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3232002 |
CV20,SV21,22..LUM,VE MAROON,TRIM3# |
2 | ||
| 71910-3232004 |
CV20,SV21,22..LUM,VE DARK BLUE,TRIM8# |
2 | ||
| 71910-3232003 |
CV20,SV21,22..LUM,VE MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3239002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
2 | ||
| 71910-3239004 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
2 | ||
| 71910-3239003 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3232002 |
CV20,SV21,22..LUM,VE MAROON,TRIM3# |
2 | ||
| 71910-3232004 |
CV20,SV21,22..LUM,VE DARK BLUE,TRIM8# |
2 | ||
| 71910-3232003 |
CV20,SV21,22..LUM,VE MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-3239002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
2 | ||
| 71910-3239004 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
2 | ||
| 71910-3239003 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
CV20,SV2#,VZV20 ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060J0 |
CV20,SV2#,VZV20 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-10060D0 |
CV20,SV2#,VZV20 ﾛｯｸ付,MAROON,TRIM3# |
2 | ||
| 71931-10010B0 |
CV20,SV2#,VZV20 ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-10010J0 |
CV20,SV2#,VZV20 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-10010D0 |
CV20,SV2#,VZV20 ﾛｯｸ無,MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
CV20,SV2#,VZV20 ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060J0 |
CV20,SV2#,VZV20 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-10060D0 |
CV20,SV2#,VZV20 ﾛｯｸ付,MAROON,TRIM3# |
2 | ||
| 71931-10010B0 |
CV20,SV2#,VZV20 ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-10010J0 |
CV20,SV2#,VZV20 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-10010D0 |
CV20,SV2#,VZV20 ﾛｯｸ無,MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
CV20,SV2#,VZV20 ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060J0 |
CV20,SV2#,VZV20 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-10060D0 |
CV20,SV2#,VZV20 ﾛｯｸ付,MAROON,TRIM3# |
2 | ||
| 71931-10010B0 |
CV20,SV2#,VZV20 ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-10010J0 |
CV20,SV2#,VZV20 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-10010D0 |
CV20,SV2#,VZV20 ﾛｯｸ無,MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
CV20,SV2#,VZV20 ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060J0 |
CV20,SV2#,VZV20 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-10060D0 |
CV20,SV2#,VZV20 ﾛｯｸ付,MAROON,TRIM3# |
2 | ||
| 71931-10010B0 |
CV20,SV2#,VZV20 ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-10010J0 |
CV20,SV2#,VZV20 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-10010D0 |
CV20,SV2#,VZV20 ﾛｯｸ無,MAROON,TRIM3# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-32020 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020B0 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MEDIUM GRAY,TRIM1# |
1 | ||
| 72791-22020J0 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,DARK BLUE,TRIM8# |
1 | ||
| 72791-22020D0 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G,MAROON,TRIM3# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
CV20,SV21,22..LUM ﾙﾐｴ-ﾙ G |
1 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91666-40616 | ||||

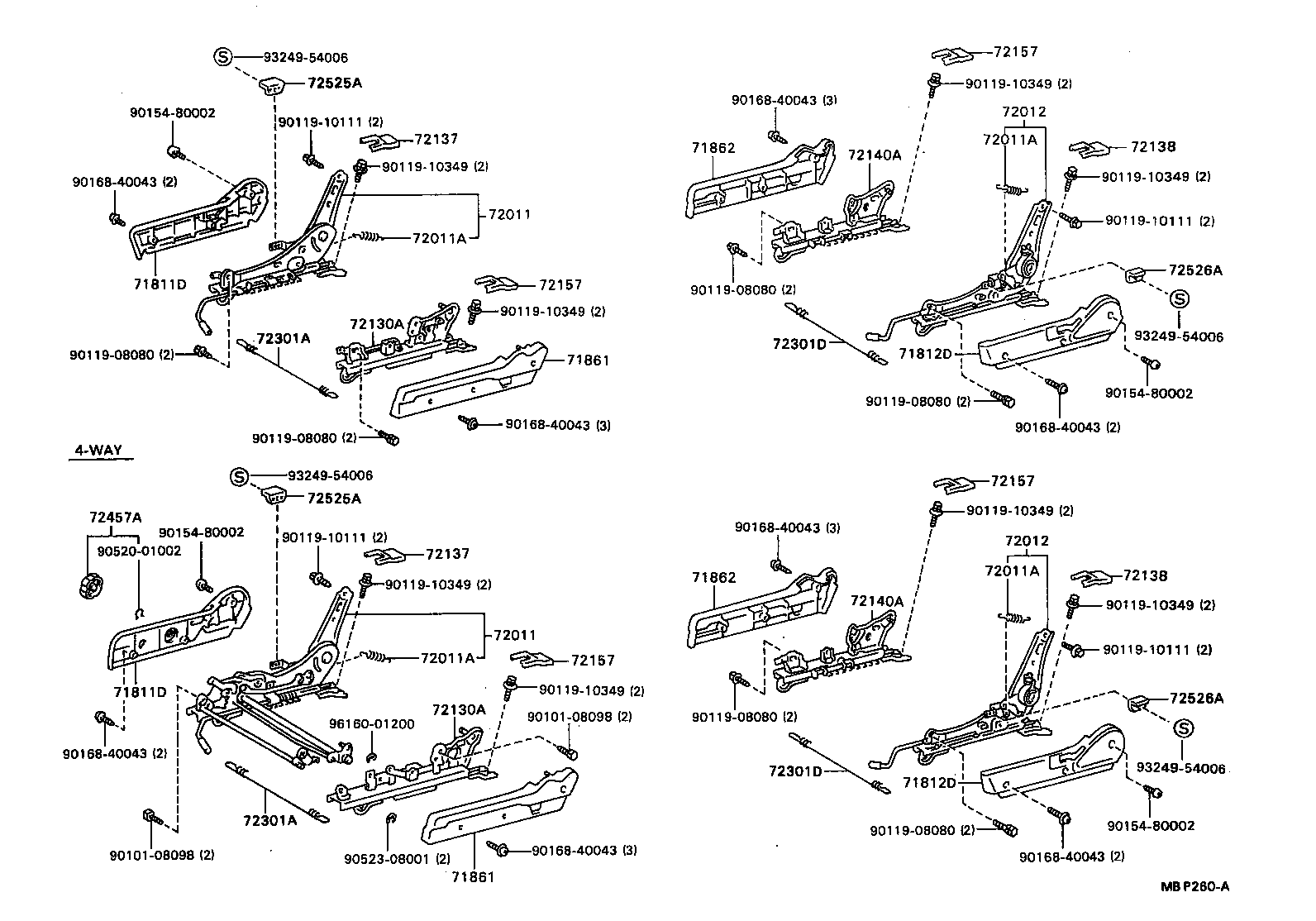

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3205002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 71811-3205004 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 71811-3205003 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3205002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 71811-3205004 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 71811-3205003 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71812-3203003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71812-3203003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 71812-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71861-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71861-3203003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71861-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71861-3203003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3202003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 71862-3202002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71862-3202004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3202003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 71862-3202002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 71862-3202004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-32030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-32030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
CV20,SV2#,VZV20 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
CV20,SV2#,VZV20 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
CV20,SV2#,VZV20 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
CV20,SV2#,VZV20 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-32020 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-32020 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-32020J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72137-32020B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-32020D0 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-32020J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72137-32020B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-32020D0 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-32020J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72137-32020D0 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72137-32020B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-32020J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72137-32020D0 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72137-32020B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-32010B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 72157-32010B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 72158-32010D0 |
CV20,SV2#,VZV20 MAROON,TRIM3#,左側 |
1 | ||
| 72157-32010J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,右側 |
1 | ||
| 72157-32010D0 |
CV20,SV2#,VZV20 MAROON,TRIM3#,右側 |
1 | ||
| 72158-32010J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,左側 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-32010B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 72157-32010B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 72158-32010D0 |
CV20,SV2#,VZV20 MAROON,TRIM3#,左側 |
1 | ||
| 72157-32010J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,右側 |
1 | ||
| 72157-32010D0 |
CV20,SV2#,VZV20 MAROON,TRIM3#,右側 |
1 | ||
| 72158-32010J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,左側 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-32010B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 72157-32010B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 72158-32010D0 |
CV20,SV2#,VZV20 MAROON,TRIM3#,左側 |
1 | ||
| 72157-32010J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,右側 |
1 | ||
| 72157-32010D0 |
CV20,SV2#,VZV20 MAROON,TRIM3#,右側 |
1 | ||
| 72158-32010J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,左側 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-32010B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 72157-32010B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 72158-32010D0 |
CV20,SV2#,VZV20 MAROON,TRIM3#,左側 |
1 | ||
| 72157-32010J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,右側 |
1 | ||
| 72157-32010D0 |
CV20,SV2#,VZV20 MAROON,TRIM3#,右側 |
1 | ||
| 72158-32010J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8#,左側 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-22010D0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
2 | ||
| 72457-22010J0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
2 | ||
| 72457-22010B0 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72525-1209023 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72525-1209034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72525-1209023 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203023 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203023 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 72526-1203012 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90154-80002 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
