CV20-JEMMX (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

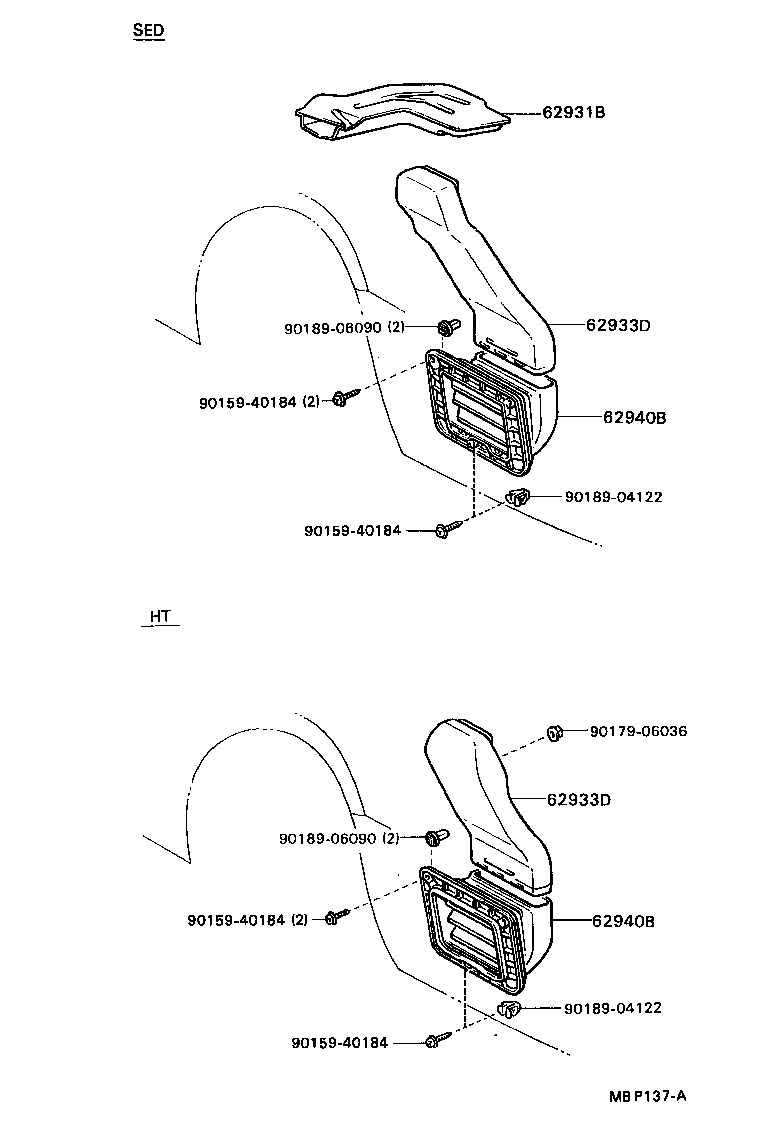

Click highlighted areas on diagram

diagram 62931B 62933D 62933D 62940B 62940B 9015940184 9015940184 9015940184 9015940184 9017906036 9018904122 9018904122 9018906090 9018906090
Part # Description Qty Price
62931B - DUCT, QUARTER VENT
62931-32010

CV20,SV2#,VZV20..SED

 1
62933D - DUCT, QUARTER VENT, UPPER
62933-32020

CV20,SV2#,VZV20..SED

 1
62933D - DUCT, QUARTER VENT, UPPER
62933-32020

CV20,SV2#,VZV20..SED

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-32020

CV20,SV2#,VZV20

ｶﾝﾚｲﾁ ｼﾖｳ

 1
62940-32010

CV20,SV2#,VZV20

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-32020

CV20,SV2#,VZV20

ｶﾝﾚｲﾁ ｼﾖｳ

 1
62940-32010

CV20,SV2#,VZV20

 1
Common parts
90159-40184
90179-06036
90189-04122
90189-06090
