CV20-JEMMX (1988)
Toyota Camry/Vista
Production
Aug 1988
-
Jul 1990
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )2CT

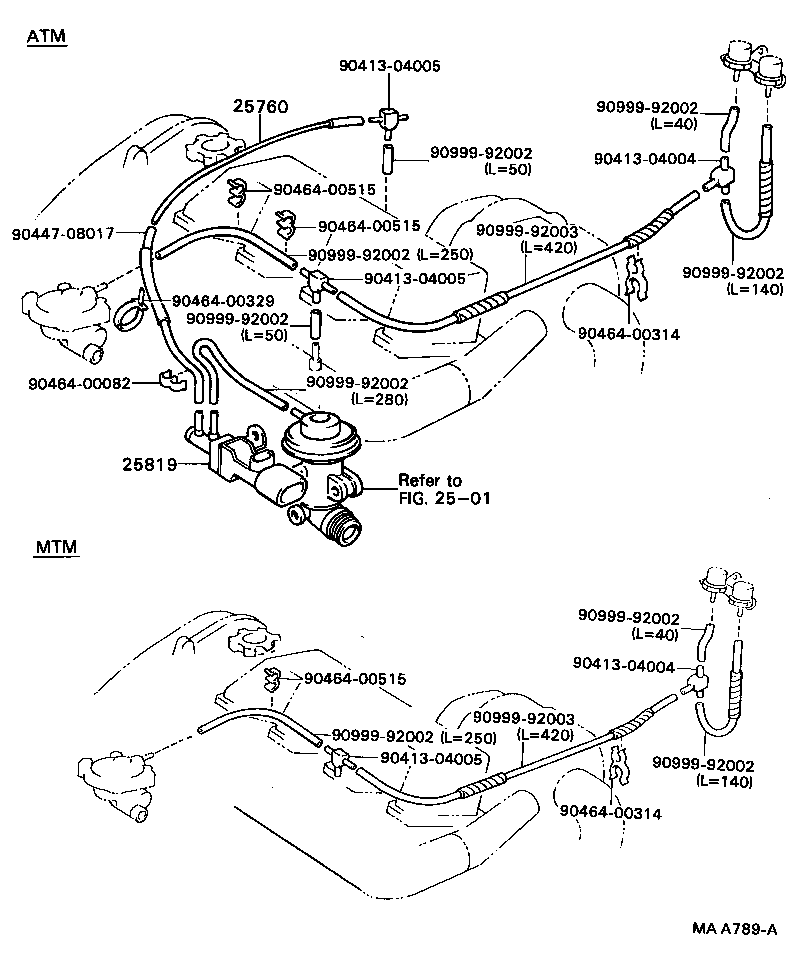

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(8808- )2CT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90447-08017 | ||||
| 90464-00082 | ||||
| 90464-00314 | ||||
| 90464-00329 | ||||
| 90464-00515 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| Linked diagrams | ||||
| 2501 | ||||
