CV10-UEPEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8203-8406)

Click highlighted areas on diagram

diagram 44608 44610 44610K 44618 44629 44642 44663 44785 9017908038
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-32010

CV10,SV1#

AISIN

 1
44608-32020

CV1#,SV1#

JKC

 1
44610K - BOOSTER KIT, BRAKE
04443-32080

CV10

AISIN

 1
04443-32090

CV10

JKC

 1
44618 - SEAL, BOOSTER BODY
44621-28120

CV10,SV1#

AISIN

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

CV10,SV1#

AISIN

 1
44642 - PISTON, BRAKE BOOSTER
44642-32010

CV10,SV1#

AISIN

 1
44663 - KEY, VALVE STOPPER
44635-28120

CV10,SV1#

AISIN

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CV1#,SV1#

 1
Common parts
90179-08038

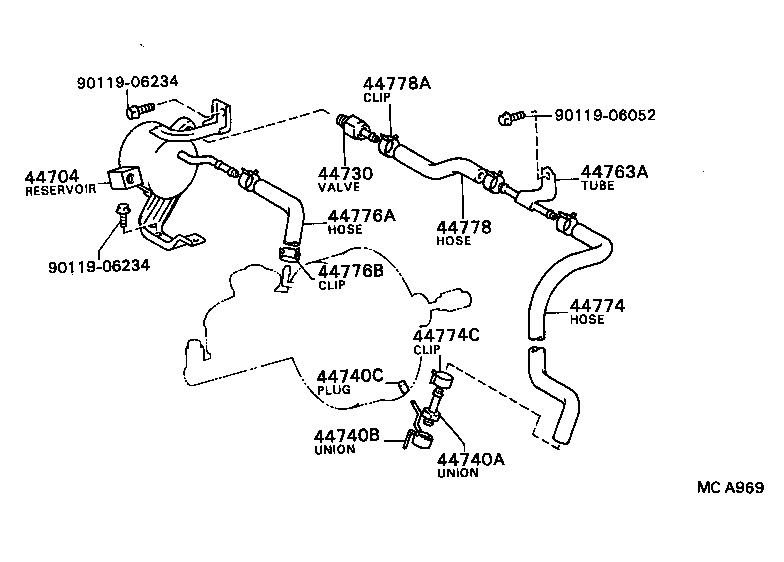

ILLUST NO. 2 OF 2(8308- )CV1#

Click highlighted areas on diagram

diagram 44704 44730 44740A 44740B 44740C 44763A 44774 44774C 44776A 44776B 44778 44778A 9011906052 9011906234 9011906234
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-32010

CV10

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-32030

CV10

 1
Common parts
90119-06052
90119-06234
