CV10-UEPEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

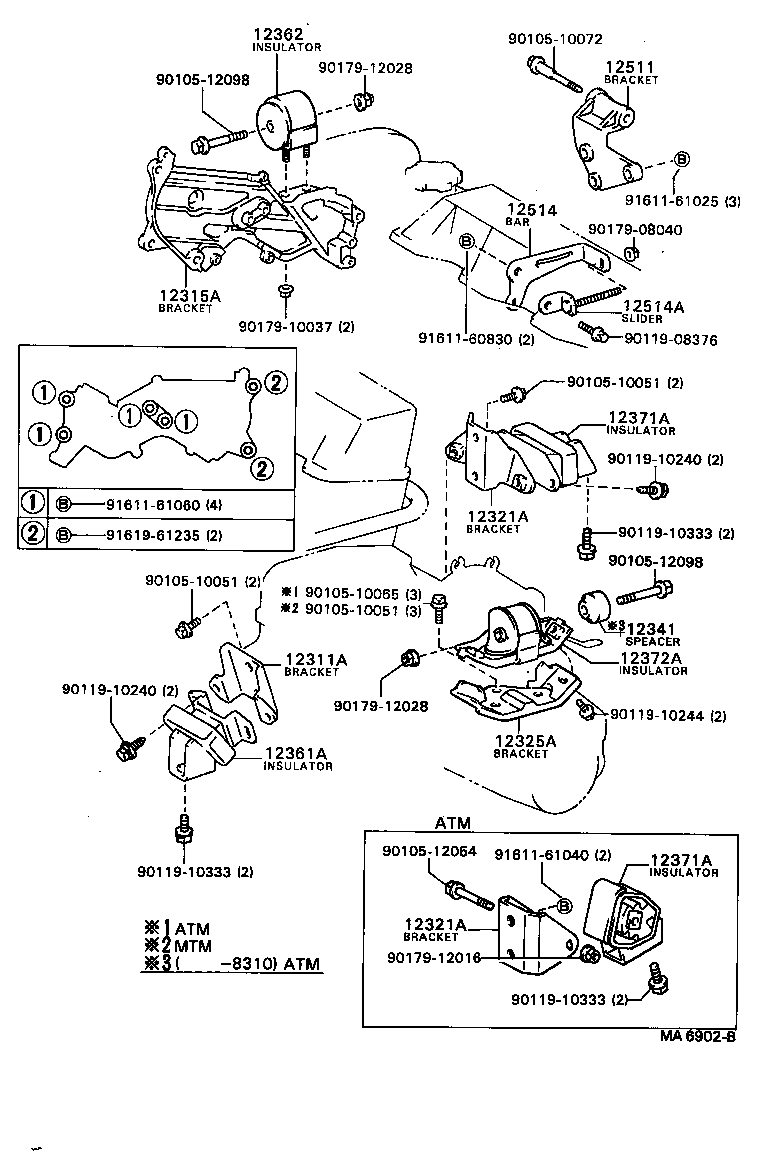

(8308-8410)1CTL

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12321A 12325A 12341 12361A 12362 12371A 12371A 12372A 12511 12514 12514A 9010510051 9010510051 9010510051 9010510065 9010510072 9010512054 9010512098 9010512098 9011908376 9011910240 9011910240 9011910244 9011910333 9011910333 9011910333 9017908040 9017910037 9017912016 9017912028 9017912028 9161160830 9161161025 9161161040 9161161060 9161961235
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-63031

1CTL..CV10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-64030

1CTL..CV10

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64060

1CTL..CV10..4FC

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64060

1CTL..CV10..4FC

 1
12341 - SPACER, ENGINE MOUNTING
12341-64020

1CTL..CV10..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64040

1CTL..CV10..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64040

1CTL..CV10..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-64020

1CTL..CV10..4FC

 1
Common parts
90105-10051
90105-10065
90105-10072
90105-12054
90105-12098
90119-08376
90119-10240
90119-10244
90119-10333
90179-08040
90179-10037
90179-12016
90179-12028
91611-60830
91611-61025
91611-61040
91611-61060
91619-61235

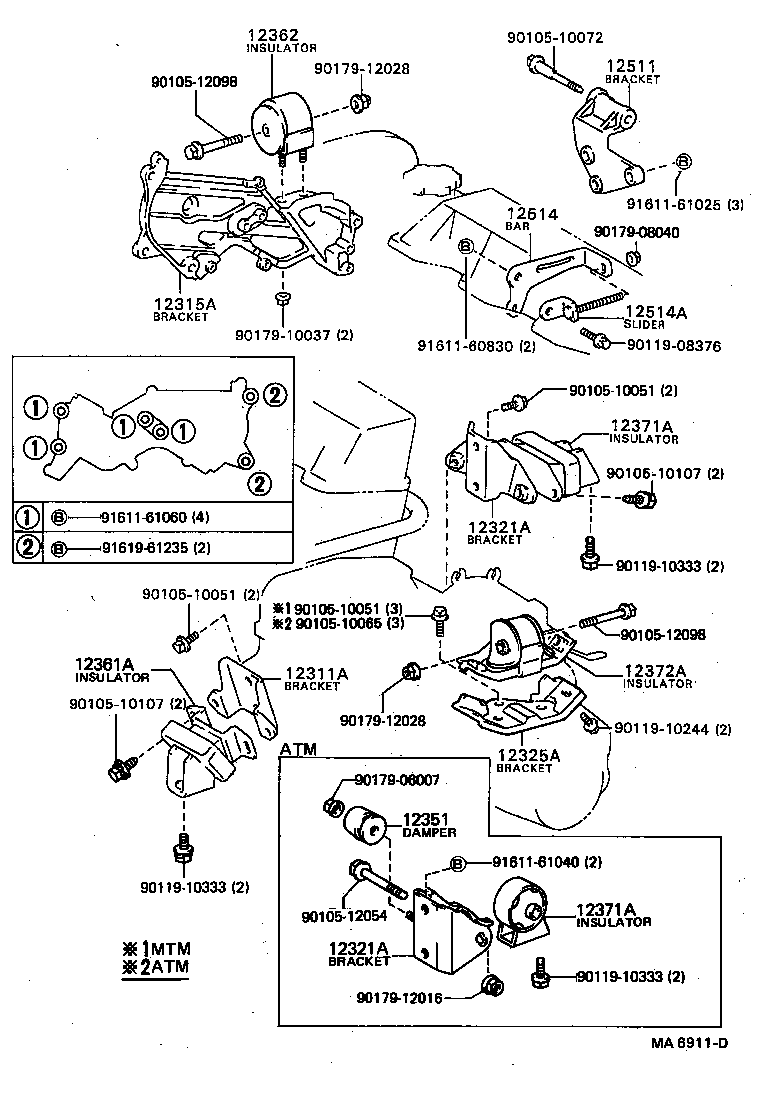

(8410-8502)1CTL

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12321A 12325A 12351 12361A 12362 12371A 12371A 12372A 12511 12514 12514A 9010510051 9010510051 9010510051 9010510065 9010510072 9010510107 9010510107 9010512054 9010512098 9010512098 9011908376 9011910244 9011910333 9011910333 9011910333 9017906007 9017908040 9017910037 9017912016 9017912028 9017912028 9161160830 9161161025 9161161040 9161161060 9161961235
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-63031

1CTL..CV10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-64030

1CTL..CV10

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64060

1CTL..CV10..4FC

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64060

1CTL..CV10..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64040

1CTL..CV10..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64040

1CTL..CV10..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-64020

1CTL..CV10..4FC

 1
Common parts
90105-10051
90105-10065
90105-10072
90105-10107
90105-12054
90105-12098
90119-08376
90119-10244
90119-10333
90179-06007
90179-08040
90179-10037
90179-12016
90179-12028
91611-60830
91611-61025
91611-61040
91611-61060
91619-61235

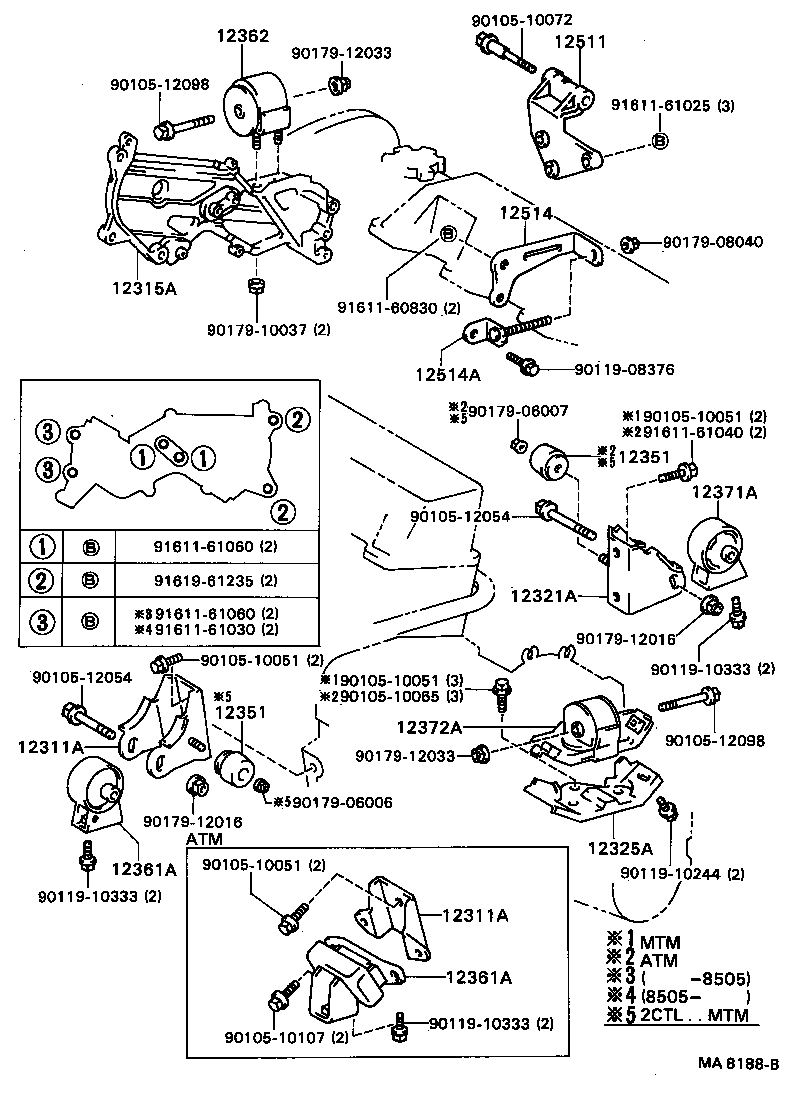

(8502- )1CTL,2CTL

Click highlighted areas on diagram

diagram 12311A 12311A 12315A 12321A 12325A 12351 12351 12361A 12361A 12362 12371A 12372A 12511 12514 12514A 9010510051 9010510051 9010510051 9010510051 9010510065 9010510072 9010510107 9010512054 9010512054 9010512098 9010512098 9011908376 9011910244 9011910333 9011910333 9011910333 9017906006 9017906007 9017908040 9017910037 9017912016 9017912016 9017912033 9017912033 9161160830 9161161025 9161161030 9161161040 9161161060 9161161060 9161961235
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-63031

1CTL..CV10

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-63031

1CTL..CV10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-64030

1CTL..CV10

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64060

1CTL..CV10..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64040

1CTL..CV10..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-64020

1CTL..CV10..4FC

 1
Common parts
90105-10051
90105-10065
90105-10072
90105-10107
90105-12054
90105-12098
90119-08376
90119-10244
90119-10333
90179-06006
90179-06007
90179-08040
90179-10037
90179-12016
90179-12033
91611-60830
91611-61025
91611-61030
91611-61040
91611-61060
91619-61235
