CV10-UEMNX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)VIS

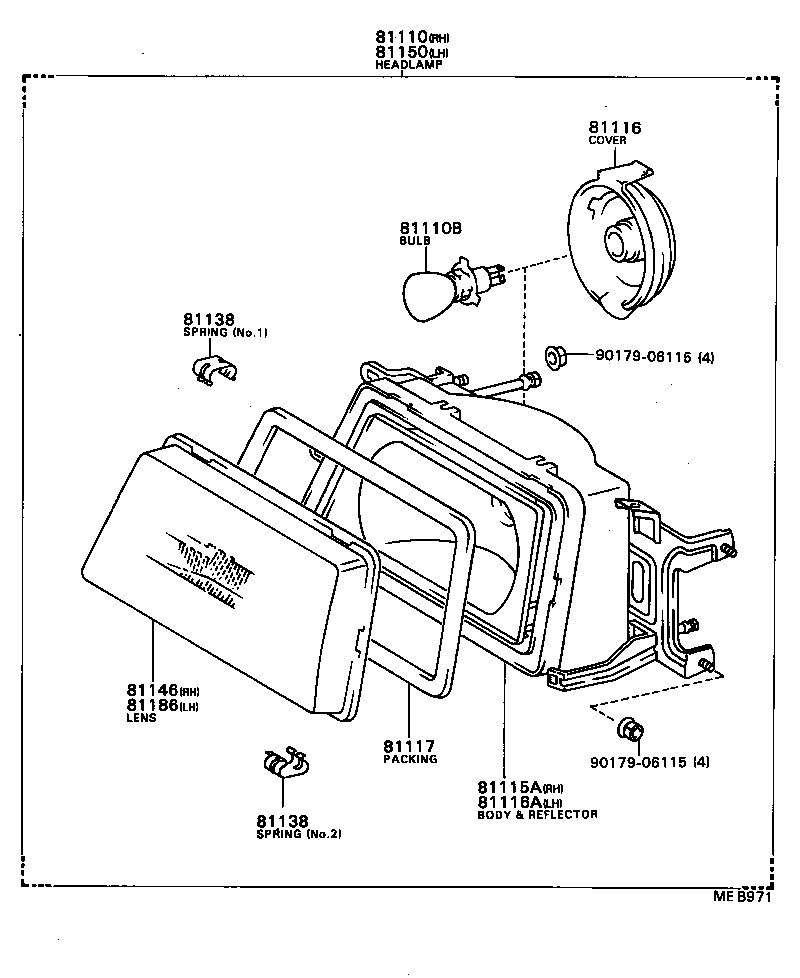

Click highlighted areas on diagram

diagram 81110 81110B 81115A 81116 81116A 81117 81138 81138 81146 81150 81186 9017906115 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-39895

CV10,SV1#..VIS

HALOGEN

 1
81110-39885

CV10,SV1#..VC,VL

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CV10,SV1#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13022

CV1#,SV10..LT,VC,VL,XT

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
81115A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH
81105-32040

CV10,SV1#..VIS

HALOGEN

 1
81105-32030

CV10,SV1#..VC,VL

 1
81116 - COVER, SEALED BEAM UNIT
81139-14880

CV10,SV1#..VIS

 2
81116A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH
81106-32030

CV10,SV1#..VC,VL

 1
81106-32040

CV10,SV1#..VIS

HALOGEN

 1
81117 - PACKING, HEADLAMP HOUSING
81136-32030

CV10,SV1#..VIS

 2
81138 - SPRING, HEADLAMP
81138-14880

CV10,SV1#..VIS

NO.1

 8
81138-32030

CV10,SV1#..VIS

NO.2

 4
81138 - SPRING, HEADLAMP
81138-14880

CV10,SV1#..VIS

NO.1

 8
81138-32030

CV10,SV1#..VIS

NO.2

 4
81146 - LENS, HEADLAMP, RH
81135-32030

CV10,SV1#..VIS

 1
81150 - HEADLAMP ASSY, LH
81150-39885

CV10,SV1#..VC,VL

 1
81150-39895

CV10,SV1#..VIS

HALOGEN

 1
81186 - LENS, HEADLAMP, LH
81176-32030

CV10,SV1#..VIS

 1
Common parts
90179-06115

(8406- )

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81135 8113722530 81144 81150 81175 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-39895

CV10,SV1#..VIS

HALOGEN

 1
81110-39885

CV10,SV1#..VC,VL

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CV10,SV1#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13022

CV1#,SV10..LT,VC,VL,XT

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CV10,SV1#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13022

CV1#,SV10..LT,VC,VL,XT

12V 65/60W,ﾎﾜｲﾄ,12V 65/60W

 2
81150 - HEADLAMP ASSY, LH
81150-39885

CV10,SV1#..VC,VL

 1
81150-39895

CV10,SV1#..VIS

HALOGEN

 1
Common parts
81137-22530
90179-06115
