CV10-UEMNX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )CV1#

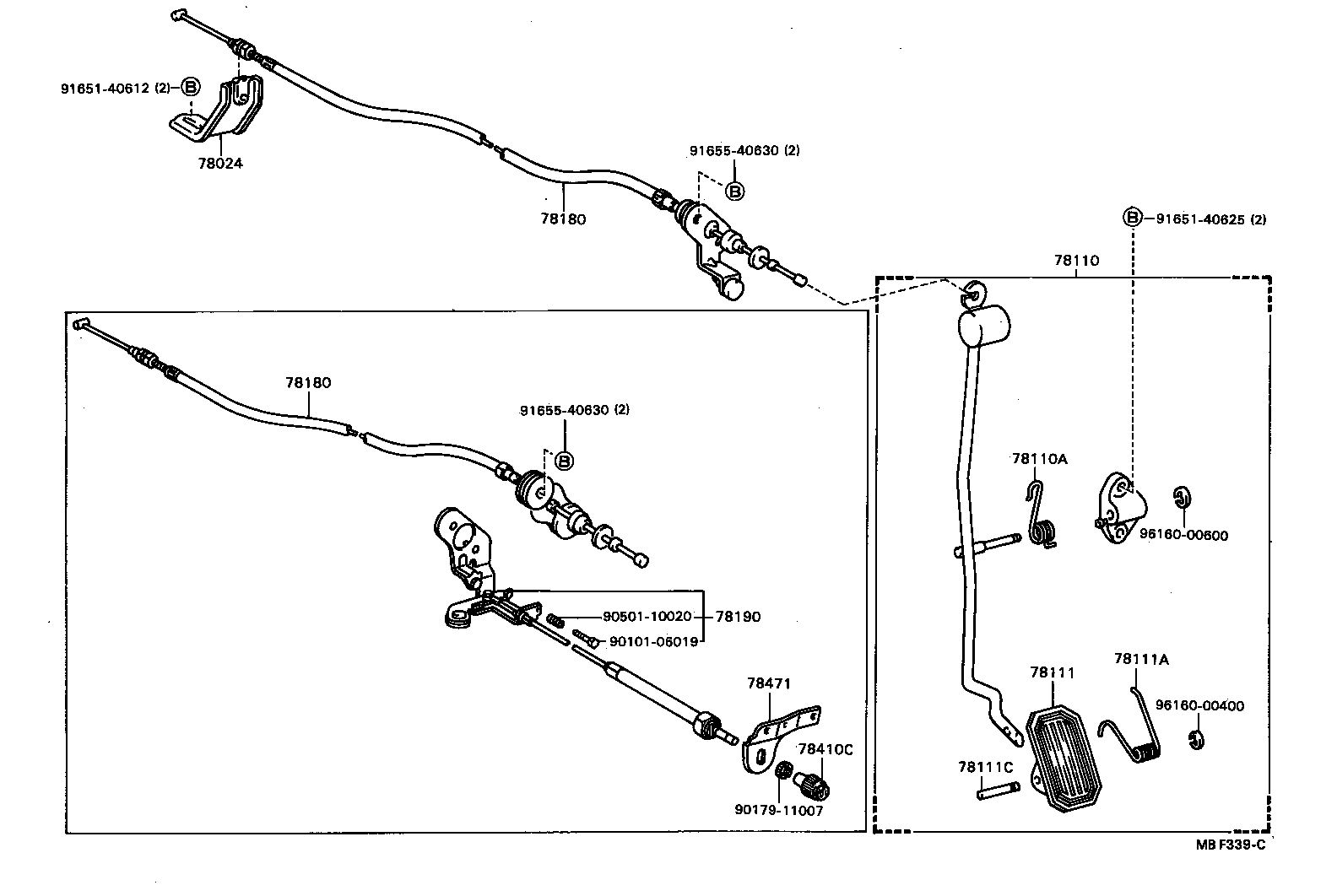

Click highlighted areas on diagram

diagram 78024 78110 78110A 78111 78111A 78111C 78180 78180 78190 78410C 78471 9010106019 9017911007 9050110020 9165140612 9165140625 9165540630 9165540630 9616000400 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-32010

CV10,SV1#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

CV1#,SV1#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CV1#,SV1#

 1
Common parts
90101-06019
90179-11007
90501-10020
91651-40612
91651-40625
91655-40630
96160-00400
96160-00600
