Toyota Camry/vista CV10 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
44310 - PUMP ASSY, VANE
44320-12050	CV10	08/1983 - 07/1985	1
44311A - KEY, VANE PUMP PULLEY
90280-05008	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX	03/1982 - 07/1986	1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX	03/1982 - 07/1986	1
44313 - ROTOR, VANE PUMP
44313-12010	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX ﾏｰｸ無し,NO MARK	03/1982 - 07/1986	1
44313-12040	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX ﾏｰｸ 3,MARK 3	03/1982 - 07/1986	1
44313-12050	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX ﾏｰｸ 4,MARK 4	03/1982 - 07/1986	1
44313-12030	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX ﾏｰｸ 2,MARK 2	03/1982 - 07/1986	1
44313-12020	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX ﾏｰｸ 1,MARK 1	03/1982 - 07/1986	1
44324A - HOUSING, PUMP, REAR
44324-12030	CV10	08/1983 - 07/1985	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447	CV10,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX	03/1982 - 07/1985	1
44338 - UNION, PRESSURE PORT
44308-12020	CV10	08/1983 - 05/1984	1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-12020	CV10	08/1983 - 07/1985	1
44348 - PLATE, VANE PUMP
44345-12010	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX 長さ=14.997,L=14.996-14.998,ROTOR NO MARK	03/1982 - 07/1986	10
44345-12020	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX 長さ=14.995,L=14.994-14.996,ROTOR MARK 1	03/1982 - 07/1986	10
44345-12050	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX 長さ=14.989,L=14.988-14.990,ROTOR MARK 4	03/1982 - 07/1986	10
44345-12040	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX 長さ=14.991,L=14.990-14.992,ROTOR MARK 3	03/1982 - 07/1986	10
44345-12030	CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX 長さ=14.993,L=14.992-14.994,ROTOR MARK 2	03/1982 - 07/1986	10
Common parts
90119-08035
90179-12022
90206-30002
91611-60614

CV10-UEMNX (1983)

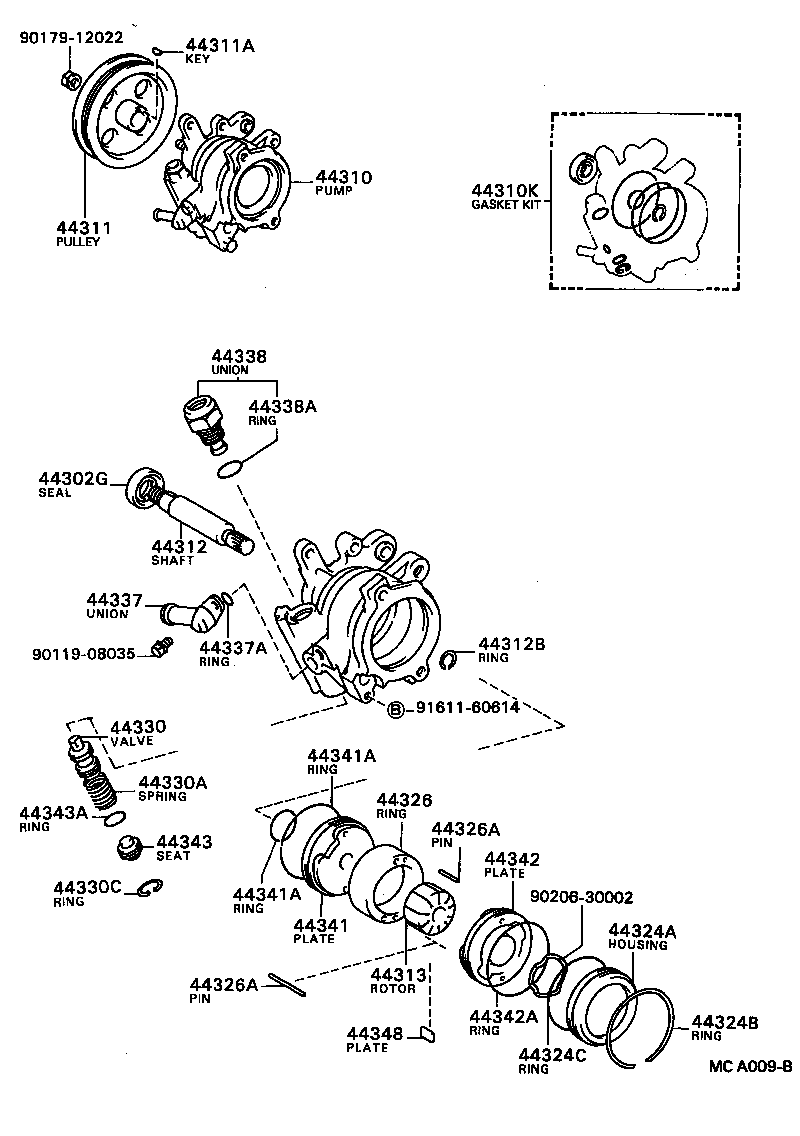

ILLUST NO. 1 OF 2(8308- )CV1#
