CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

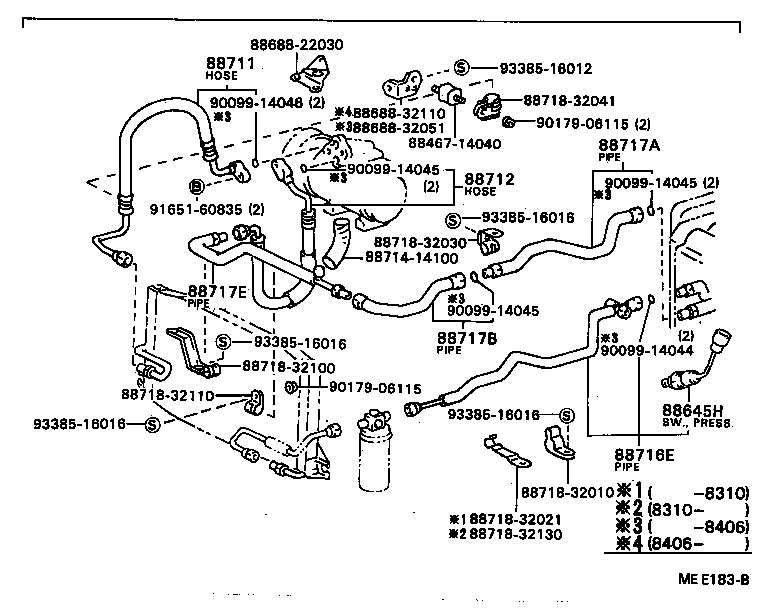

ILLUST NO. 2 OF 2(8308- )CV1#,SV12

Click highlighted areas on diagram

diagram 8846714040 88645H 8868822030 8868832051 8868832110 88711 88712 8871414100 88716E 88717A 88717B 88717E 8871832010 8871832021 8871832030 8871832041 8871832100 8871832110 8871832130 9009914044 9009914045 9009914045 9009914045 9009914046 9017906115 9017906115 9165160835 9338516012 9338516016 9338516016 9338516016 9338516016
Part # Description Qty Price
88645H - SWITCH, PRESSURE NO.1
88645-32010

CV10,SV1#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-32170

CV10

 1
88716-32171

CV10

 1
Common parts
88467-14040
88688-22030
88688-32051
88688-32110
88714-14100
88718-32010
88718-32021
88718-32030
88718-32041
88718-32100
88718-32110
88718-32130
90099-14044
90099-14045
90099-14046
90179-06115
91651-60835
93385-16012
93385-16016
