CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)

Click highlighted areas on diagram

diagram 88031 88031A 8856932060 88603 88603 88645B 88691 88691 88691C 88691C 88691C 88691C 88691C 88691D 88691D 8871822420 8889595715 8889595715 9004464009 9046400074 9046400074 9046400074 9046400074 9046400082 9046400082 9046400184 9046400248 9046400248 9338516012 9338516012
Part # Description Qty Price
88603 - WIRE, IDLE UP DEVICE
88605-32040

CV10,SV1#..SE,VE,VF,VX,XE,ZX

W/*AAC

 1
88605-32020

CV10,SV1#

 1
88603 - WIRE, IDLE UP DEVICE
88605-32040

CV10,SV1#..SE,VE,VF,VX,XE,ZX

W/*AAC

 1
88605-32020

CV10,SV1#

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

CV10..SE,VE

W/*AAC,3-WAY

 2
Common parts
88569-32060
88718-22420
88895-95715
90044-64009
90464-00074
90464-00082
90464-00184
90464-00248
93385-16012

(8308- )CV1#

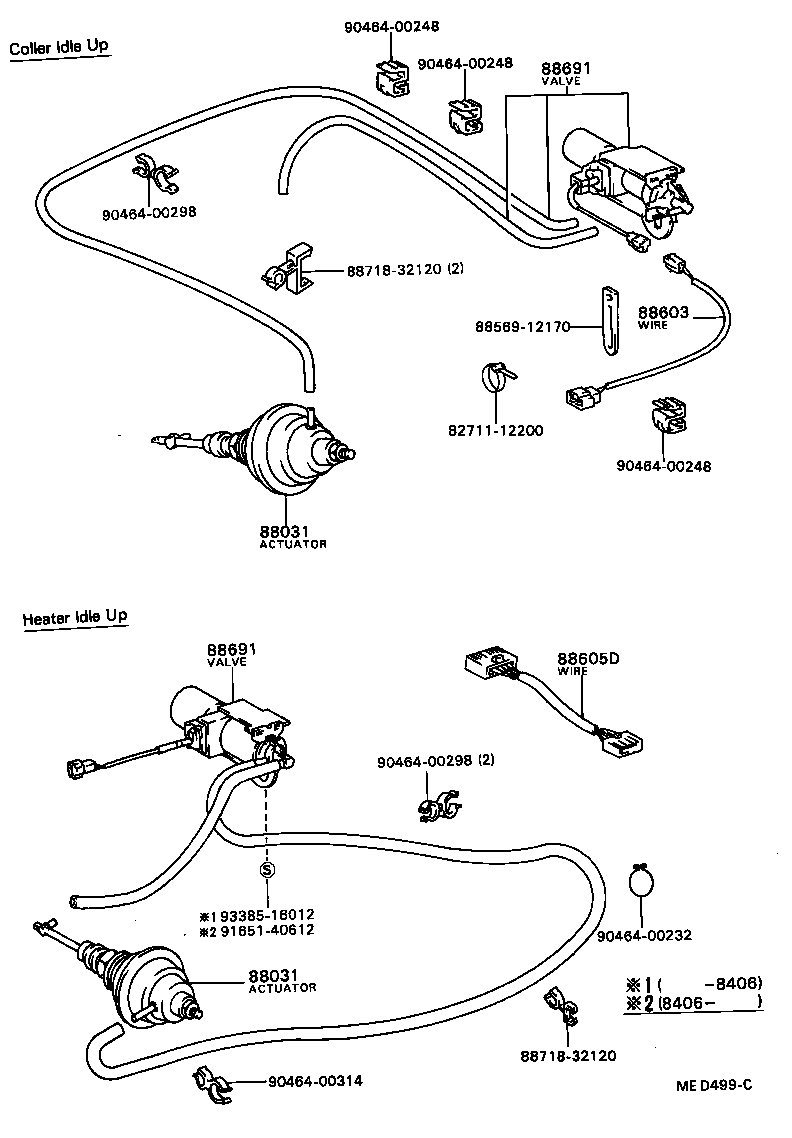

Click highlighted areas on diagram

diagram 8271112200 88031 88031 8856912170 88603 88605D 88691 88691 8871832120 8871832120 9046400232 9046400248 9046400248 9046400248 9046400298 9046400298 9046400314 9165140612 9338516012
Part # Description Qty Price
88603 - WIRE, IDLE UP DEVICE
88605-32040

CV10,SV1#..SE,VE,VF,VX,XE,ZX

W/*AAC

 1
88605-32020

CV10,SV1#

 1
Common parts
82711-12200
88569-12170
88718-32120
90464-00232
90464-00248
90464-00298
90464-00314
91651-40612
93385-16012

(8308- )CV1#

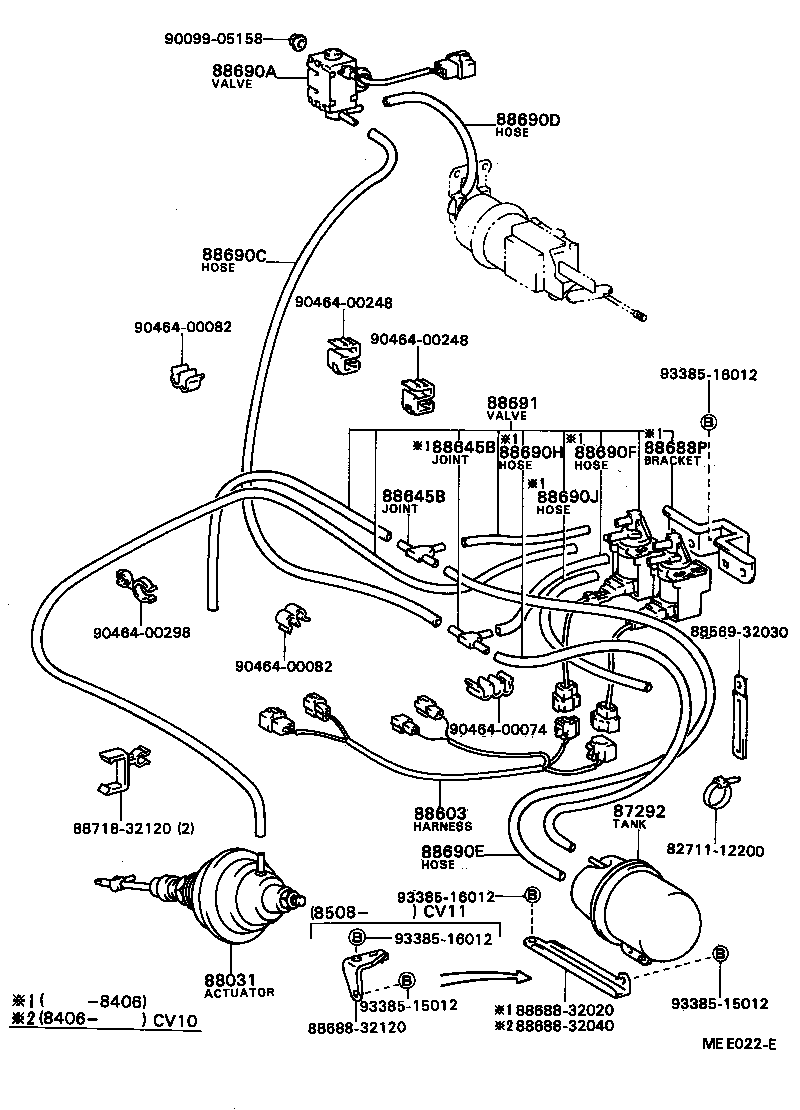

Click highlighted areas on diagram

diagram 8271112200 87292 88031 8856932030 88603 88645B 88645B 8868832020 8868832040 8868832120 88688P 88690A 88690C 88690D 88690E 88690F 88690H 88690J 88691 8871832120 9009905158 9046400074 9046400082 9046400082 9046400248 9046400248 9046400298 9338515012 9338515012 9338516012 9338516012 9338516012
Part # Description Qty Price
87292 - TANK, VACUUM
88683-32010

CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX

W/*AAC

 1
88603 - WIRE, IDLE UP DEVICE
88605-32040

CV10,SV1#..SE,VE,VF,VX,XE,ZX

W/*AAC

 1
88605-32020

CV10,SV1#

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

CV10..SE,VE

W/*AAC,3-WAY

 2
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

CV10..SE,VE

W/*AAC,3-WAY

 2
88688P - BRACKET (FOR MAGNET VALVE)
88688-32010

CV10,SV1#..SE,VE,VF,VX,XE,ZX

W/*AAC

 1
88690A - VALVE ASSY, COMBINATION
88690-32010

CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX

W/*AAC

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
95411-10430

CV1#,SV1#..SE,VE,VF,VR,VS,VX,XE,XS,ZE,ZX

W/*AAC,*H,L=140,MARK=#4

 1
88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER)
95411-10260

CV10,SV1#..SE,VE,VF,VX,XE,ZX

*H,L=570,ﾏｰｸ=#2,W/*AAC

 1
88690J - HOSE, VACUUM, NO.7 (FOR HEATER OR AIR CONDITIONER)
95411-10330

CV10,SV1#..SE,VE,VF,VX,XE,ZX

*H,L=140,ﾏｰｸ=#3,W/*AAC

 1
Common parts
82711-12200
88569-32030
88688-32020
88688-32040
88688-32120
88718-32120
90099-05158
90464-00074
90464-00082
90464-00248
90464-00298
93385-15012
93385-16012
