CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)

Click highlighted areas on diagram

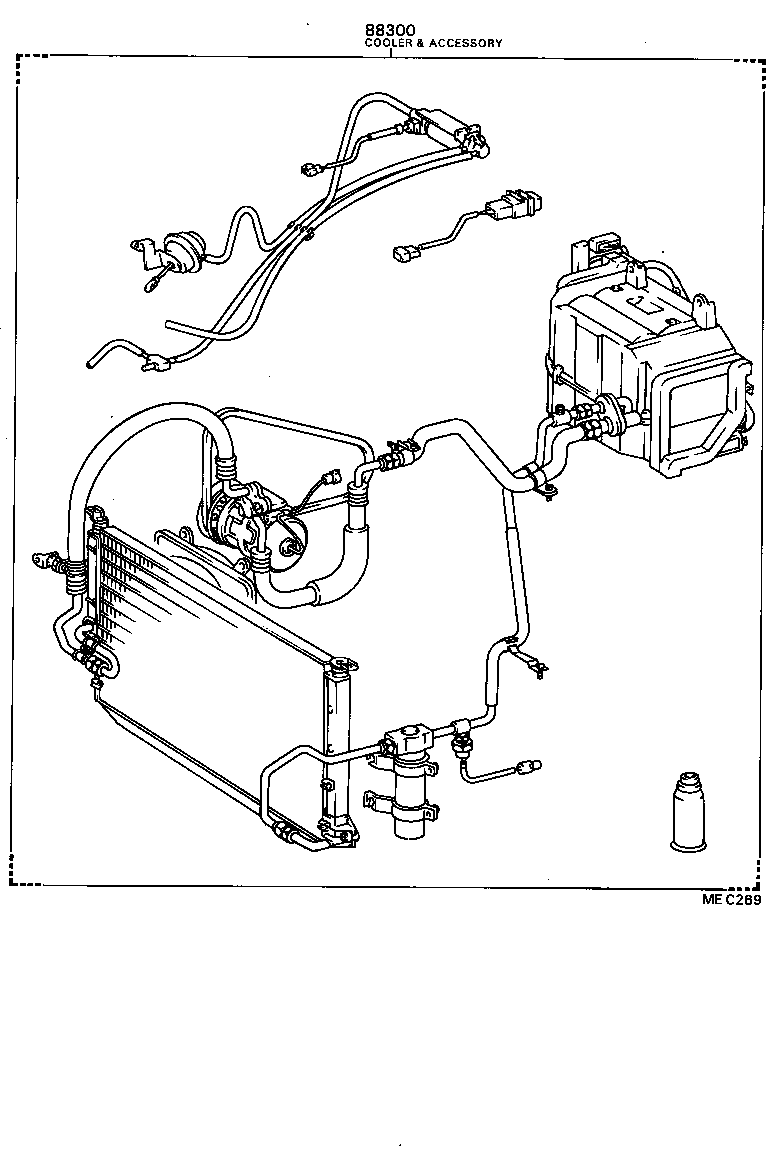

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-32200

CV10..5F

COLD SPEC

 1
88300-32220

CV10..5F..(SE,VE)

*AAC,COLD SPEC

 1
88300-32180

CV10..5F..(SE,VE)

*AAC

 1
88300-32160

CV10..5F

 1

(8406- )

Click highlighted areas on diagram

diagram 88820 88820A 88860
Part # Description Qty Price
88860 - ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER
88860-32030

CV10..SE,VE

 1
