CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)4D ; (8406- )VIS..4D

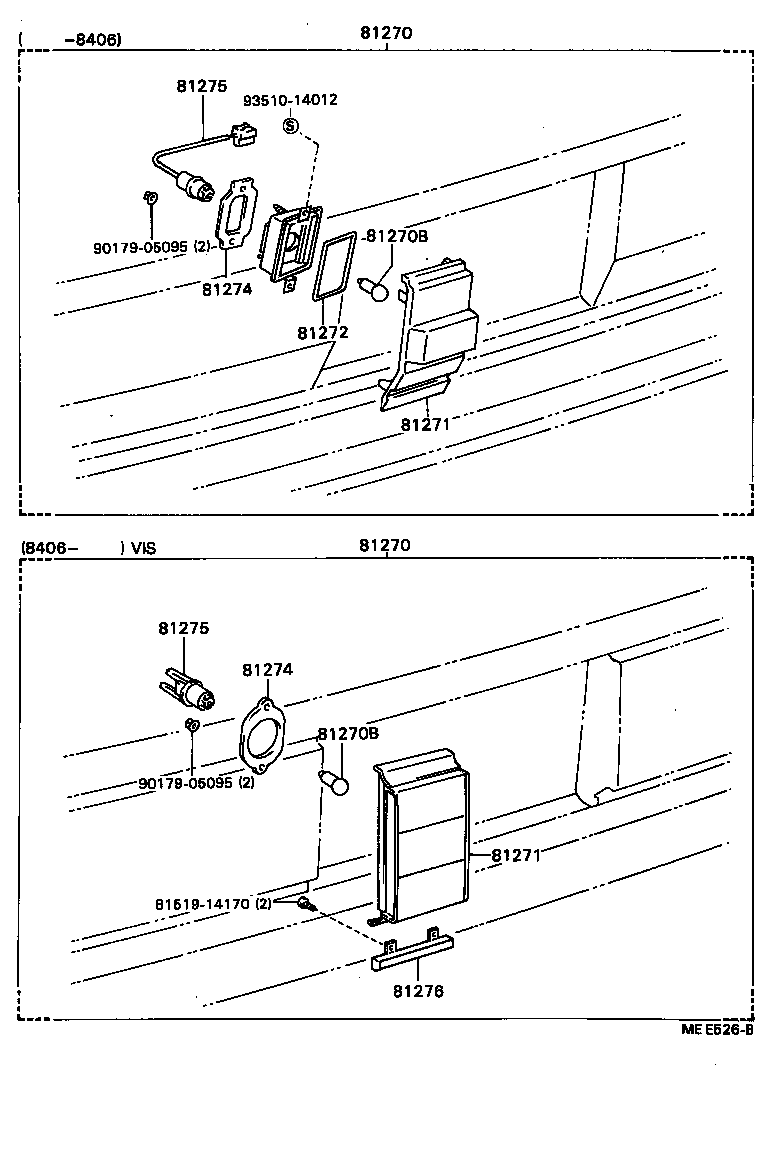

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81274 81274 81275 81275 81276 8151914170 9017905095 9017905095 9351014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-39325

CV10,SV1#..4D..(VE,VF,VX)

RH

 1
81690-39035

CV10,SV1#..4D..(VE,VF,VX)

LH

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-39325

CV10,SV1#..4D..(VE,VF,VX)

RH

 1
81690-39035

CV10,SV1#..4D..(VE,VF,VX)

LH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

CV10,SV1#

12V 10W,12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

CV10,SV1#

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81691-32020

CV10,SV1#..4D..(VE,VF,VX)

LH

 1
81271-32020

CV10,SV1#..4D..(VE,VF,VX)

RH

 1
81271 - LENS, LICENSE PLATE LAMP
81691-32020

CV10,SV1#..4D..(VE,VF,VX)

LH

 1
81271-32020

CV10,SV1#..4D..(VE,VF,VX)

RH

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-32010

CV10,SV1#..4D

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-32010

CV10,SV1#..4D

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-32010

CV10,SV1#..4D

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-32010

CV10,SV1#..4D

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-32010

CV10,SV1#..4D

 2
Common parts
81519-14170
90179-05095
93510-14012
