CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

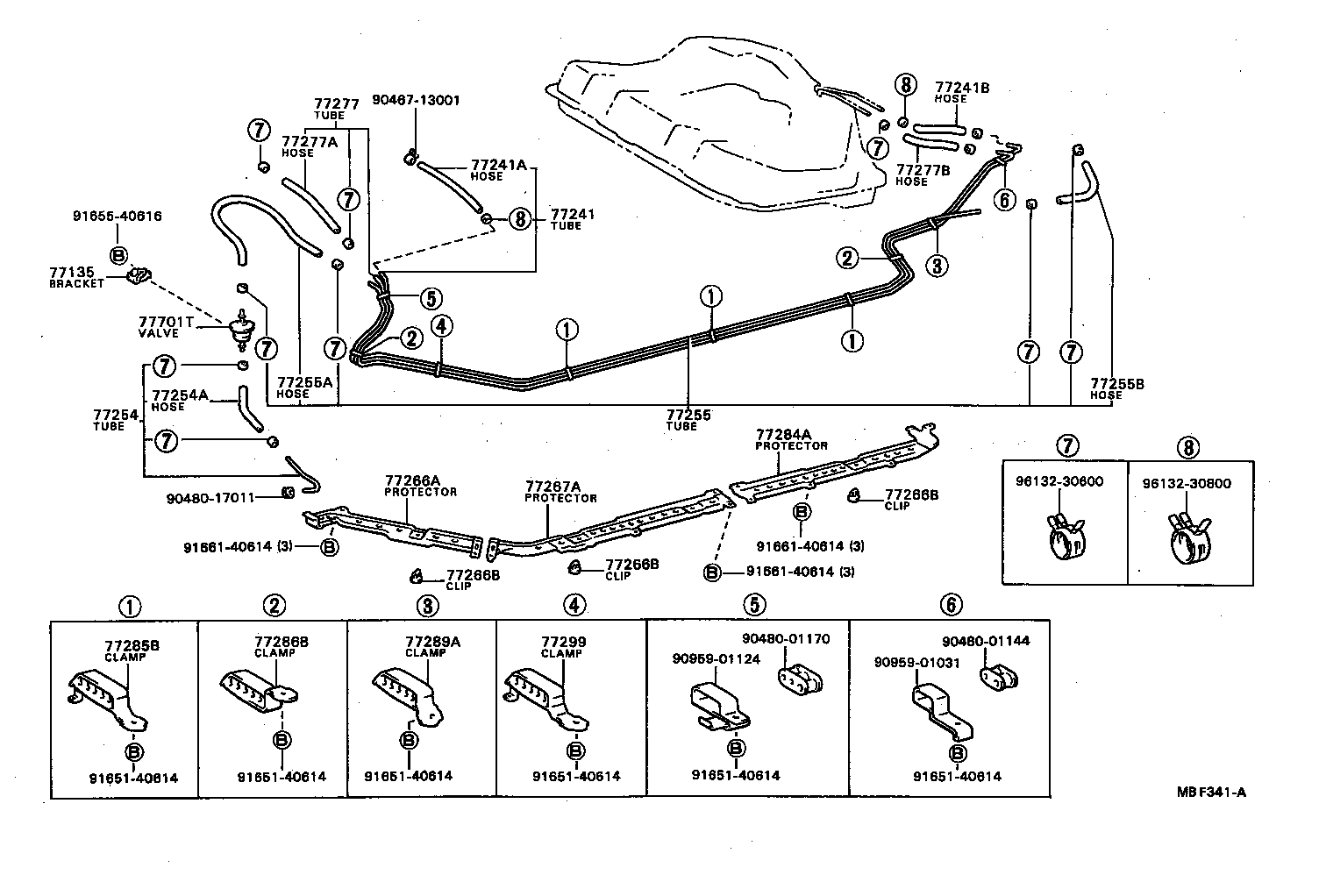

ILLUST NO. 2 OF 2(8308- )CV1#

Click highlighted areas on diagram

diagram 77135 77241 77241A 77241B 77254 77254A 77255 77255A 77255B 77266A 77266B 77266B 77266B 77267A 77277 77277A 77277B 77284A 77285B 77286B 77289A 77299 77701T 9046713001 9048001144 9048001170 9048017011 9095901031 9095901124 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165540616 9166140614 9166140614 9166140614 9613230600 9613230800
Part # Description Qty Price
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

CV10

*H,L=240,内径=7.6

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-32010

CV1#,SV1#

 1
77266B - CLIP (FOR FUEL TUBE PROTECTOR)
90467-1000501

CV1#,SV1#

BLACK

 4
77266B - CLIP (FOR FUEL TUBE PROTECTOR)
90467-1000501

CV1#,SV1#

BLACK

 4
77266B - CLIP (FOR FUEL TUBE PROTECTOR)
90467-1000501

CV1#,SV1#

BLACK

 4
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-32010

CV1#,SV1#

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06020

CV10,SV1#

*H,L=180

 1
77284A - PROTECTOR, FUEL TUBE, NO.3
77284-32010

CV1#,SV1#

 1
Common parts
90467-13001
90480-01144
90480-01170
90480-17011
90959-01031
90959-01124
91651-40614
91655-40616
91661-40614
96132-30600
96132-30800

ILLUST NO. 1 OF 2(8406- )

Click highlighted areas on diagram

diagram 2211 6105 6709 77011 77022 77022A 77022A 77023 77031 77031B 77033 77035 77100 77100A 77100B 77178 77201 77201A 77206 77206A 77213 77217A 77218A 77281A 77286 77290 77295 77308 77308A 77366 77377 77387 77611 77611 77611A 77652 77654 77654 77654 77654 77655 8401 9015950047 9015960060 9017905020 9017906007 9017910074 9018906006 9046055001 9046055001 9046814004 9165140614 9165140614 9165140620 9165561040 9338115010 9338115010 9338515014 9611210240 9613230400 9613230400
Part # Description Qty Price
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-22040

CV10

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

CV1#,SV1#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-32010

CV1#,SV1#

 1
77100 - TANK ASSY, FUEL
77001-39205

CV10,SV11

 1
77100A - PLUG(FOR FUEL TANK)
90341-20003

CV1#,SV1#

 1
77100B - GASKET(FOR FUEL TANK)
90430-20006

CV1#,SV1#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-13020

CV1#,SV1#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-32010

CV1#,SV1#

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-32030

CV10

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-32010

CV10,SV1#

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-32010

CV1#,SV1#

長さ=248

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-32010

CV1#,SV1#

 1
77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3
77218-32010

CV1#,SV1#

 1
77281A - CLAMP, FUEL FILLER PIPE
77281-32010

CV1#,SV1#

 1
77286 - PROTECTOR, FUEL TANK INLET PIPE
77277-32010

CV1#,SV1#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-32010

CV1#,SV1#

 1
77295 - SHIELD, FUEL FILLER PIPE
77293-32010

CV1#,SV1#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-32010

CV10,SV1#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05009

CV10,SV1#

 2
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-24010

CV1#,SV1#

 1
77387 - RING, FUEL INLET BOX
77391-32010

CV1#,SV1#

 1
77611 - BAND, FUEL TANK
77602-32010

CV10,SV1#

LH

 1
77601-32010

CV10,SV10

RH

 1
77611 - BAND, FUEL TANK
77602-32010

CV10,SV1#

LH

 1
77601-32010

CV10,SV10

RH

 1
77611A - PIN (FOR FUEL TANK BAND)
90240-08020

CV1#,SV1#

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-32020

CV1#,SV1#

 1
77654 - CUSHION, FUEL TANK, NO.2
77652-32010

CV1#,SV1#

 4
77654 - CUSHION, FUEL TANK, NO.2
77652-32010

CV1#,SV1#

 4
77654 - CUSHION, FUEL TANK, NO.2
77652-32010

CV1#,SV1#

 4
77654 - CUSHION, FUEL TANK, NO.2
77652-32010

CV1#,SV1#

 4
77655 - CUSHION, FUEL TANK, NO.3
77652-14060

CV1#,SV1#

 1
Common parts
90159-50047
90159-60060
90179-05020
90179-06007
90179-10074
90189-06006
90460-55001
90468-14004
91651-40614
91651-40620
91655-61040
93381-15010
93385-15014
96112-10240
96132-30400
Linked diagrams
2211
6105
6709
8401
