CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)VIS

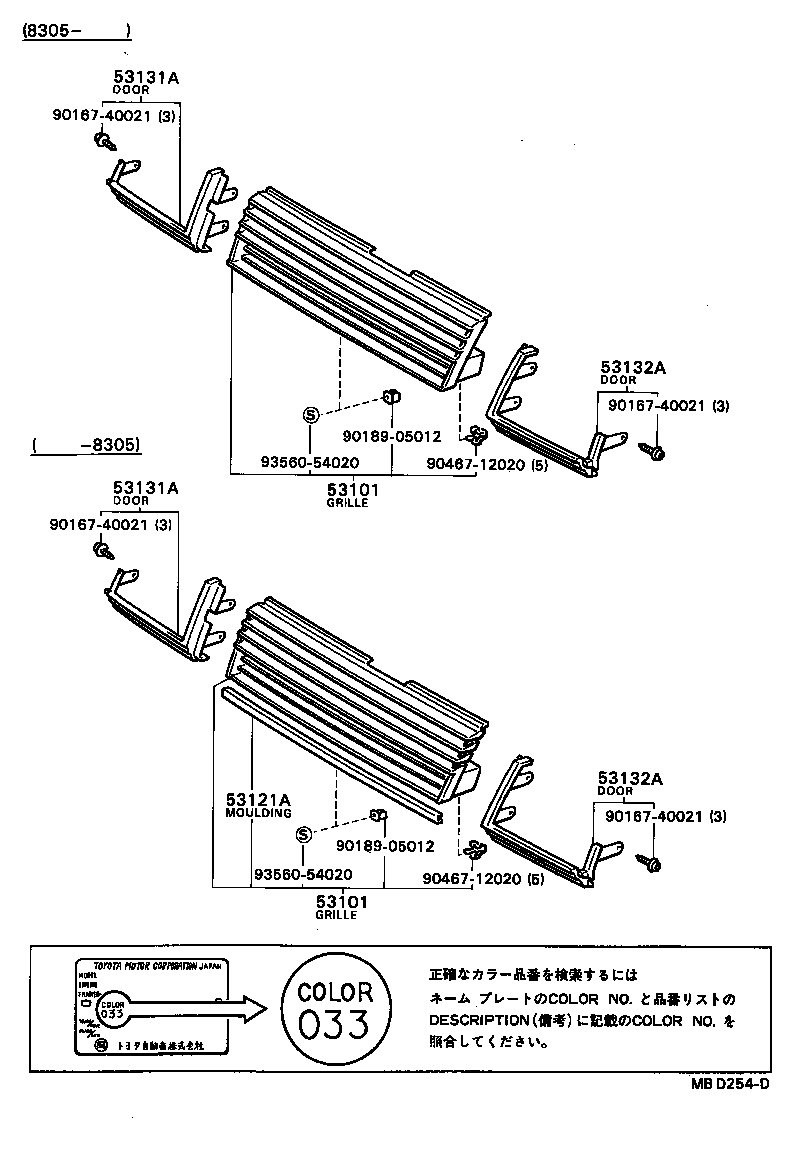

Click highlighted areas on diagram

diagram 53101 53101 53121A 53131A 53131A 53132A 53132A 9016740021 9016740021 9016740021 9016740021 9018905012 9018905012 9046712020 9046712020 9356054020 9356054020
Part # Description Qty Price
53131A - DOOR, HEADLAMP, RH
53131-39105

CV10,SV1#..VIS

 1
53131A - DOOR, HEADLAMP, RH
53131-39105

CV10,SV1#..VIS

 1
53132A - DOOR, HEADLAMP, LH
53132-39105

CV10,SV1#..VIS

 1
53132A - DOOR, HEADLAMP, LH
53132-39105

CV10,SV1#..VIS

 1
Common parts
90167-40021
90189-05012
90467-12020
93560-54020

(8406- )VIS

Click highlighted areas on diagram

diagram 53101 53131A 53132A 53138 53139 9018904014 9018905012 9046712020 9046717004 9354054012 9356054020
Part # Description Qty Price
53131A - DOOR, HEADLAMP, RH
53131-39105

CV10,SV1#..VIS

 1
53132A - DOOR, HEADLAMP, LH
53132-39105

CV10,SV1#..VIS

 1
Common parts
90189-04014
90189-05012
90467-12020
90467-17004
93540-54012
93560-54020
