CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

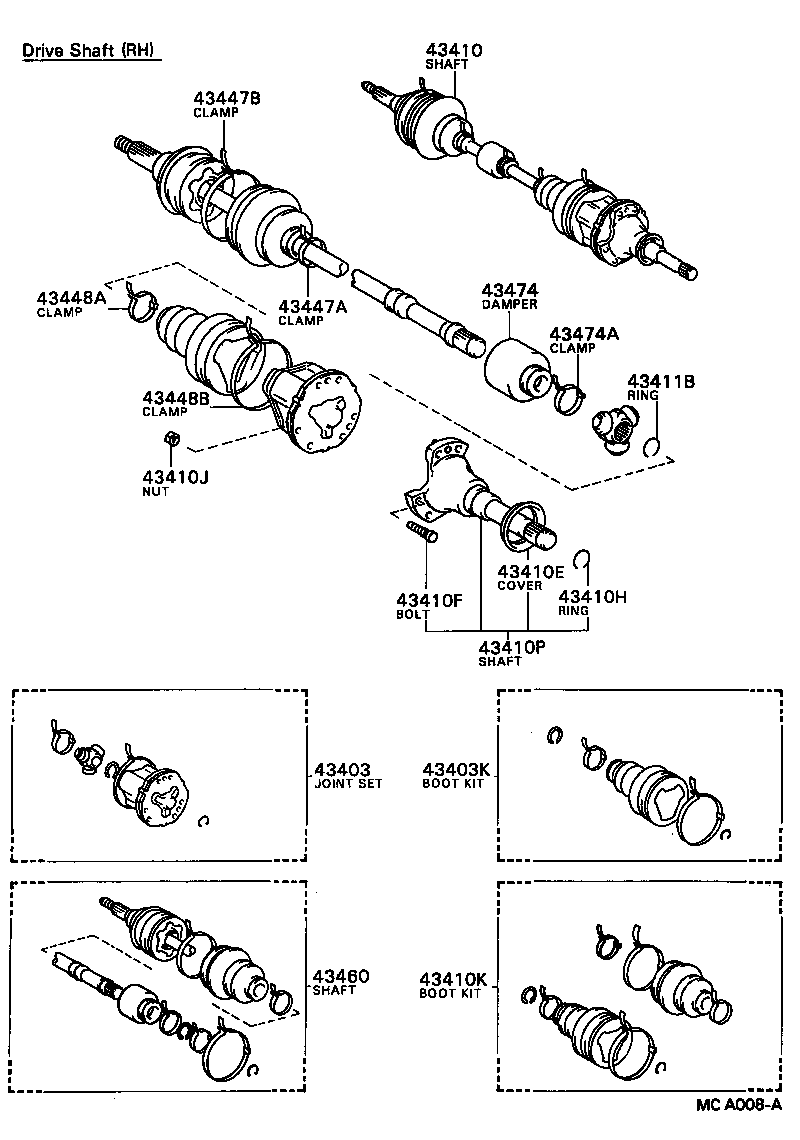

ILLUST NO. 1 OF 3(8308- )CV1#

Click highlighted areas on diagram

diagram 43403 43403K 43410 43410E 43410F 43410H 43410J 43410K 43410P 43411B 43447A 43447B 43448A 43448B 43460 43474 43474A
Part # Description Qty Price
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32021

CV10

 1
43410-32020

CV10

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-32020

CV1#,SV1#

LH

 1
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

CV1#,SV10,11

 12
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-27005

CV1#,SV1#

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

CV1#,SV10,11

 12
43410K - BOOT KIT, FRONT DRIVE SHAFT
04438-32030

CV10

 2
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

CV1#,SV10,11

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CV1#,SV10,11

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CV1#,SV10,11

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-39017

CV10

 1
43460-39018

CV10

 1
