CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

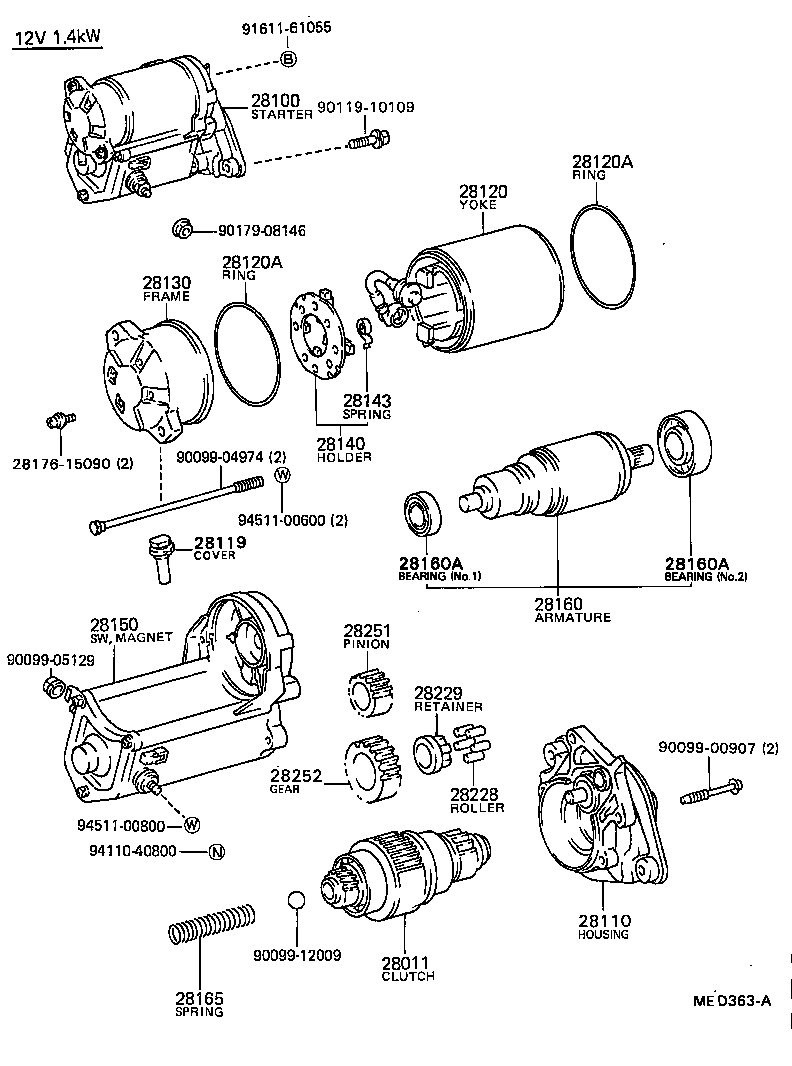

(8308- )1CTL,2CTL

Click highlighted areas on diagram

diagram 28011 28100 28110 28119 28120 28120A 28120A 28130 28140 28143 28150 28160 28160A 28160A 28165 2817615090 28228 28229 28251 28252 9009900907 9009904974 9009905129 9009912009 9011910109 9017908146 9161161055 9411040800 9451100600 9451100800
Part # Description Qty Price
28143 - SPRING, STARTER BRUSH
90099-17112

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW

 4
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 1
Common parts
28176-15090
90099-00907
90099-04974
90099-05129
90099-12009
90119-10109
90179-08146
91611-61055
94110-40800
94511-00600
94511-00800

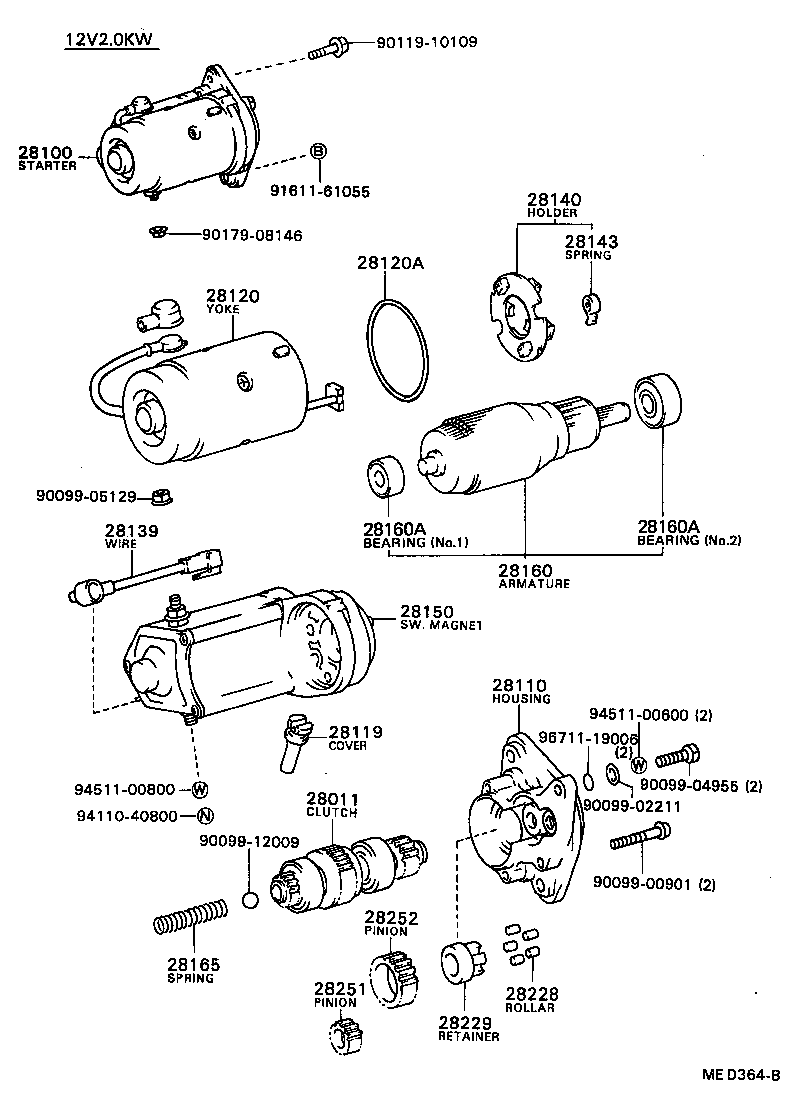

(8308- )1CTL,2CTL

Click highlighted areas on diagram

diagram 28011 28100 28110 28119 28120 28120A 28139 28140 28143 28150 28160 28160A 28160A 28165 28228 28229 28251 28252 9009900901 9009902211 9009904955 9009905129 9009912009 9011910109 9017908146 9161161055 9411040800 9451100600 9451100800 9671119006
Part # Description Qty Price
28143 - SPRING, STARTER BRUSH
90099-17112

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW

 4
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 1
Common parts
90099-00901
90099-02211
90099-04955
90099-05129
90099-12009
90119-10109
90179-08146
91611-61055
94110-40800
94511-00600
94511-00800
96711-19006

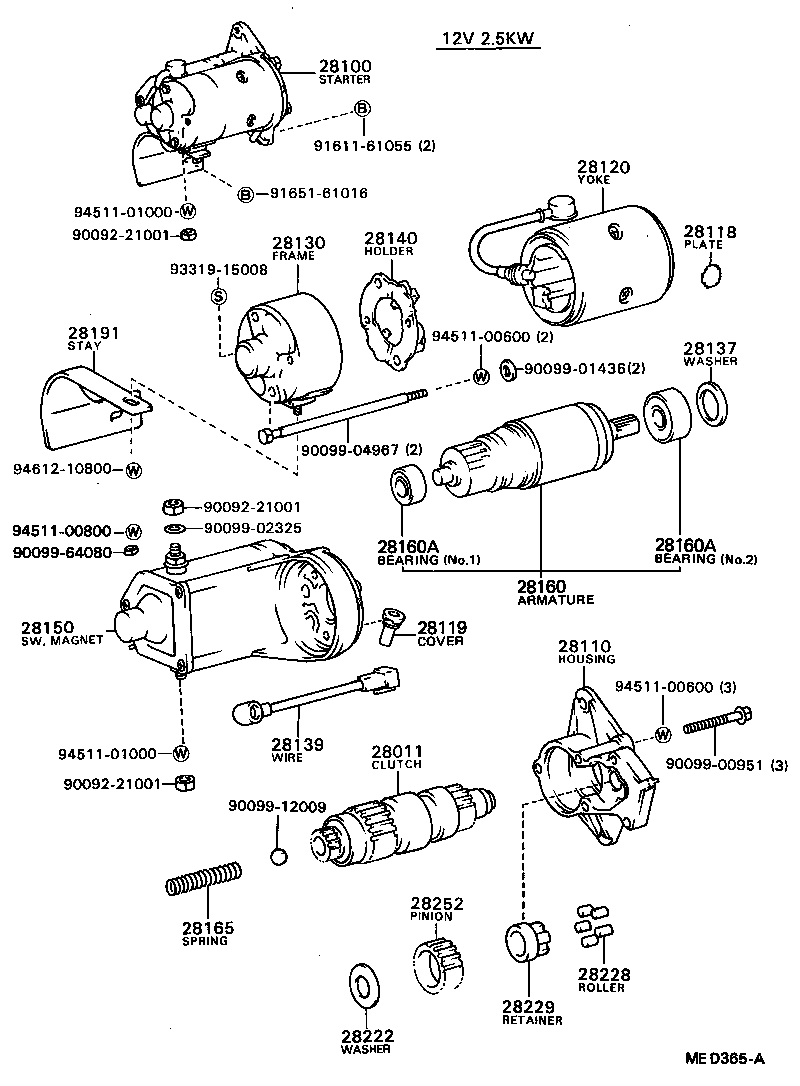

(8308- )1CTL,2CTL

Click highlighted areas on diagram

diagram 28011 28100 28110 28118 28119 28120 28130 28137 28139 28140 28150 28160 28160A 28160A 28165 28191 28222 28228 28229 28252 9009221001 9009221001 9009221001 9009900951 9009901436 9009902325 9009904967 9009912009 9009964080 9161161055 9165161016 9331915008 9451100600 9451100600 9451100800 9451101000 9451101000 9461210800
Part # Description Qty Price
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

1CTL,2CTL,1S#,2SELU,3SGELU..CV1#,SV1#

12V 1.0KW,1.4KW,2.0KW

 1
Common parts
90092-21001
90099-00951
90099-01436
90099-02325
90099-04967
90099-12009
90099-64080
91611-61055
91651-61016
93319-15008
94511-00600
94511-00800
94511-01000
94612-10800
