CV10-UEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

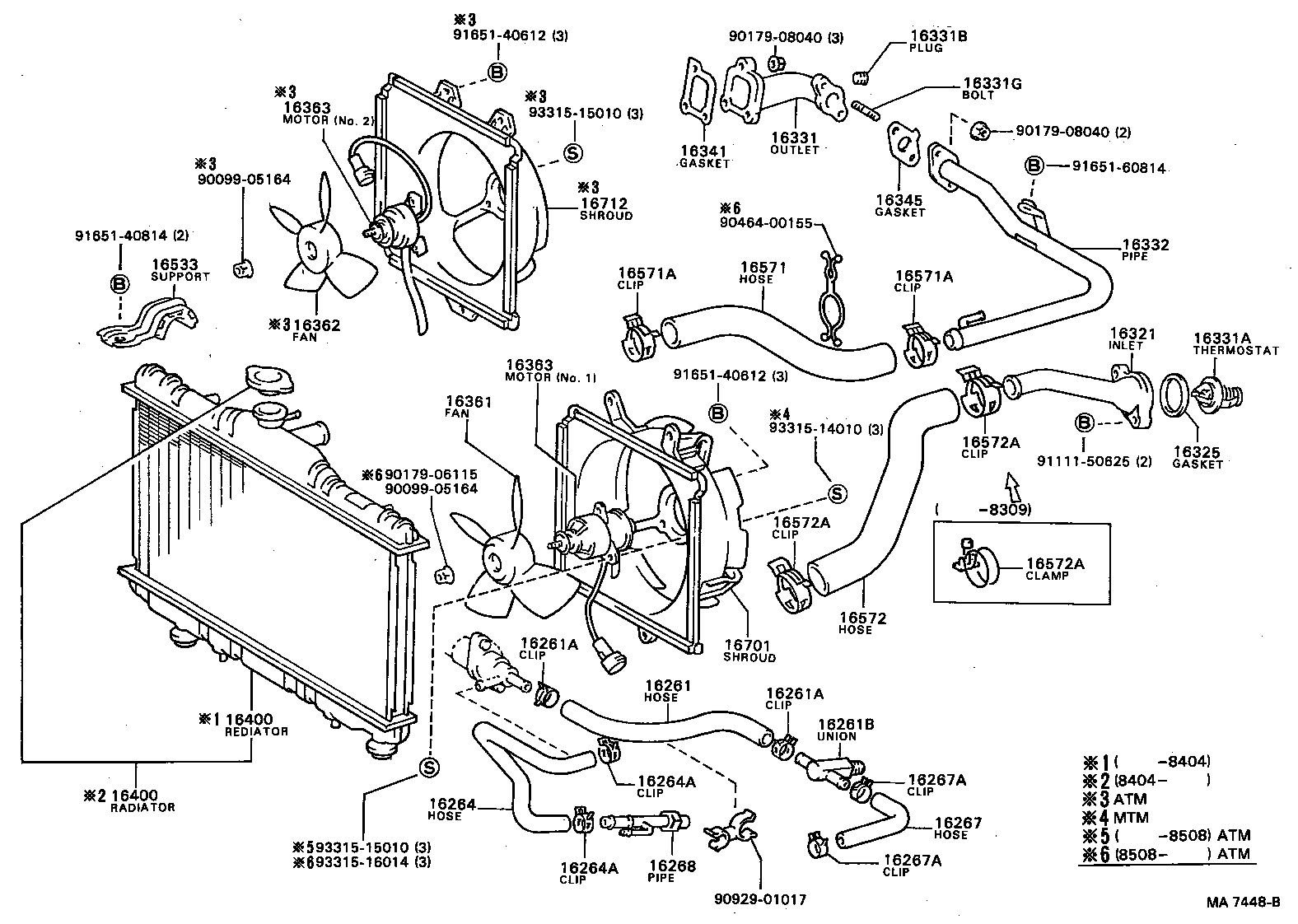

ILLUST NO. 1 OF 2(8308- )1CTL,2CTL

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16264 16264A 16264A 16267 16267A 16267A 16268 16321 16325 16331 16331A 16331B 16331G 16332 16341 16345 16361 16362 16363 16363 16400 16400 16533 16571 16571A 16571A 16572 16572A 16572A 16572A 16701 16712 9009905164 9009905164 9017906115 9017908040 9017908040 9046400155 9092901017 9111150625 9165140612 9165140612 9165140814 9165160814 9331514010 9331515010 9331515010 9331516014
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-64030

1CTL..CV10

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-64031

1CTL..CV10

 1
16264-64030

1CTL..CV10

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-64020

1CTL..CV10

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

1CTL,2CTL..CV1#

 1
16331A - THERMOSTAT
90916-03046

1CTL,2CTL..CV1#

*WAX 82−95,*WAX82-95

 1
16331B - PLUG(FOR WATER OUTLET)
90344-53011

1CTL,2CTL..CV1#

 2
16361 - FAN
16361-64020

1CTL..CV10..5F

 1
16363 - MOTOR, COOLING FAN
16363-63030

1CTL..CV10

NO.1

 1
16363 - MOTOR, COOLING FAN
16363-63030

1CTL..CV10

NO.1

 1
16400 - RADIATOR ASSY
16410-64090

1CTL..CV10..5F

 1
16400 - RADIATOR ASSY
16410-64090

1CTL..CV10..5F

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-64020

1CTL..CV10

 2
16533-64020

1CTL..CV10..5F

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001

1CTL..CV10

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001

1CTL..CV10

 2
16572 - HOSE, RADIATOR, OUTLET
16572-64060

1CTL..CV10

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34002

1CTL..CV10

RADIATOR SIDE

 1
96111-10450

1CTL..CV10

INLET SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34002

1CTL..CV10

RADIATOR SIDE

 1
96111-10450

1CTL..CV10

INLET SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34002

1CTL..CV10

RADIATOR SIDE

 1
96111-10450

1CTL..CV10

INLET SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-64070

1CTL..CV10

 1
Common parts
90099-05164
90179-06115
90179-08040
90464-00155
90929-01017
91111-50625
91651-40612
91651-40814
91651-60814
93315-14010
93315-15010
93315-16014
