CV10-JEPNX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

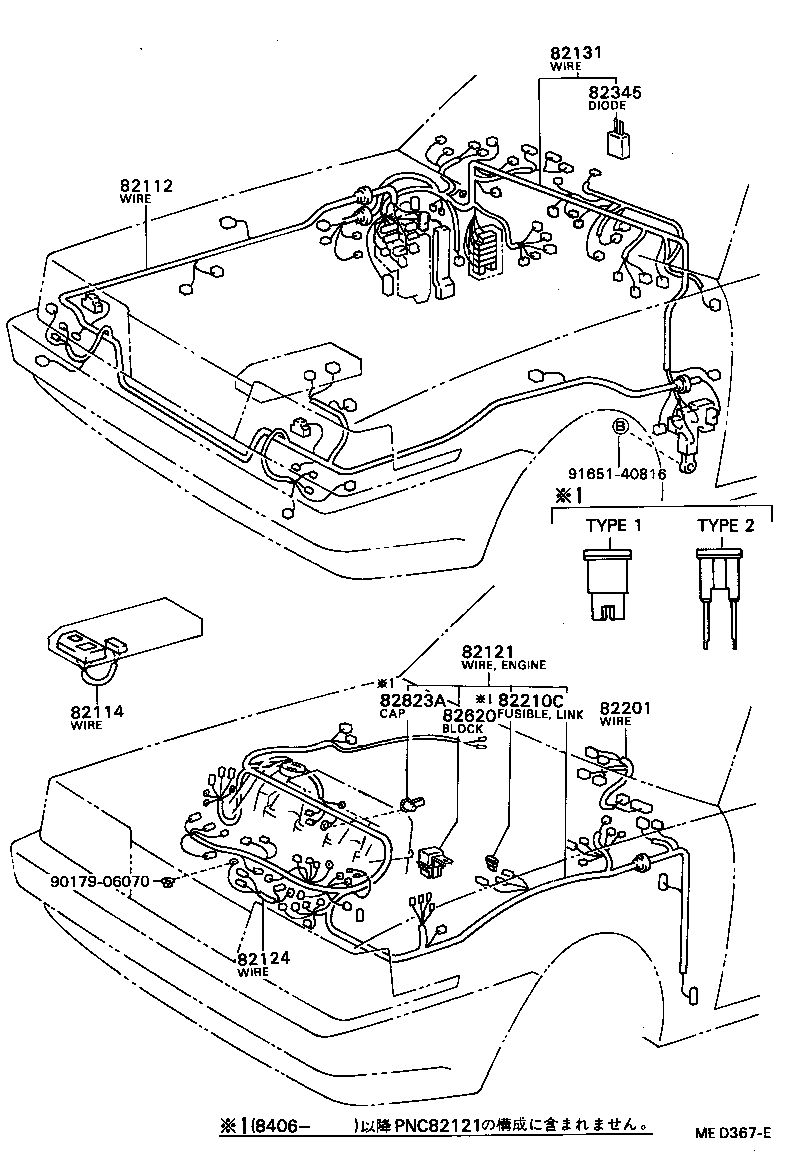

ILLUST NO. 1 OF 5(8308- )CV1#

Click highlighted areas on diagram

diagram 82112 82114 82121 82124 82131 82201 82210C 82345 82620 82823A 9017906070 9165140816
Part # Description Qty Price
82112 - WIRE, ENGINE ROOM, NO.2
82112-32120

CV10

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-32010

CV1#,SV1#

W/COOLER

 1
82121 - WIRE, ENGINE
82121-32150

CV10

 1
82121-32300

CV10

 1
82124 - WIRE, ENGINE, NO.4
82124-12020

CV10

 1
82131 - WIRE, COWL
82131-32340

CV10..VL,XT

 1
82131-32700

CV10..VL,XT

 1
82131-32480

CV10..XT

SALOON

 1
82210C - FUSIBLE LINK
90982-08202

CV10

60A,ｵｽ端子,黄,60A

 1
90982-08188

CV1#,SV1#

30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,TYPE 1

 2
90982-08223

CV10,SV10

30A,ｵｽ端子,ﾋﾟﾝｸ,30A,TYPE 2

 1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-32020

CV10

 1
Common parts
90179-06070
91651-40816
