CV10-JEPEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1CTL,2CTL

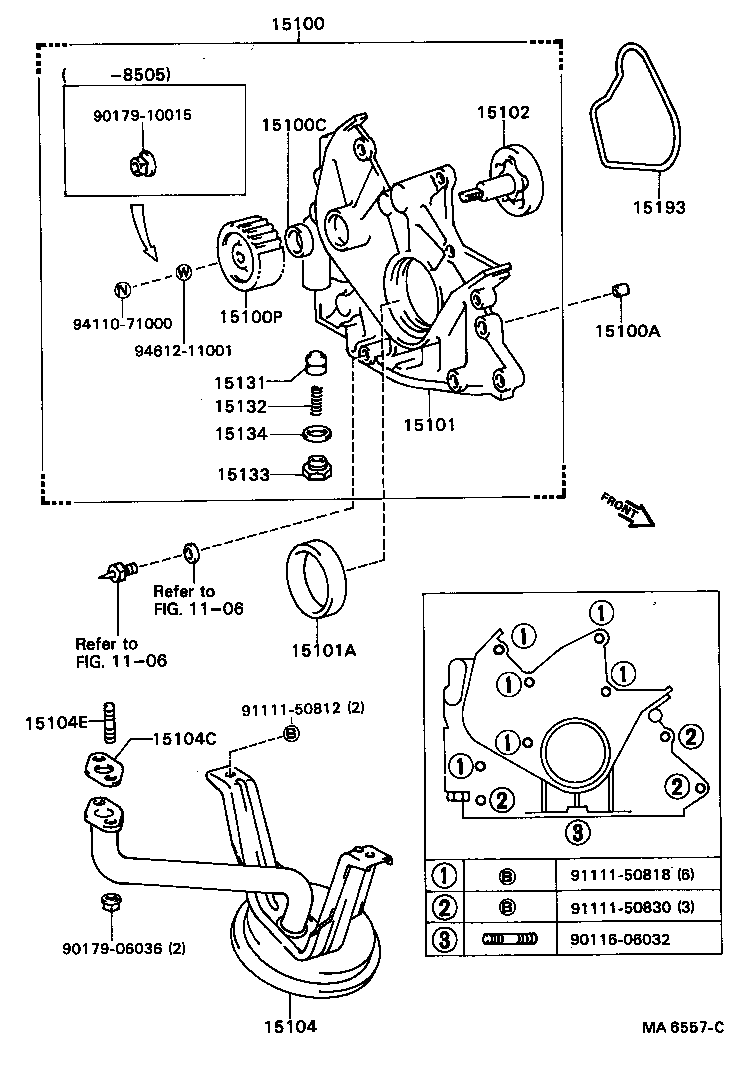

Click highlighted areas on diagram

diagram 1106 1106 15100 15100A 15100C 15100P 15101 15101A 15102 15104 15104C 15104E 15131 15132 15133 15134 15193 9011606032 9017906036 9017910015 9111150812 9111150818 9111150830 9411071000 9461211001
Part # Description Qty Price
15100C - SEAL(FOR OIL PUMP)
15165-64010

1CTL..CV10

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42003

1CTL..CV10

 1
15104 - STRAINER SUB-ASSY, OIL
15104-64020

1CTL..CV10

 1
Common parts
90116-06032
90179-06036
90179-10015
91111-50812
91111-50818
91111-50830
94110-71000
94612-11001
Linked diagrams
1106
