CV10-JEMNX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

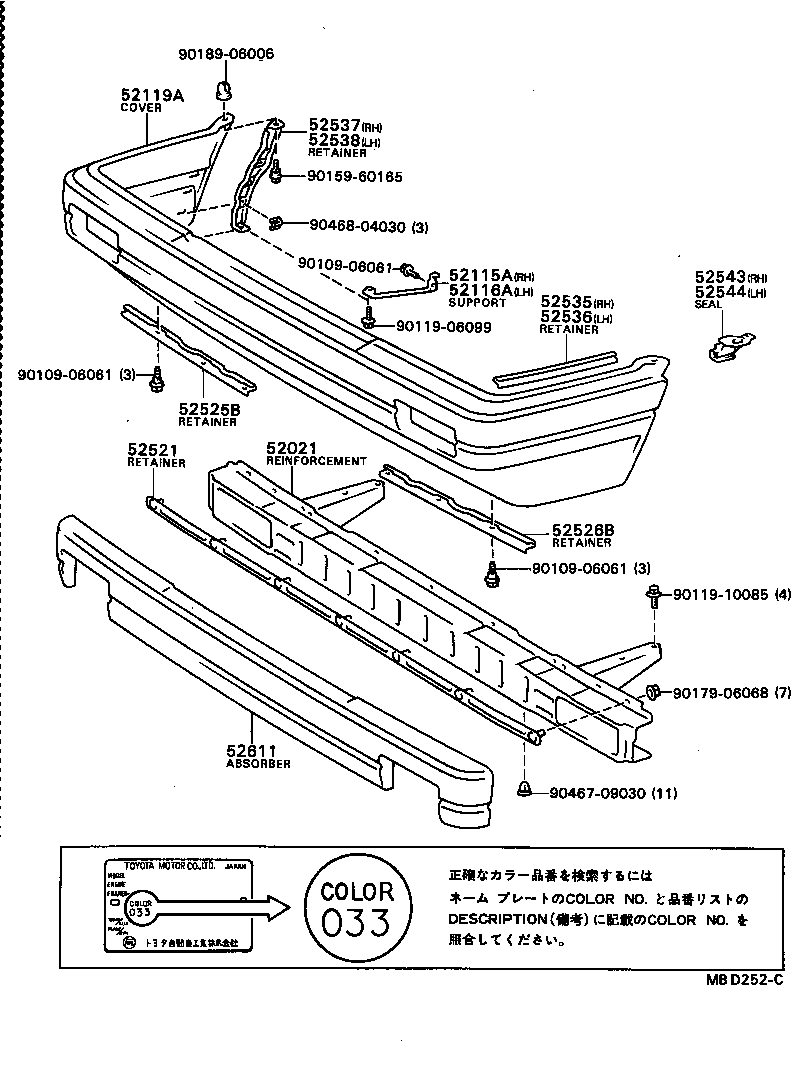

(8203-8406)

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52525B 52526B 52535 52536 52537 52538 52543 52544 52611 9010906061 9010906061 9010906061 9011906099 9011910085 9015960165 9017906068 9018906006 9046709030 9046804030
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-32010

CV10,SV1#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-32010

CV1#,SV1#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-32010

CV1#,SV1#

 1
52119A - COVER, FRONT BUMPER
52119-32020

CV10,SV1#..LT,XT

BLACK

 1
52119-3211005

CV10,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX

*UB,BEIGE-M,LIGHT BEIGE,4D2 ,2T0

 1
52119-3211003

CV10,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX

*UB,SILVER-M,SILVER METALLIC,148

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-32010

CV10,SV1#

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-32010

CV10,SV1#

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52527-32010

CV10,SV1#

 1
52537 - RETAINER, FRONT BUMPER END, RH
52537-32010

CV10,SV1#..CAM

 1
52538 - RETAINER, FRONT BUMPER END, LH
52538-32010

CV10,SV1#..CAM

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-32010

CV10,SV1#..CAM

 1
Common parts
90109-06061
90119-06099
90119-10085
90159-60165
90179-06068
90189-06006
90467-09030
90468-04030

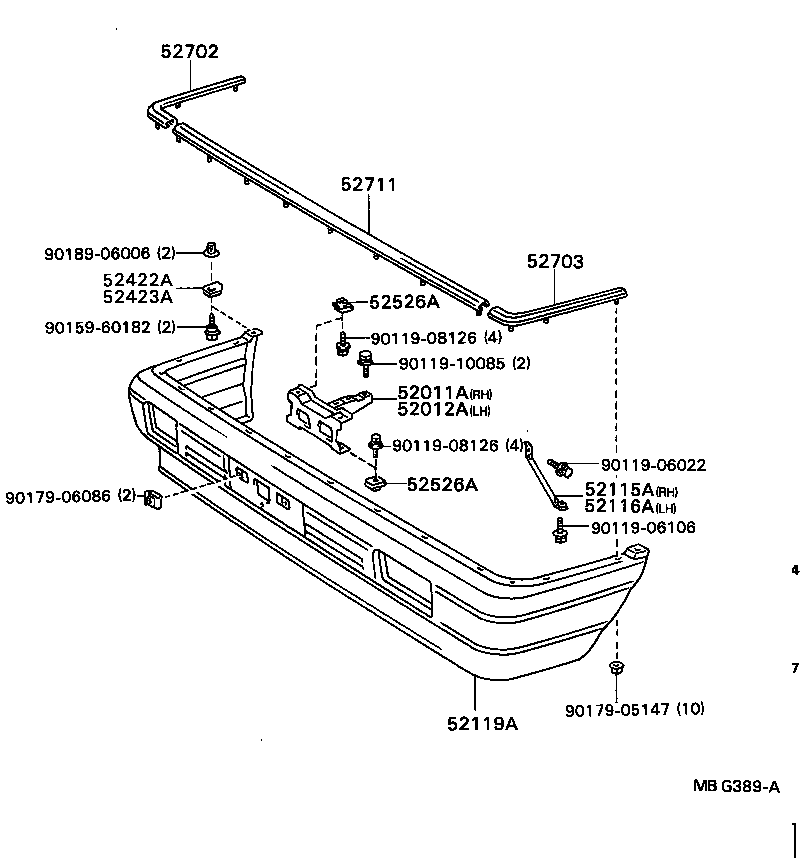

(8406- )LT,VC,VL,XT

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52422A 52423A 52526A 52526A 52702 52703 52711 9011906022 9011906106 9011908126 9011908126 9011910085 9015960182 9017905147 9017906086 9018906006
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-32010

CV1#,SV1#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-32010

CV1#,SV1#

 1
52119A - COVER, FRONT BUMPER
52119-32020

CV10,SV1#..LT,XT

BLACK

 1
52119-3211005

CV10,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX

*UB,BEIGE-M,LIGHT BEIGE,4D2 ,2T0

 1
52119-3211003

CV10,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX

*UB,SILVER-M,SILVER METALLIC,148

 1
Common parts
90119-06022
90119-06106
90119-08126
90119-10085
90159-60182
90179-05147
90179-06086
90189-06006

(8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52422A 52423A 52521 52526A 52535 52536 52537 52538 52539 52549 52611 52702 52703 52711 7601 7601 7601 7601 7601 9010906061 9011906022 9011906099 9011906106 9011910085 9015960165 9017905012 9017905147 9017905147 9017906068 9018906006 9046709030 9046804030
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-32010

CV10,SV1#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-32010

CV1#,SV1#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-32010

CV1#,SV1#

 1
52119A - COVER, FRONT BUMPER
52119-32020

CV10,SV1#..LT,XT

BLACK

 1
52119-3211005

CV10,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX

*UB,BEIGE-M,LIGHT BEIGE,4D2 ,2T0

 1
52119-3211003

CV10,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX

*UB,SILVER-M,SILVER METALLIC,148

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-32010

CV10,SV1#

 1
52537 - RETAINER, FRONT BUMPER END, RH
52537-32010

CV10,SV1#..CAM

 1
52538 - RETAINER, FRONT BUMPER END, LH
52538-32010

CV10,SV1#..CAM

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-32010

CV10,SV1#..CAM

 1
Common parts
90109-06061
90119-06022
90119-06099
90119-06106
90119-10085
90159-60165
90179-05012
90179-05147
90179-06068
90189-06006
90467-09030
90468-04030
Linked diagrams
7601
