CV10-JEMNX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

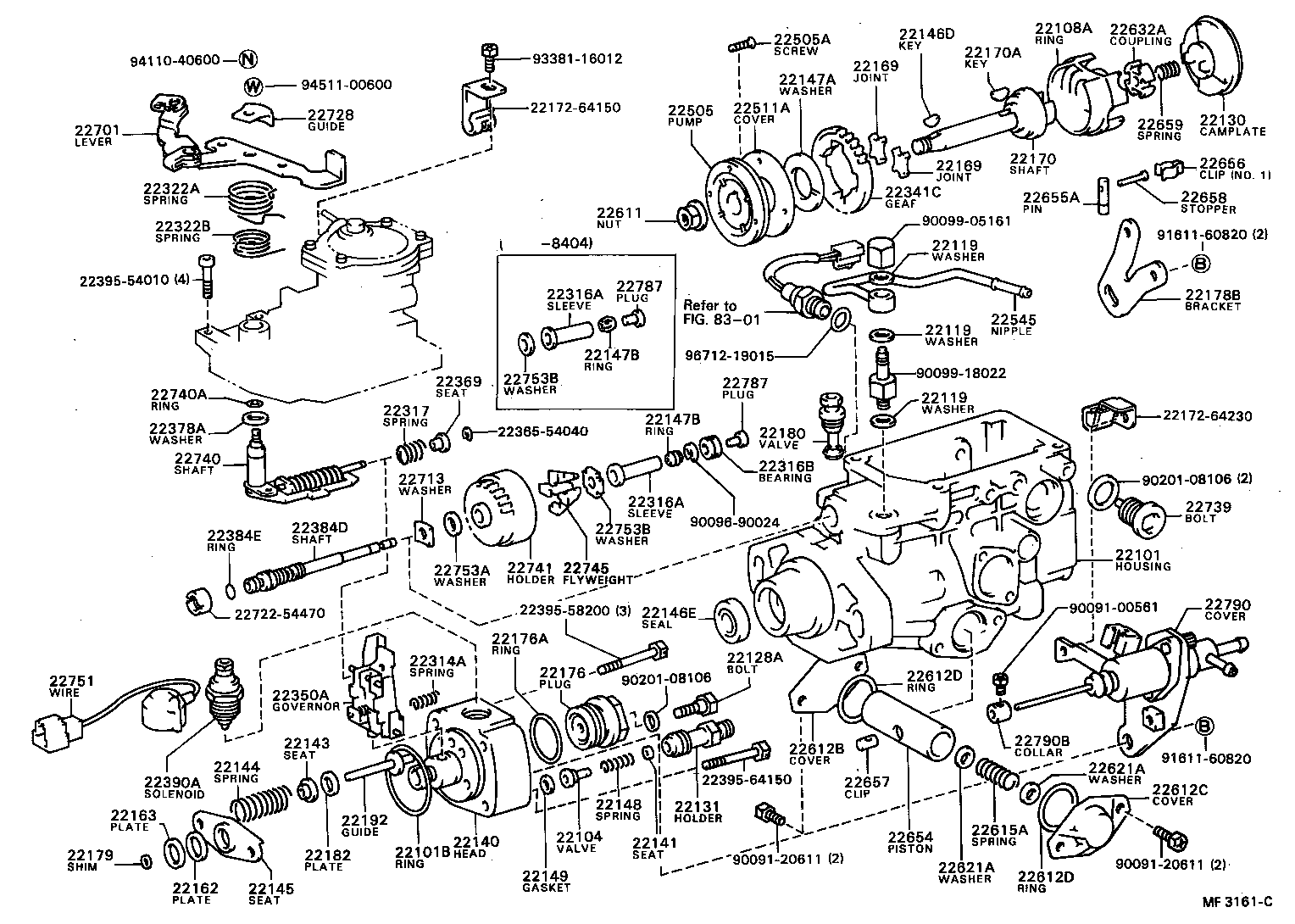

ILLUST NO. 1 OF 2(8308-8508)1CTL

Click highlighted areas on diagram

diagram 22101 22101B 22104 22108A 22119 22119 22119 22128A 22130 22131 22140 22141 22143 22144 22145 22146D 22146E 22147A 22147B 22147B 22148 22149 22162 22163 22169 22169 22170 22170A 2217264150 2217264230 22176 22176A 22178B 22179 22180 22182 22192 22314A 22316A 22316A 22316B 22317 22322A 22322B 22341C 22350A 2236554040 22369 22378A 22384D 22384E 22390A 2239554010 2239558200 2239564150 22505 22505A 22511A 22545 22611 22612B 22612C 22612D 22612D 22615A 22621A 22621A 22632A 22654 22655A 22656 22657 22658 22659 22701 22713 2272254470 22728 22739 22740 22740A 22741 22745 22751 22753A 22753B 22753B 22787 22787 22790 22790B 8301 9009100561 9009120611 9009120611 9009690024 9009905161 9009918022 9020108106 9020108106 9161160820 9161160820 9338116012 9411040600 9451100600 9671219015
Part # Description Qty Price
22101 - HOUSING SUB-ASSY, INJECTION PUMP
22101-64250

1CTL..CV10

 1
22108A - RING SUB-ASSY, ROLLER
22108-54010

1CTL..CV10

 1
22131 - HOLDER, DELIVERY VALVE
22131-54110

1CTL..CV10

 4
22141 - SEAT, DELIVERY VALVE SPRING
22141-54010

1CTL..CV10

 4
22146E - SEAL(FOR DRIVE SHAFT)
90099-15028

1CTL..CV10

 1
22147B - RING, GOVERNOR SLEEVE
22147-54010

1CTL..CV10

 1
22147B - RING, GOVERNOR SLEEVE
22147-54010

1CTL..CV10

 1
22316A - SLEEVE, GOVERNOR
22316-64360

1CTL..CV10

 1
22316-64010

1CTL..CV10

 1
22316A - SLEEVE, GOVERNOR
22316-64360

1CTL..CV10

 1
22316-64010

1CTL..CV10

 1
22317 - SPRING, GOVERNOR DOMPER
22317-64030

1CTL..CV10

 1
22322A - SPRING, RETURN
22322-64361

1CTL..CV10

 1
22350A - GOVERNOR ASSY, TORQUE CONTROL
22350-64010

1CTL..CV10

 1
22369 - SEAT, GOVERNOR SPRING
22369-54080

1CTL..CV10

 1
22378A - WASHER, GOVERNOR THRUST
22378-54010

1CTL..CV10

 1
22621A - WASHER, TIMER ADJUSTING
22624-54010

1CTL..CV10

厚さ=0.2,T=0.2

 1
22621-54010

1CTL..CV10

厚さ=0.5,T=0.5

 1
22622-54010

1CTL..CV10

厚さ=1.0,T=1.0

 1
22621A - WASHER, TIMER ADJUSTING
22624-54010

1CTL..CV10

厚さ=0.2,T=0.2

 1
22621-54010

1CTL..CV10

厚さ=0.5,T=0.5

 1
22622-54010

1CTL..CV10

厚さ=1.0,T=1.0

 1
22654 - PISTON, TIMER
22654-64360

1CTL..CV10

 1
22656 - CLIP, TIMER
22656-54260

1CTL..CV10

NO.2

 1
22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22302-64510

1CTL..CV10

 1
22753B - WASHER, FLYWEIGHT, NO.2
22753-54020

1CTL..CV10

 1
22753B - WASHER, FLYWEIGHT, NO.2
22753-54020

1CTL..CV10

 1
22787 - PLUG, GOVERNOR SLEEVE
22787-54012

1CTL..CV10

長さ=6.3,L=6.3

 1
22787-54010

1CTL..CV10

長さ=5.9,L=5.9

 1
22787-54019

1CTL..CV10

長さ=4.5,L=4.5

 1
22787-54020

1CTL..CV10

長さ=4.7,L=4.7

 1
22787-54011

1CTL..CV10

長さ=6.1,L=6.1

 1
22787-54023

1CTL..CV10

長さ=5.3,L=5.3

 1
22787-54018

1CTL..CV10

長さ=4.3,L=4.3

 1
22787-54024

1CTL..CV10

長さ=5.5,L=5.5

 1
22787-54021

1CTL..CV10

長さ=4.9,L=4.9

 1
22787-54022

1CTL..CV10

長さ=5.1,L=5.1

 1
22787-54025

1CTL..CV10

長さ=5.7,L=5.7

 1
22787 - PLUG, GOVERNOR SLEEVE
22787-54012

1CTL..CV10

長さ=6.3,L=6.3

 1
22787-54010

1CTL..CV10

長さ=5.9,L=5.9

 1
22787-54019

1CTL..CV10

長さ=4.5,L=4.5

 1
22787-54020

1CTL..CV10

長さ=4.7,L=4.7

 1
22787-54011

1CTL..CV10

長さ=6.1,L=6.1

 1
22787-54023

1CTL..CV10

長さ=5.3,L=5.3

 1
22787-54018

1CTL..CV10

長さ=4.3,L=4.3

 1
22787-54024

1CTL..CV10

長さ=5.5,L=5.5

 1
22787-54021

1CTL..CV10

長さ=4.9,L=4.9

 1
22787-54022

1CTL..CV10

長さ=5.1,L=5.1

 1
22787-54025

1CTL..CV10

長さ=5.7,L=5.7

 1
22790 - COVER SUB-ASSY, TIMER
22601-64160

1CTL..CV10

 1
22601-64150

1CTL..CV10

 1
22790B - COLLAR(FOR TIMER COVER)
22674-64150

1CTL..CV10

 1
Common parts
22172-64150
22172-64230
22365-54040
22395-54010
22395-58200
22395-64150
22722-54470
90091-00561
90091-20611
90096-90024
90099-05161
90099-18022
90201-08106
91611-60820
93381-16012
94110-40600
94511-00600
96712-19015
Linked diagrams
8301

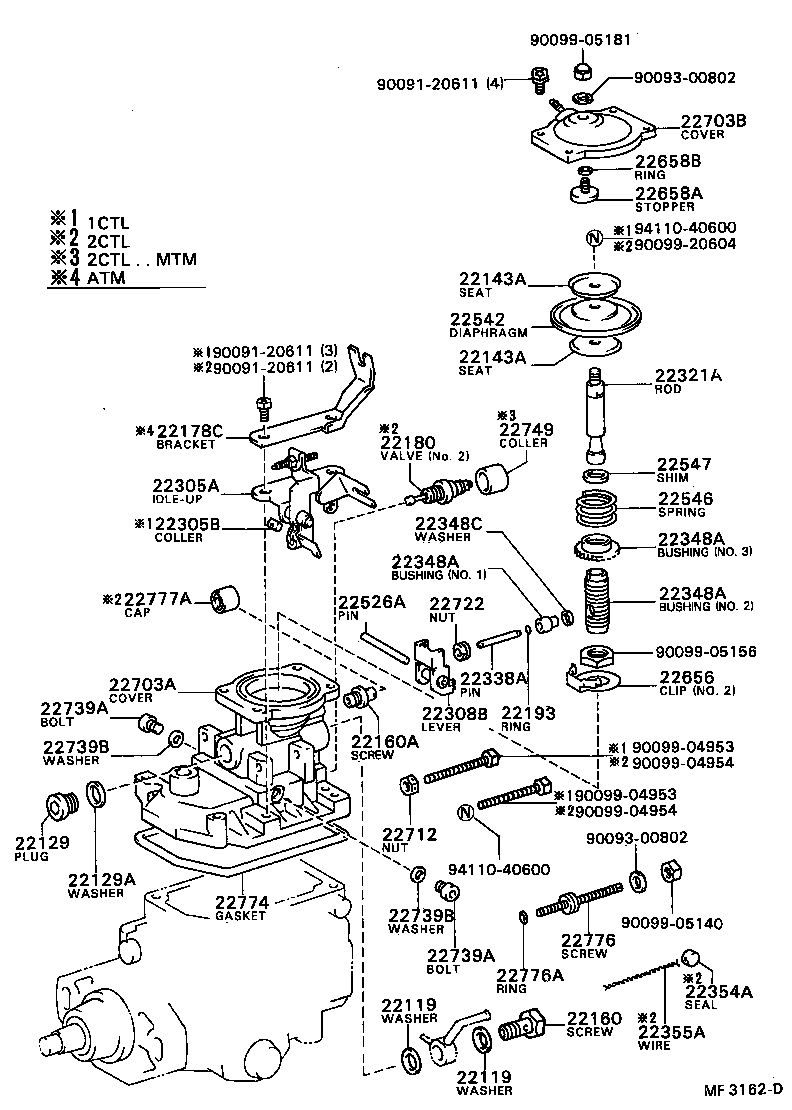

ILLUST NO. 2 OF 2(8308- )1CTL,2CTL

Click highlighted areas on diagram

diagram 22119 22119 22129 22129A 22143A 22143A 22160 22160A 22178C 22180 22193 22305A 22305B 22308B 22321A 22338A 22348A 22348A 22348A 22348C 22354A 22355A 22526A 22542 22546 22547 22656 22658A 22658B 22703A 22703B 22712 22722 22739A 22739A 22739B 22739B 22749 22774 22776 22776A 22777A 9009120611 9009120611 9009120611 9009300802 9009300802 9009904953 9009904953 9009904954 9009904954 9009905140 9009905156 9009905181 9009920604 9411040600 9411040600
Part # Description Qty Price
22160A - SCREW SUB-ASSY, OVER FLOW, NO.2
22160-54260

1CTL..CV10

 1
22305A - IDLE-UP SUB-ASSY
22305-64150

1CTL..CV10

 1
22305B - COLLAR(FOR IDLE-UP)
22674-64151

1CTL..CV10

 1
22308B - LEVER SUB-ASSY, CONTROL
22308-54120

1CTL..CV10

 1
22321A - ROD, PUSH
22321-64360

1CTL..CV10

 1
22348A - BUSHING, GUIDE
22348-54270

1CTL..CV10

NO.3

 1
22348A - BUSHING, GUIDE
22348-54270

1CTL..CV10

NO.3

 1
22348A - BUSHING, GUIDE
22348-54270

1CTL..CV10

NO.3

 1
22546 - SPRING, BOOST COMPENSATOR
22546-64360

1CTL..CV10

ﾊﾞﾈ定数=1.20,長さ=19.9

 1
22656 - CLIP, TIMER
22656-54260

1CTL..CV10

NO.2

 1
22703A - COVER SUB-ASSY, GOVERNOR
22703-64360

1CTL..CV10

 1
22703B - COVER, GOVERNOR
22703-64520

1CTL..CV10

 1
Common parts
90091-20611
90093-00802
90099-04953
90099-04954
90099-05140
90099-05156
90099-05181
90099-20604
94110-40600
