CV10-JEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1CTL,2CTL

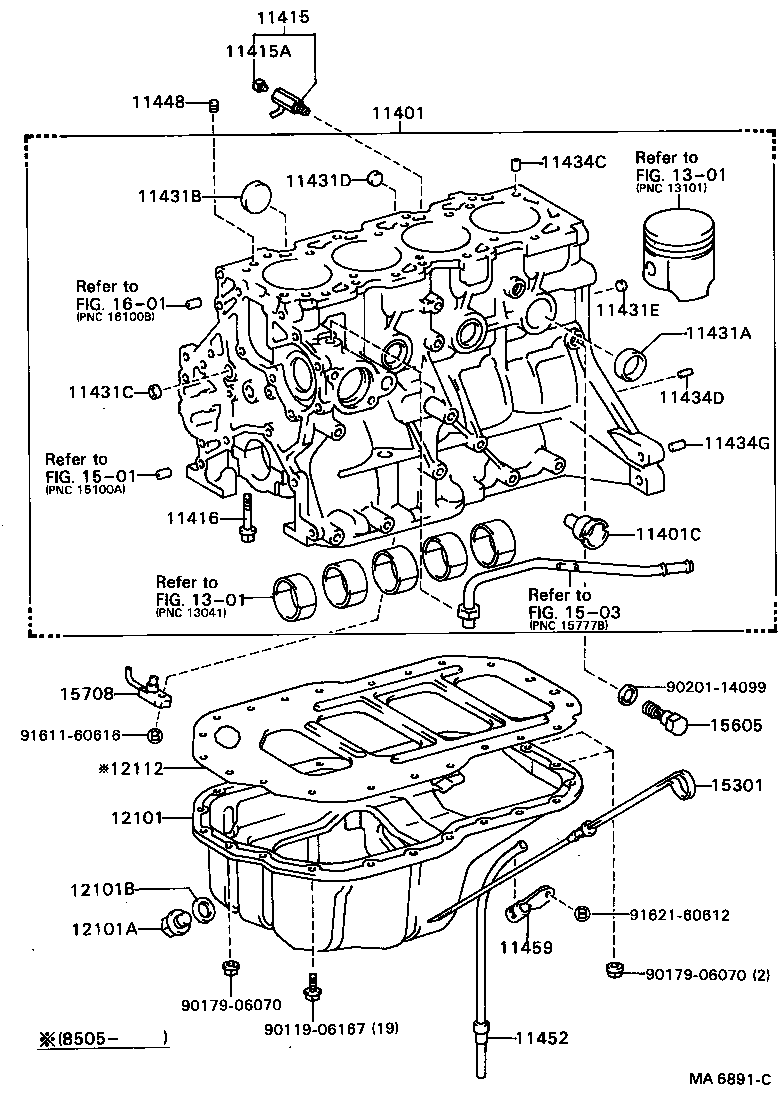

Click highlighted areas on diagram

diagram 11401 11401C 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 12112 1301 1301 1501 1503 15301 15605 15708 1601 9011906167 9017906070 9017906070 9020114099 9161160616 9162160612
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69155

1CTL..CV10

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

1CTL..CV10

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-10023

1CTL..CV10

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1CTL,2CTL..CV1#

OD=35

 8
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1CTL,2CTL..CV1#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1CTL..CV10

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-64010

1CTL..CV10

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-64010

1CTL..CV10

 4
Common parts
90119-06167
90179-06070
90201-14099
91611-60616
91621-60612
Linked diagrams
1301
1501
1503
1601
