CV10-JEMEX (1983)

Toyota Camry/Vista

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1CTL,2CTL

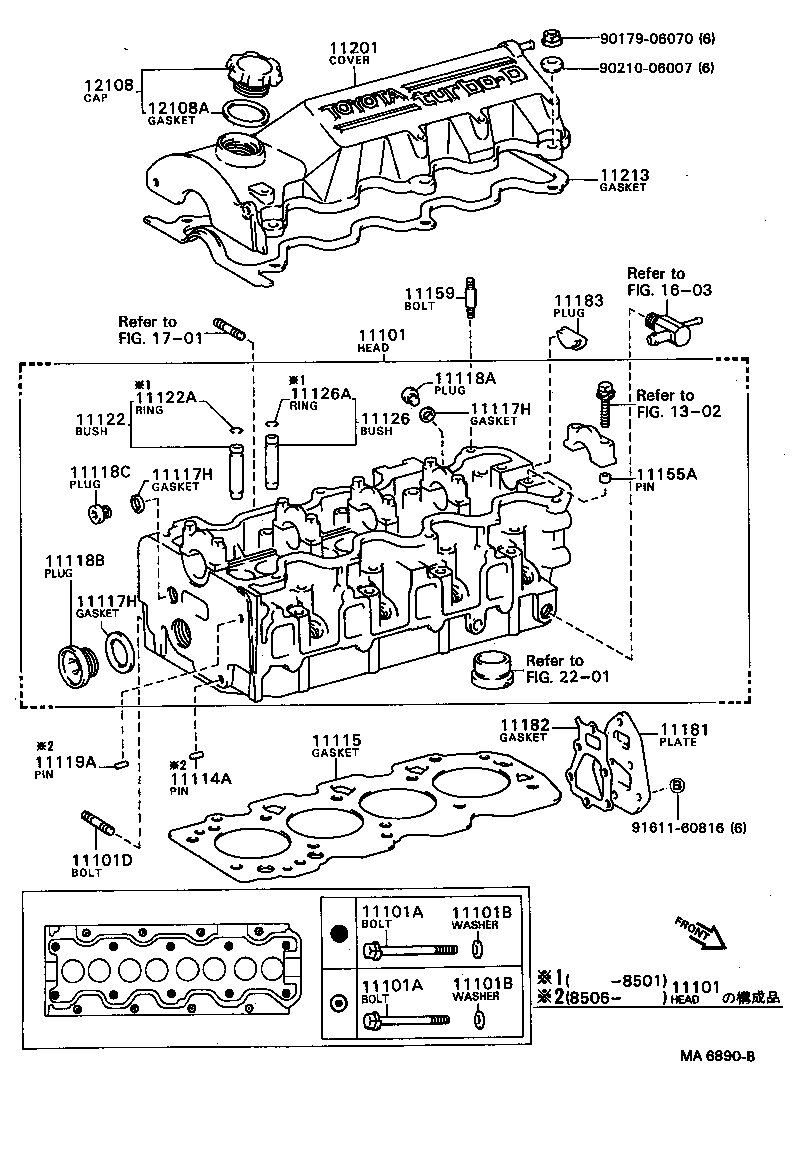

Click highlighted areas on diagram

diagram 11101 11101 11101A 11101A 11101B 11101B 11101D 11114A 11115 11117H 11117H 11117H 11118A 11118B 11118C 11119A 11122 11122A 11126 11126A 11155A 11159 11181 11182 11183 11201 11213 12108 12108A 1302 1603 1701 2201 9017906070 9021006007 9161160816
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-64030

1CTL..CV10

 1
11101-64031

1CTL..CV10

 1
11101 - HEAD SUB-ASSY, CYLINDER
11101-64030

1CTL..CV10

 1
11101-64031

1CTL..CV10

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-11012

1CTL..CV10

*11-1.25PX145-30

 10
90105-11011

1CTL..CV10

*11-1.25PX123-30

 8
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-11012

1CTL..CV10

*11-1.25PX145-30

 10
90105-11011

1CTL..CV10

*11-1.25PX123-30

 8
11115 - GASKET, CYLINDER HEAD
11115-64070

1CTL..CV10

 1
11115-64050

1CTL..CV10

 1
11117H - GASKET(FOR WATER HOLE)
90430-12005

1CTL..CV10

PNC 11118C

 2
11117H - GASKET(FOR WATER HOLE)
90430-12005

1CTL..CV10

PNC 11118C

 2
11117H - GASKET(FOR WATER HOLE)
90430-12005

1CTL..CV10

PNC 11118C

 2
11122 - BUSH, INTAKE VALVE GUIDE
11126-24020

1CTL..CV10

STD

 4
11127-24020

1CTL..CV10

O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

1CTL..CV10

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-24020

1CTL..CV10

STD

 4
11126-64020

1CTL..CV10

STD

 4
11127-24020

1CTL..CV10

O/S 0.05

 4
11127-64020

1CTL..CV10

O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

1CTL..CV10

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-64040

1CTL..CV10

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1CTL,2CTL..CV1#

 1
Common parts
90179-06070
90210-06007
91611-60816
Linked diagrams
1302
1603
1701
2201
