J122E-GPZF (2000)
Toyota Cami
Production
May 2000
-
Dec 2005
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )

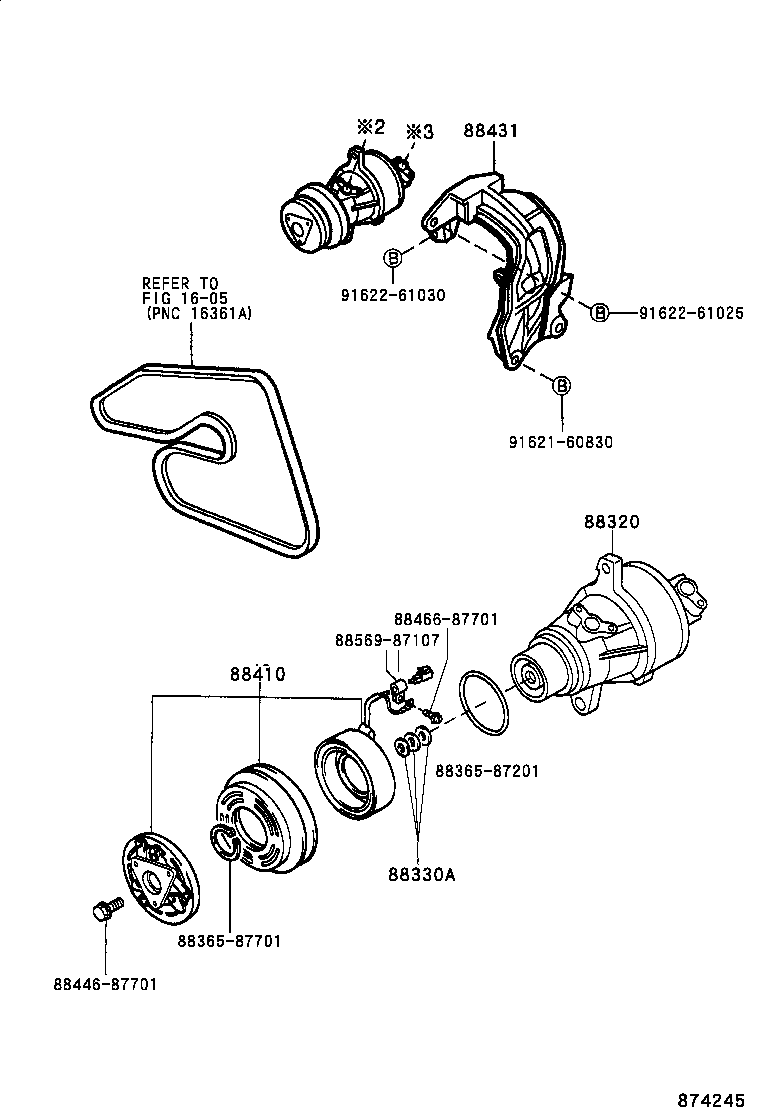

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-97208 |
J102,122 |
1 | ||
| 88320-97201 |
J102,122 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88318-87704 |
J102,122 厚さ=0.1 |
1 | ||
| 88318-87705 |
J102,122 厚さ=0.3 |
1 | ||
| 88318-87706 |
J102,122 厚さ=0.5 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-97402 |
J102,122 |
1 | ||
| 88410-97211 |
J102,122 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-87403 |
J102,122 |
1 | ||
| 88431-87402 |
J102,122 |
1 | ||
| Common parts | ||||
| 88365-87201 | ||||
| 88365-87701 | ||||
| 88446-87701 | ||||
| 88466-87701 | ||||
| 88569-87107 | ||||
| 91621-60830 | ||||
| 91622-61025 | ||||
| 91622-61030 | ||||
| Linked diagrams | ||||
| 1605 | ||||
