J122E-GPZF (2000)

Toyota Cami

Production May 2000 - Dec 2005
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

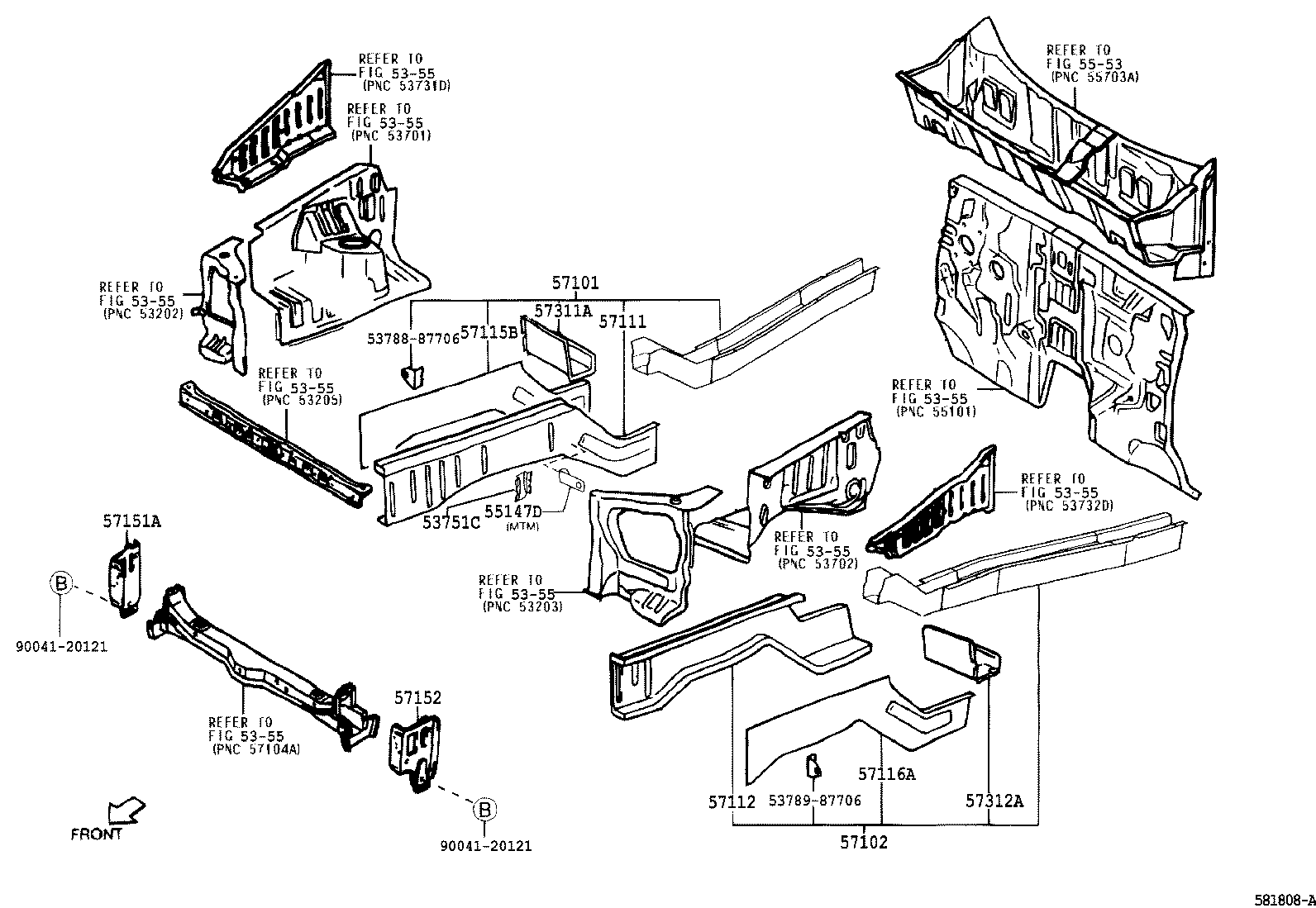

ILLUST NO. 1 OF 3(0005- )

Click highlighted areas on diagram

diagram 5355 5355 5355 5355 5355 5355 5355 5355 5355 53751C 5378887706 5378987706 55147D 5553 57101 57102 57111 57112 57115B 57116A 57151A 57152 57311A 57312A 9004120121 9004120121
Part # Description Qty Price
53751C - BRACKET, CHARCOAL CANISTER MOUNTING
53751-87401

J102,122

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-87406

J102,122..4AT

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-87404

J102,122

 1
57111 - MEMBER, FRONT SIDE, RH
57027-87401

J102,122

 1
57112 - MEMBER, FRONT SIDE, LH
57028-87401

J102,122

 1
57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH
57113-87402

J10#,122

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57114-87402

J10#,122

 1
57311A - OUTRIGGER, FRONT, NO.1 RH
57311-87403

J10#,122

 1
57312A - OUTRIGER, FRONT, NO.1 LH
57312-87402

J10#,122

 1
Common parts
53788-87706
53789-87706
90041-20121
Linked diagrams
5355
5553
