J122E-GPDF (2000)
Toyota Cami
ILLUST NO. 4 OF 6(9905-0112)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477G - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-87502 |
J10#,122 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-97201 |
J102,122 |
1 | ||
| 81980-87401 |
J102,122 |
1 | ||
| 82223F - WIRE, SWITCH | ||||
| 82223-87404 |
J102,122 |
1 | ||
| 82223-87401 |
J102,122 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-97203 |
J102,122 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84329-97204 |
J102,122..EFI |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-87401 |
J10#,122 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84458-87703 |
J10#,122 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-87208 |
J10#,122 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-97202 |
J102,122 |
1 | ||
| 84732D - SWITCH, HEATER BLOWER | ||||
| 84732-97403 |
J102,122 |
1 | ||
| 84732D - SWITCH, HEATER BLOWER | ||||
| 84732-97403 |
J102,122 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-87205 |
J10#,122 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-B4040 |
J10#,122 14V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-87505 |
J10#,122 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-87701 |
J10#,122 |
1 | ||
| Common parts | ||||
| 84139-97201 | ||||
| 93319-15012 | ||||
| 94130-61000 | ||||

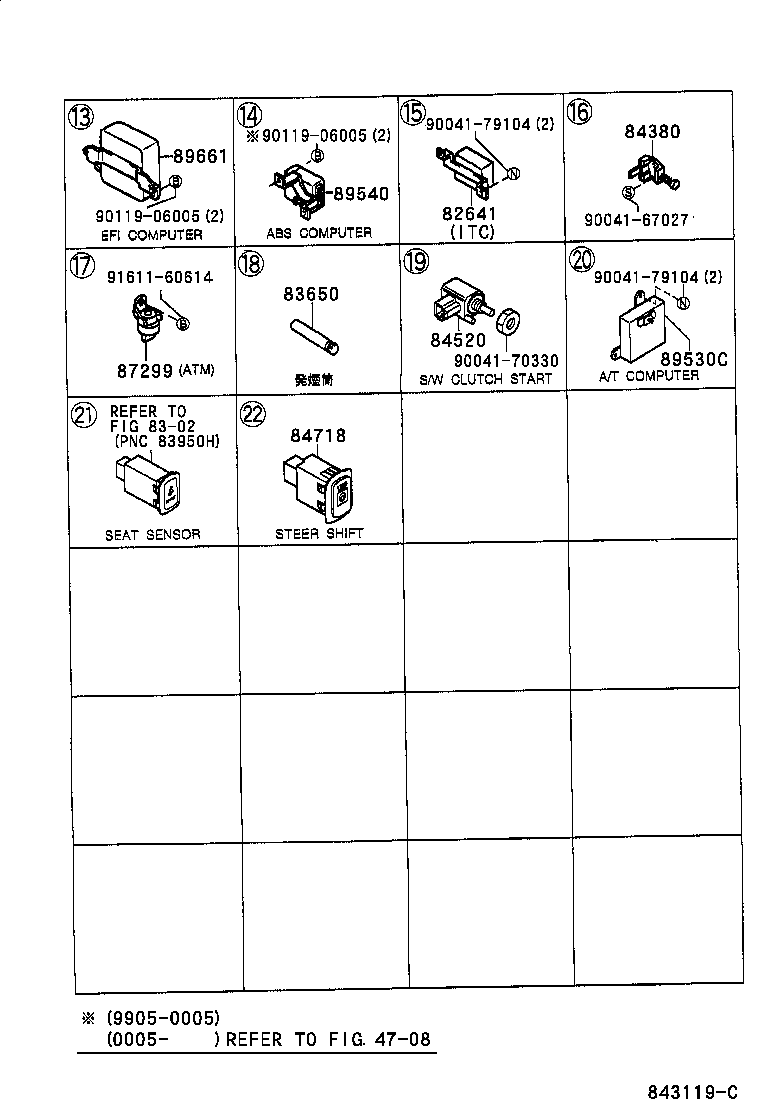

ILLUST NO. 5 OF 6(9905-0112)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-87403 |
J102,122 |
1 | ||
| 82641-87406 |
J102,122 |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
J10#,122 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-87708 |
J10#,122 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-87402 |
J122..4AT |
1 | ||
| 89530-87410 |
J122..4AT |
1 | ||
| 89530-87416 |
J122..4AT |
1 | ||
| 89530-87414 |
J122..4AT |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89560-87406 |
J102,122..4AT..EFI DENSO |
1 | ||
| 89560-87441 |
J102,122..4AT..EFI DENSO |
1 | ||
| 89560-87436 |
J102,122..4AT..EFI DENSO |
1 | ||
| 89560-87436 |
J122..4AT DENSO |
1 | ||
| 89560-87448 |
J102,122..4AT..EFI DENSO,ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| Common parts | ||||
| 90041-67027 | ||||
| 90041-70330 | ||||
| 90041-79104 | ||||
| 90119-06005 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 8302 | ||||

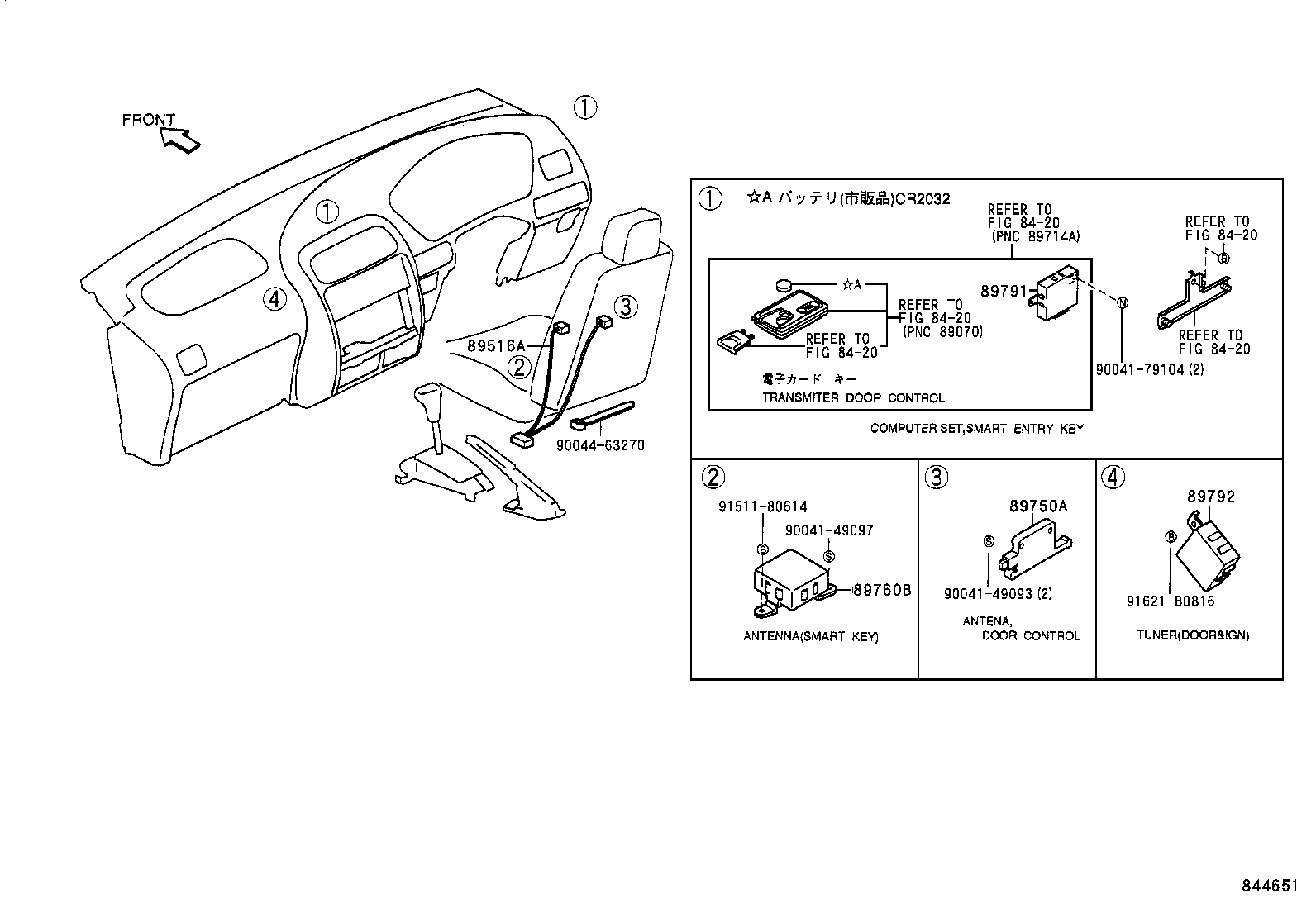

ILLUST NO. 6 OF 6(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516A - WIRE, ANTENNA | ||||
| 89516-87401 |
J102,122..4AT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 89750A - ANTENNA ASSY, DOOR LOCK CONTROL | ||||
| 89750-87401 |
J102,122..4AT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 89760B - ANTENNA ASSY, IGNITION LOCK CONTROL | ||||
| 89760-87402 |
J102,122..4AT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 89791 - COMPUTER, DOOR & IGNITION LOCK CONTROL | ||||
| 89791-87404 |
J102,122..4AT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 89792 - TUNER, DOOR & IGNITION LOCK CONTROL | ||||
| 89792-87401 |
J102,122..4AT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| Common parts | ||||
| 90041-49093 | ||||
| 90041-49097 | ||||
| 90041-79104 | ||||
| 90044-63270 | ||||
| 91511-80614 | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 8420 | ||||

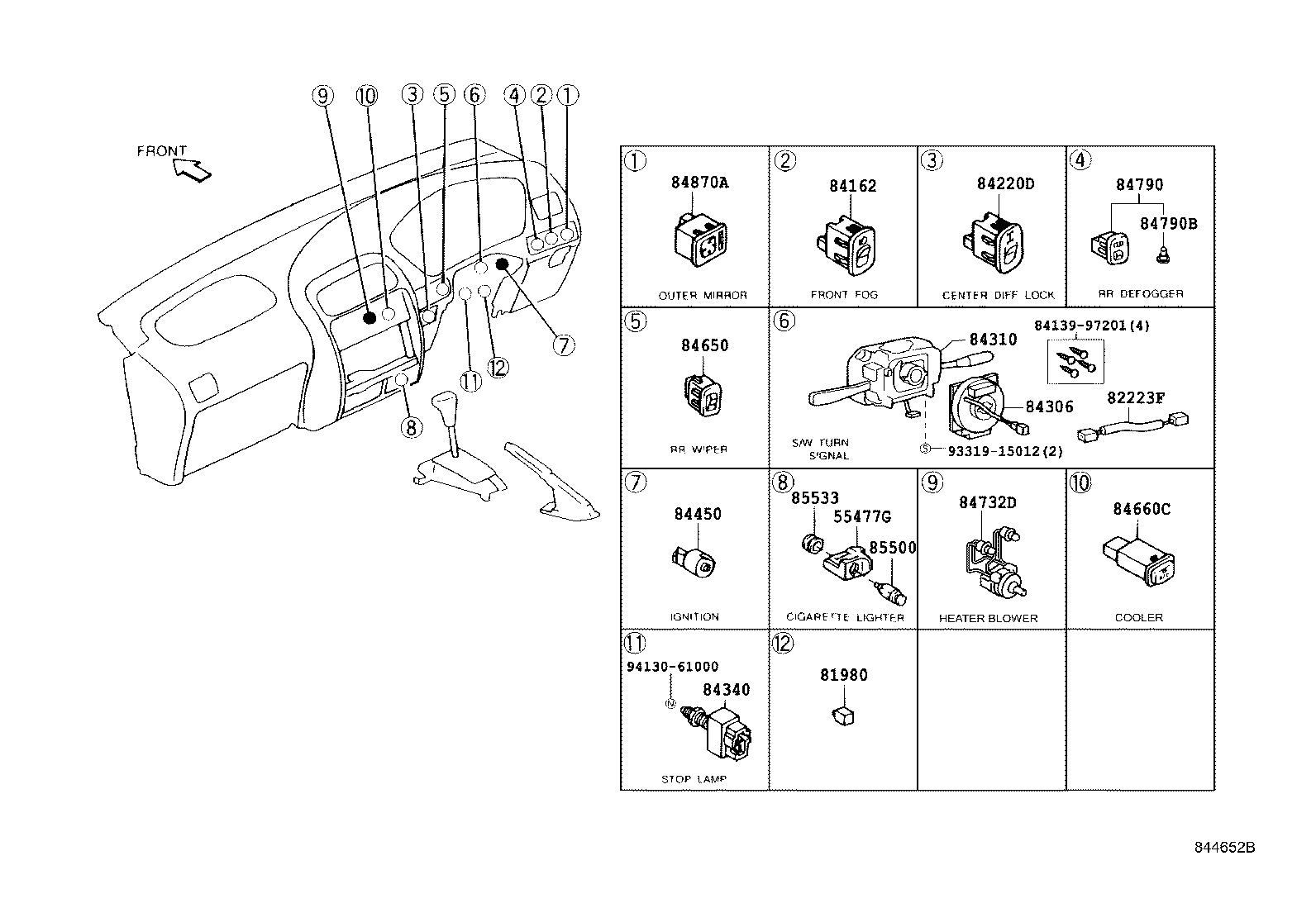

ILLUST NO. 4 OF 6(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55477G - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-87502 |
J10#,122 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-97201 |
J102,122 |
1 | ||
| 81980-87401 |
J102,122 |
1 | ||
| 82223F - WIRE, SWITCH | ||||
| 82223-87404 |
J102,122 |
1 | ||
| 82223-87401 |
J102,122 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-97203 |
J102,122 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84329-97204 |
J102,122..EFI |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-87401 |
J10#,122 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84458-87703 |
J10#,122 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-87208 |
J10#,122 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-97202 |
J102,122 |
1 | ||
| 84732D - SWITCH, HEATER BLOWER | ||||
| 84732-97403 |
J102,122 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-87205 |
J10#,122 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-B4040 |
J10#,122 14V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-87505 |
J10#,122 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-87701 |
J10#,122 |
1 | ||
| Common parts | ||||
| 84139-97201 | ||||
| 93319-15012 | ||||
| 94130-61000 | ||||

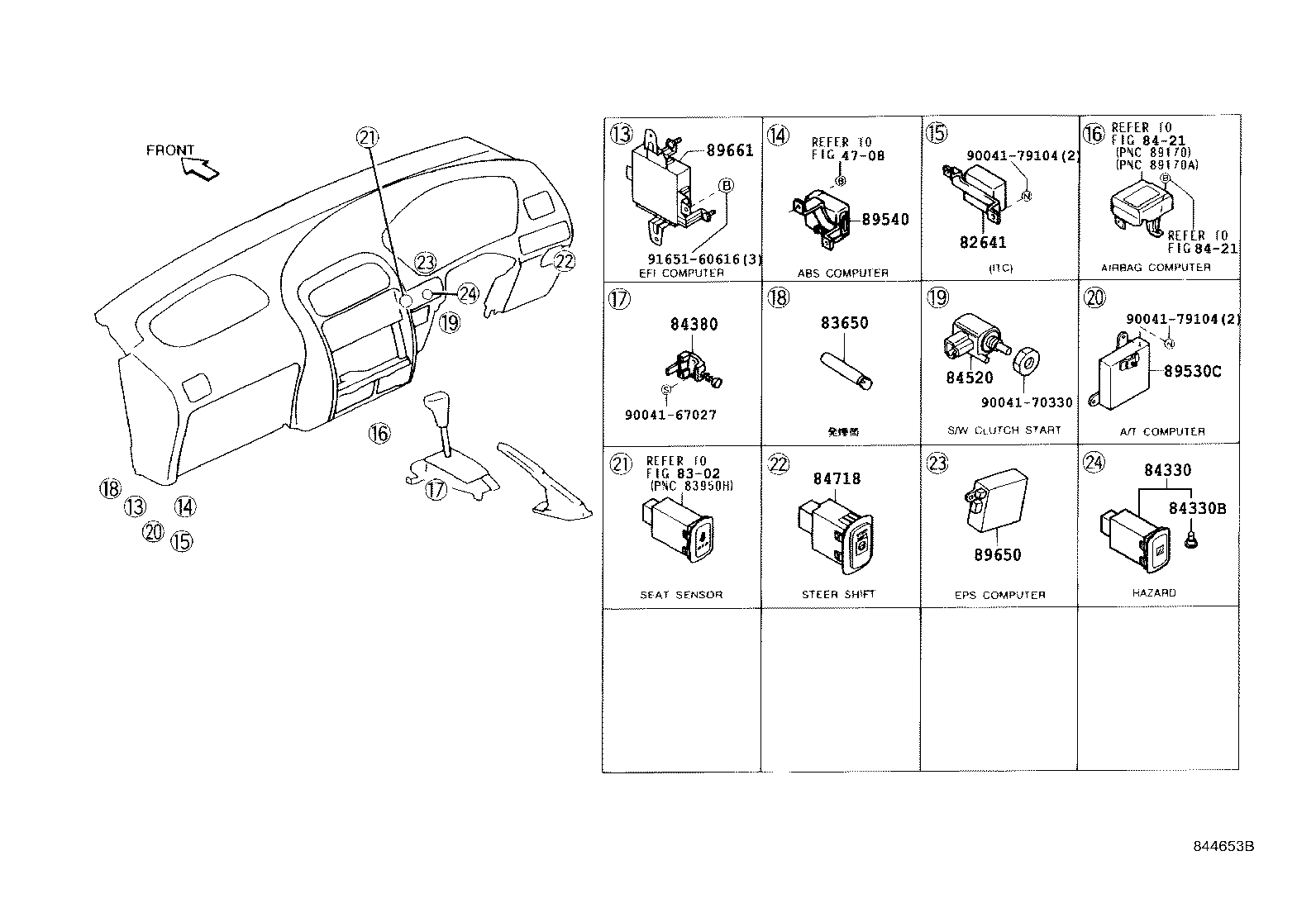

ILLUST NO. 5 OF 6(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-87403 |
J102,122 |
1 | ||
| 82641-87406 |
J102,122 |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
J10#,122 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-97501 |
J102,122 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-B4020 |
J102,122 14V 0.91W |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-87708 |
J10#,122 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-87402 |
J122..4AT |
1 | ||
| 89530-87410 |
J122..4AT |
1 | ||
| 89530-87416 |
J122..4AT |
1 | ||
| 89530-87414 |
J122..4AT |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-87401 |
J102,122 JTEKT/DENSO |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89560-87406 |
J102,122..4AT..EFI DENSO |
1 | ||
| 89560-87441 |
J102,122..4AT..EFI DENSO |
1 | ||
| 89560-87436 |
J102,122..4AT..EFI DENSO |
1 | ||
| 89560-87436 |
J122..4AT DENSO |
1 | ||
| 89560-87448 |
J102,122..4AT..EFI DENSO,ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| Common parts | ||||
| 90041-67027 | ||||
| 90041-70330 | ||||
| 90041-79104 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 4708 | ||||
| 8302 | ||||
| 8421 | ||||
