J122E-GPDF (2000)

Toyota Cami

Production May 2000 - Dec 2005

Engine K3VE

Transmission 4AT ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0005- )

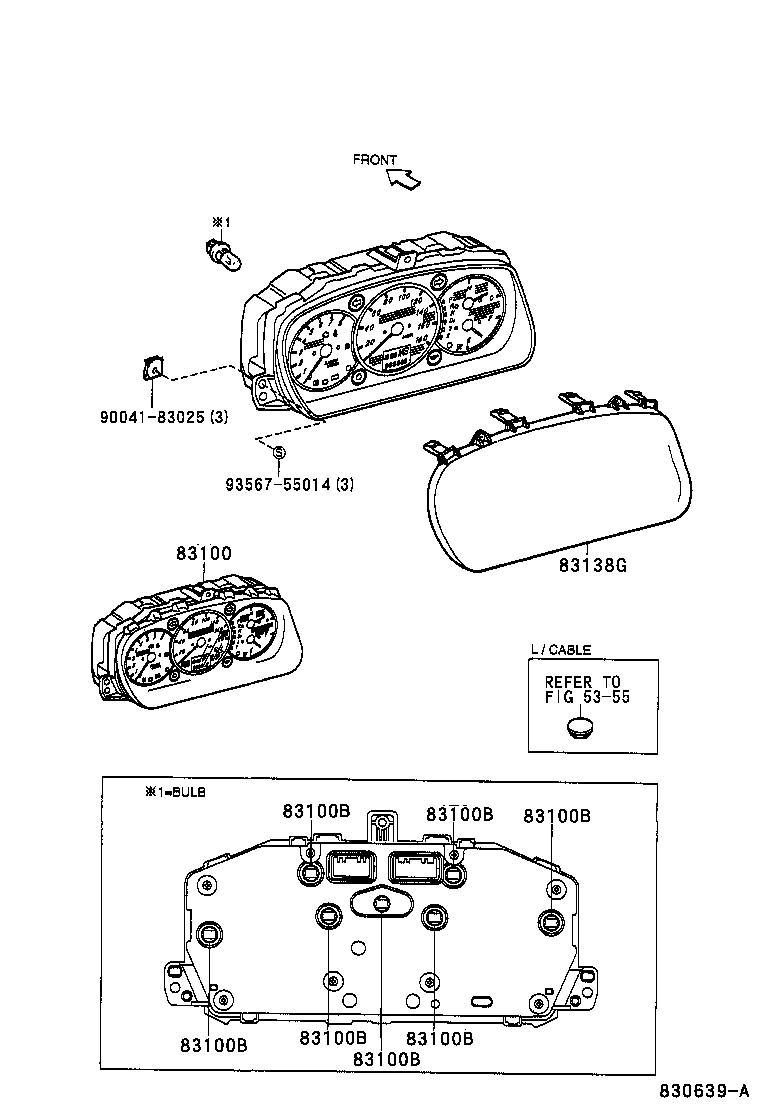

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
83100 - METER ASSY, COMBINATION
83010-87428	J122..4AT DENSO	05/2000 - 12/2001	1
83010-87R51	J122..4AT DENSO	12/2001 - 12/2999	1
83100B - BULB, COMBINATION METER, NO.1
83119-87205	J102,122 14V 1.4W	05/2000 - 12/2999	7
83100B - BULB, COMBINATION METER, NO.1
83119-87205	J102,122 14V 1.4W	05/2000 - 12/2999	7
83100B - BULB, COMBINATION METER, NO.1
83119-87205	J102,122 14V 1.4W	05/2000 - 12/2999	7
83100B - BULB, COMBINATION METER, NO.1
83119-87205	J102,122 14V 1.4W	05/2000 - 12/2999	7
83100B - BULB, COMBINATION METER, NO.1
83119-87205	J102,122 14V 1.4W	05/2000 - 12/2999	7
83100B - BULB, COMBINATION METER, NO.1
83119-87205	J102,122 14V 1.4W	05/2000 - 12/2999	7
83100B - BULB, COMBINATION METER, NO.1
83119-87205	J102,122 14V 1.4W	05/2000 - 12/2999	7
83138G - GLASS, COMBINATION METER
83138-97402	J102,122	05/2000 - 12/2999	1
Common parts
90041-83025
93567-55014
Linked diagrams
5355
