J122E-GPDF (2000)
Toyota Cami
Production
May 2000
-
Dec 2005
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

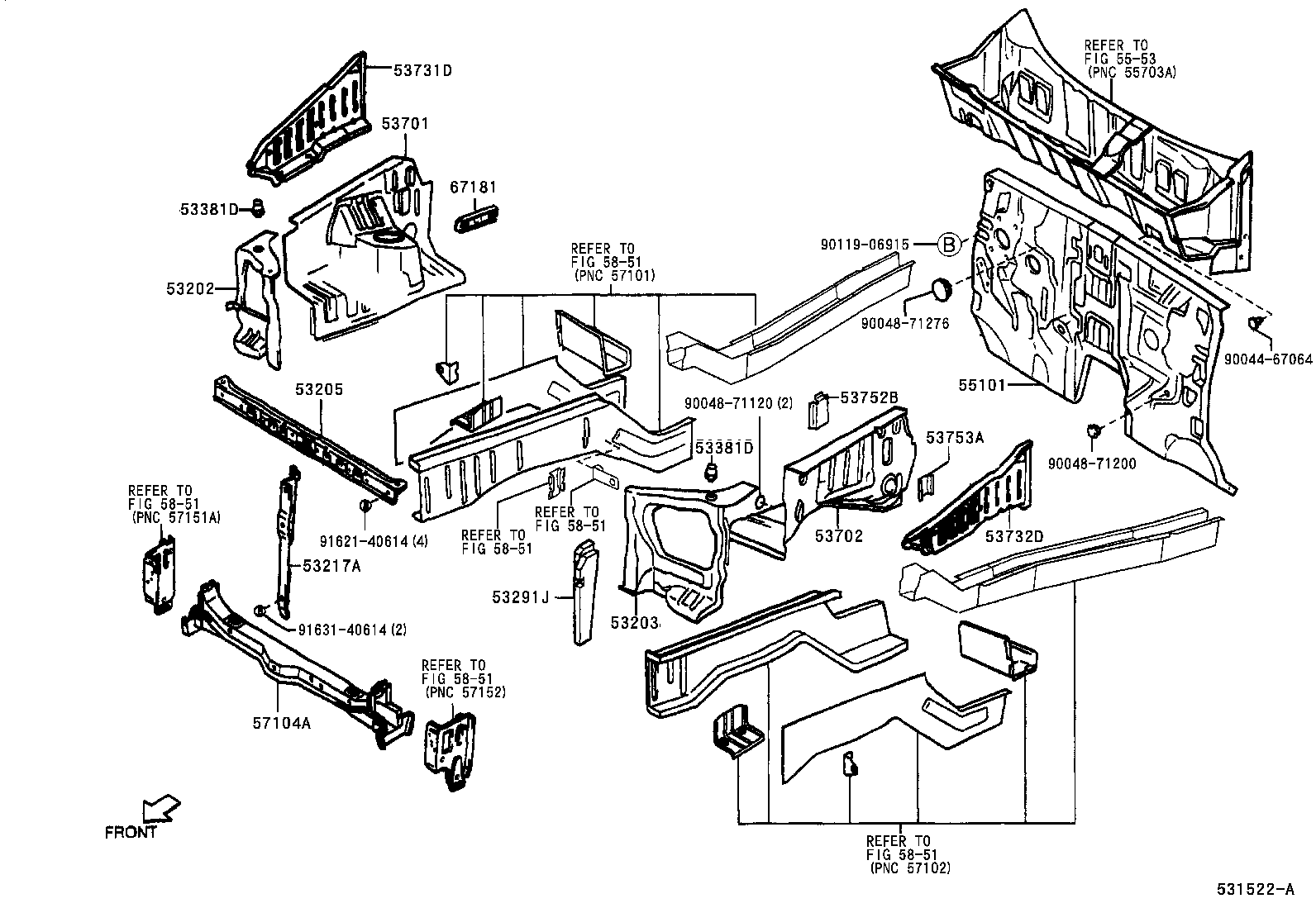

ILLUST NO. 1 OF 2(0005- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-87402 |
J102,122 |
1 | ||
| 53202-87403 |
J102,122 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-87402 |
J102,122 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-87403 |
J10#,122 |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53215-87402 |
J102,122 |
1 | ||
| 53215-87401 |
J10#,122 |
1 | ||
| 53291J - SEAL, RADIATOR SUPPORT | ||||
| 53291-87401 |
J102,122 |
1 | ||
| 53381D - BUMPER, HOOD TO FRONT SHROUD | ||||
| 53381-87701 |
J10#,122 |
2 | ||
| 53381D - BUMPER, HOOD TO FRONT SHROUD | ||||
| 53381-87701 |
J10#,122 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-87408 |
J10#,122 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-87411 |
J102,122 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-87401 |
J10#,122 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-87401 |
J10#,122 |
1 | ||
| 53752B - BRACKET, WASHER TANK MOUNTING | ||||
| 53752-87209 |
J10#,122 |
1 | ||
| 53753A - RETAINR, WASHER TANK | ||||
| 53753-87401 |
J10#,122 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-87450 |
J102,122..4AT |
1 | ||
| 55101-87428 |
J102,122..4AT |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-87402 |
J10#,122 |
1 | ||
| 67181 - RETAINER, DOOR HINGE | ||||
| 67181-87201 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90044-67064 | ||||
| 90048-71120 | ||||
| 90048-71200 | ||||
| 90048-71276 | ||||
| 90119-06915 | ||||
| 91621-40614 | ||||
| 91631-40614 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5851 | ||||
