J122E-GMZF (2000)

Toyota Cami

Production May 2000 - Aug 2003
Engine K3VE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

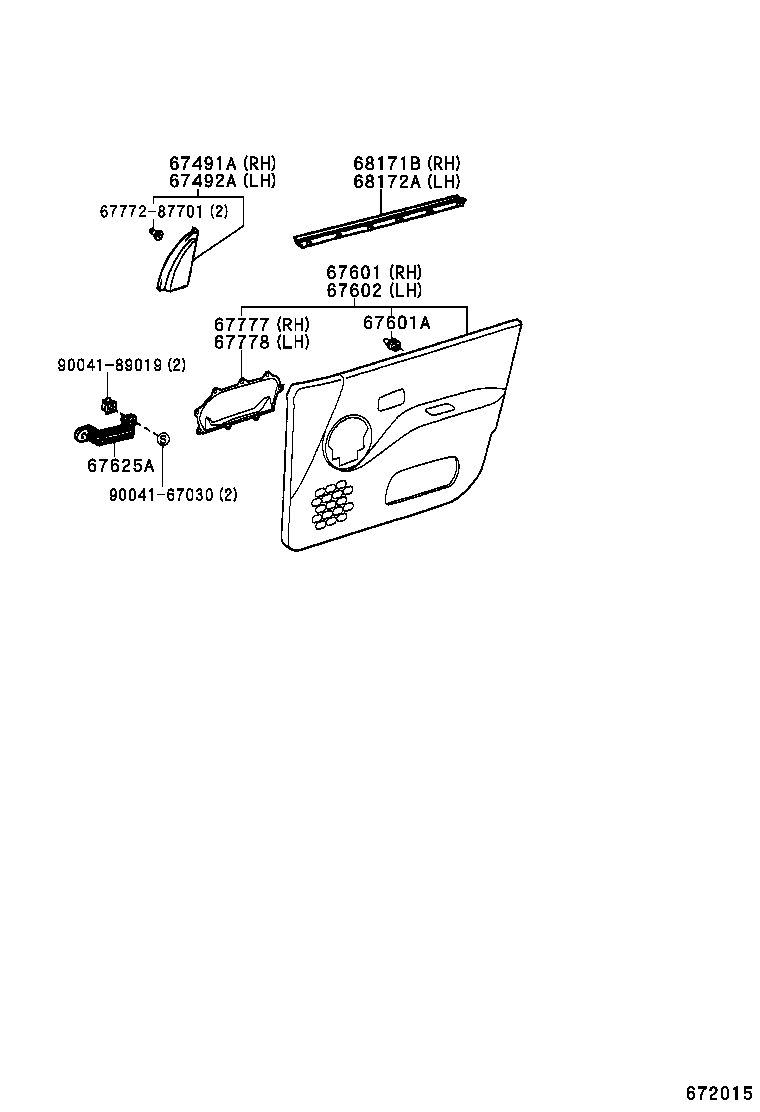

ILLUST NO. 1 OF 3(0005- )

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601A 67602 67625A 6777287701 67777 67778 68171B 68172A 9004167030 9004189019
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-87401

J10#,122

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-87401

J10#,122

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67605-8742003

J102,122..EFI

GRAY,TRIMS

 1
67605-8741403

J102,122..EFI

GRAY,TRIMS

 1
67605-8742103

J102,122..Q..EFI

ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ,GRAY,TRIMS

 1
67605-8741503

J102,122..Q..EFI

ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ,GRAY,TRIMS

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-87204

J10#,122

 16
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67606-8741403

J102,122..Q..EFI

ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ,GRAY,TRIMS

 1
67606-8741903

J102,122..EFI

GRAY,TRIMS

 1
67606-8741303

J102,122..EFI

GRAY,TRIMS

 1
67606-8742003

J102,122..Q..EFI

ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ,GRAY,TRIMS

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67635-87401

J102,122

左側

 1
67625-87402

J102,122

右側

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-8740103

J102,122

GRAY,TRIMS

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-8740103

J102,122

GRAY,TRIMS

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-87401

J10#,122

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68171-87401

J10#,122

 1
Common parts
67772-87701
90041-67030
90041-89019

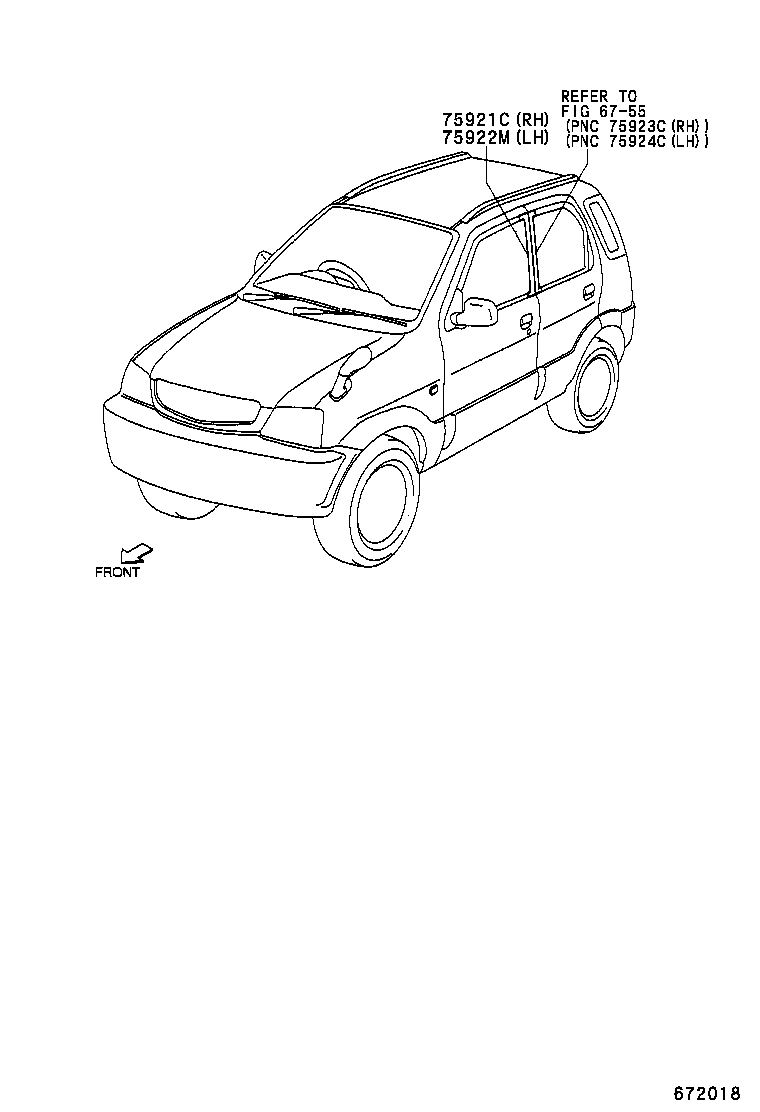

ILLUST NO. 4 OF 4(0005- )

Click highlighted areas on diagram

diagram 6755 75921C 75922M
Part # Description Qty Price
75921C - TAPE, BLACK OUT, NO.1 RH
75921-87401

J102,122..Q

ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-87401

J102,122..Q

ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ

 1
Linked diagrams
6755
