J122E-GMZF (2000)
Toyota Cami
Production
May 2000
-
Aug 2003
Engine
K3VE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )5F

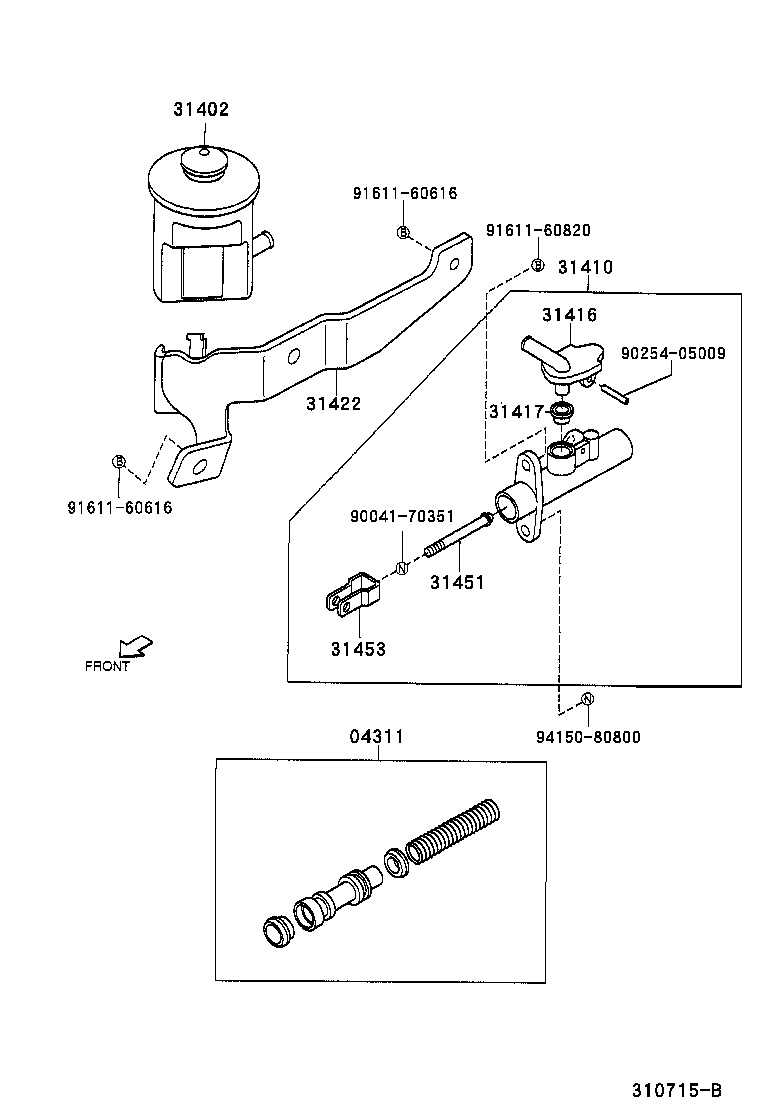

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-87401 |
J102,122..5F |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-87401 |
J102,122..5F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-87401 |
J102,122..5F |
1 | ||
| 31420-87402 |
J102,122..5F |
1 | ||
| 31416 - UNION, CLUTCH MASTER CYLINDER INLET | ||||
| 31416-87401 |
J102,122..5F |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
J102,122..5F |
1 | ||
| 31422 - BRACKET, CLUTCH RESERVOIR | ||||
| 31422-87401 |
J102,122..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-20090 |
J102,122..5F |
1 | ||
| 31451-87401 |
J102,122..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-10040 |
J102,122..5F |
1 | ||
| Common parts | ||||
| 90041-70351 | ||||
| 90254-05009 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 94150-80800 | ||||
