J122E-GMDF (2000)
Toyota Cami
Production
May 2000
-
Dec 2005
Engine
K3VE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

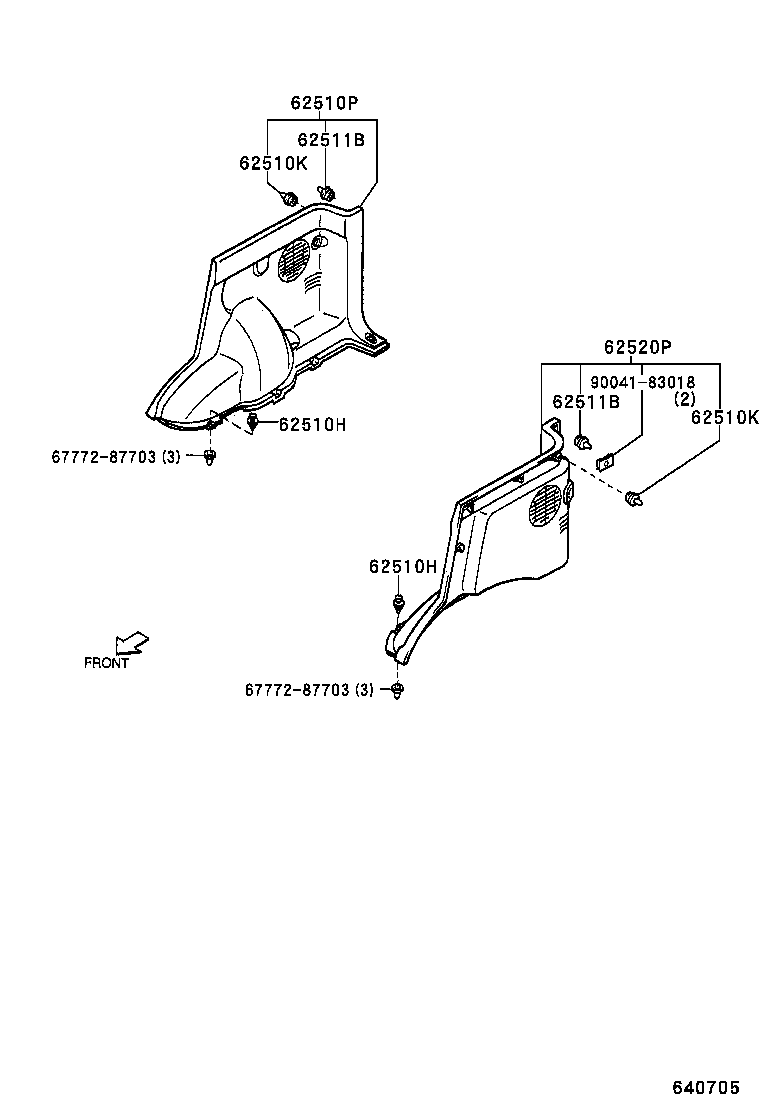

ILLUST NO. 2 OF 2(9905-0112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-6806163 |
J102,122 GRAY,TRIMS |
8 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-6806163 |
J102,122 GRAY,TRIMS |
8 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-68284 |
J10#,122 |
16 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-68284 |
J10#,122 |
16 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 64714-8740113 |
J102,122 GRAY,TRIMS |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90044-68281 |
J10#,122 |
2 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90044-68281 |
J10#,122 |
2 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 64715-8740113 |
J102,122 GRAY,TRIMS |
1 | ||
| Common parts | ||||
| 67772-87703 | ||||
| 90041-83018 | ||||

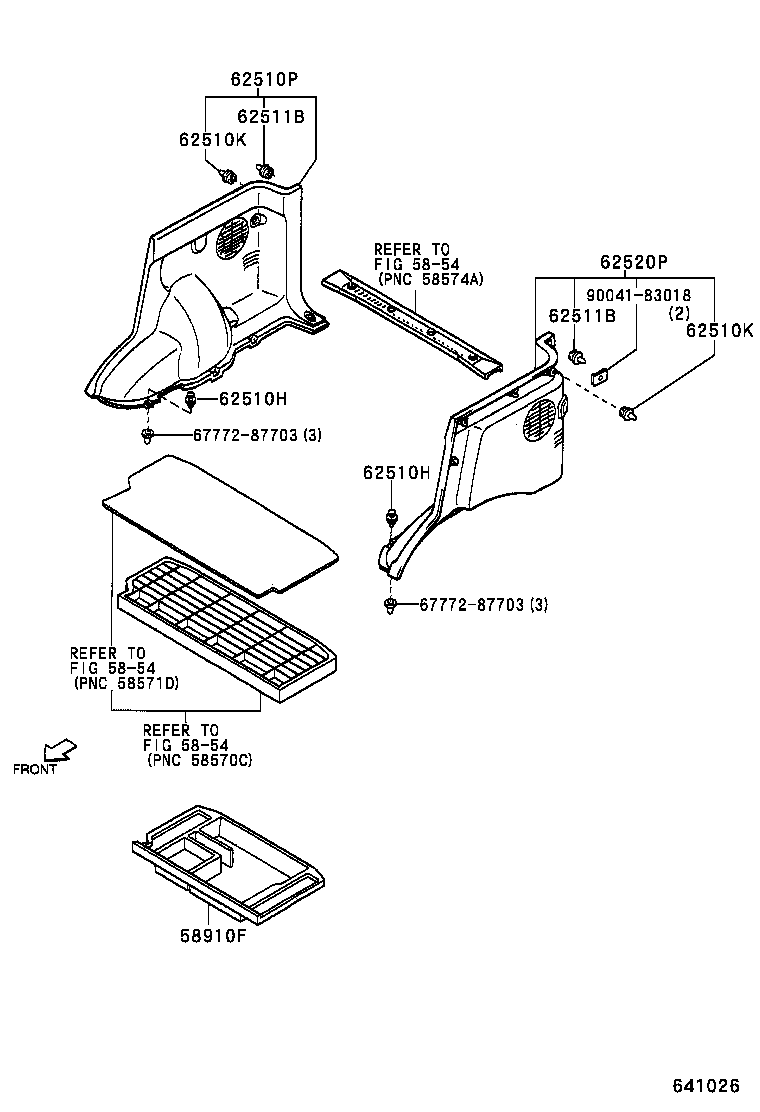

ILLUST NO. 2 OF 2(0112- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58910F - BOX ASSY, REAR TRAY | ||||
| 58910-87403 |
J102,122 |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-6806163 |
J102,122 GRAY,TRIMS |
8 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-6806163 |
J102,122 GRAY,TRIMS |
8 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-68284 |
J10#,122 |
16 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90044-68284 |
J10#,122 |
16 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 64714-8740113 |
J102,122 GRAY,TRIMS |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90044-68281 |
J10#,122 |
2 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90044-68281 |
J10#,122 |
2 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 64715-8740113 |
J102,122 GRAY,TRIMS |
1 | ||
| Common parts | ||||
| 67772-87703 | ||||
| 90041-83018 | ||||
| Linked diagrams | ||||
| 5854 | ||||
