J122E-GMDF (2000)
Toyota Cami
Production
May 2000
-
Dec 2005
Engine
K3VE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )J122..5F

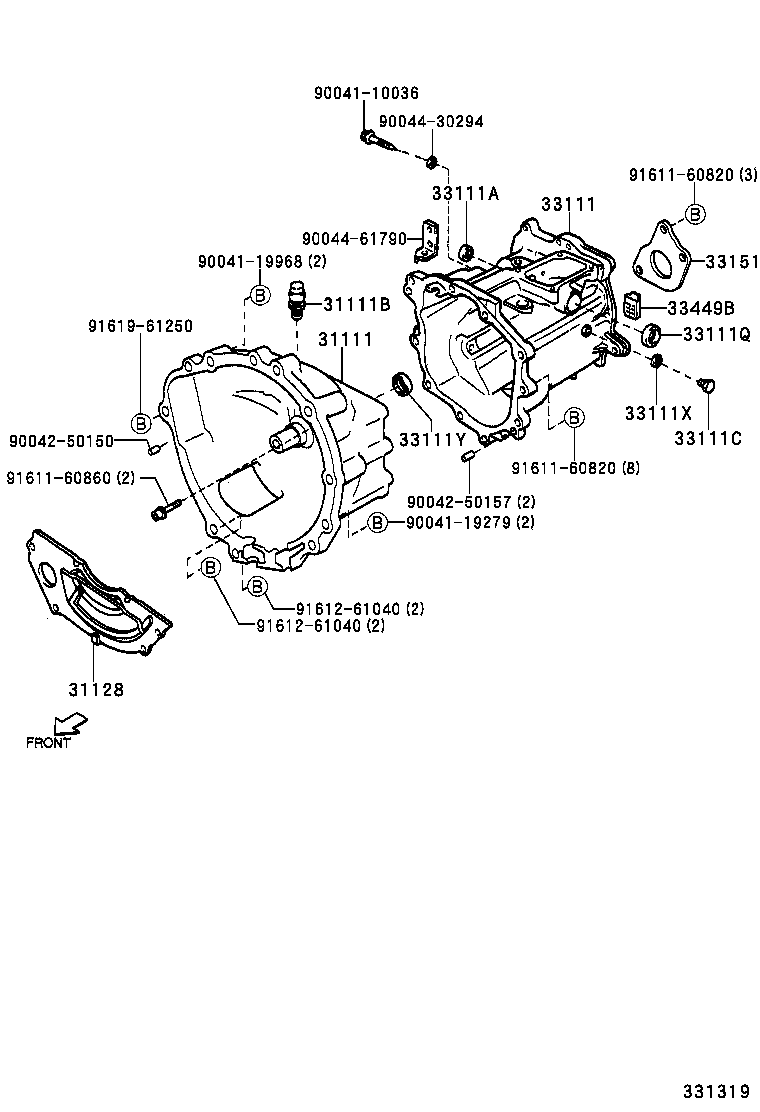

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-87403 |
J102,122..5F |
1 | ||
| 31111B - PLUG(FOR CLUTCH HOUSING) | ||||
| 90049-15026 |
J10#,122..5F |
1 | ||
| 31128 - COVER, CLUTCH HOUSING UNDER | ||||
| 31128-87404 |
J102,122..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90043-31025 |
J10#,122..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90043-41015 |
J10#,122..5F |
2 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90043-11308 |
J10#,122..5F |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90044-30186 |
J10#,122..5F |
3 | ||
| 33111Y - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90043-10051 |
J10#,122..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-97501 |
J122..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-87501 |
J10#,122..5F |
1 | ||
| Common parts | ||||
| 90041-10036 | ||||
| 90041-19279 | ||||
| 90041-19968 | ||||
| 90042-50150 | ||||
| 90042-50157 | ||||
| 90044-30294 | ||||
| 90044-61790 | ||||
| 91611-60820 | ||||
| 91611-60860 | ||||
| 91612-61040 | ||||
| 91619-61250 | ||||
