J122E-GMDF (2000)

Toyota Cami

Production May 2000 - Dec 2005
Engine K3VE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )5F

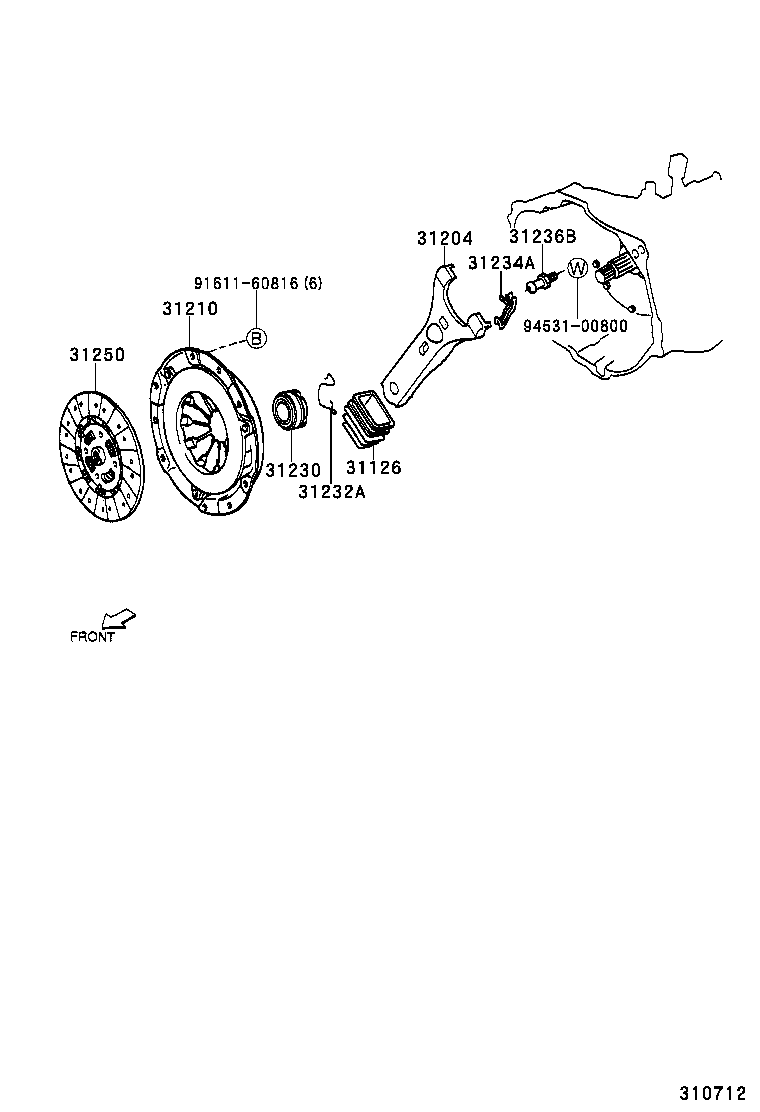

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31234A 31236B 31250 9161160816 9453100800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

J102,122..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31233-87402

J102,122..5F

 1
31210 - COVER ASSY, CLUTCH
31210-87404

J102,122..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-97502

J102,122..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-87401

J102,122..5F

 1
31234A - SPRING, RELEASE FORK SUPPORT
31234-87402

J10#,122..5F

 1
31236B - SUPPORT, RELEASE FORK
31236-87401

J102,122..5F

 1
31250 - DISC ASSY, CLUTCH
31250-87404

J102,122..5F

 1
Common parts
91611-60816
94531-00800
