J102E-GPZF (2000)
Toyota Cami
Production
May 2000
-
Dec 2005
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )4AT

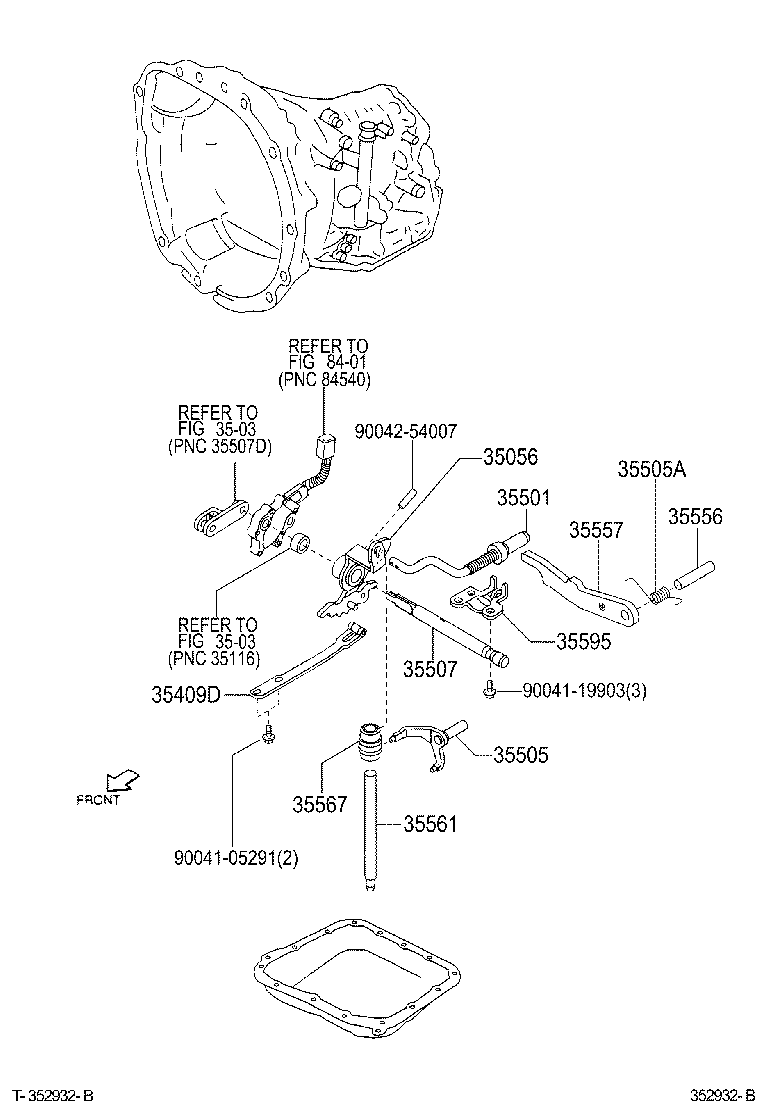

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER | ||||
| 35057-97501 |
J102,122..4AT |
1 | ||
| 35409D - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-97501 |
J102,122..4AT |
1 | ||
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-97501 |
J102,122..4AT |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-97501 |
J102,122..4AT |
1 | ||
| 35505A - SPRING, TORSION (FOR MANUAL VALVE LEVER) | ||||
| 90045-08388 |
J102,122..4AT |
1 | ||
| 35507 - SHAFT SUB-ASSY, TRANSMISSION CONTROL INTERMEDIATE | ||||
| 35511-97501 |
J102,122..4AT |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-87502 |
J102,122..4AT |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-97501 |
J102,122..4AT |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35568-97501 |
J102,122..4AT |
1 | ||
| 35567 - ROD, TRANSMISSION CONTROL, 3RD | ||||
| 35567-97501 |
J102,122..4AT |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-97501 |
J102,122..4AT |
1 | ||
| Common parts | ||||
| 90041-05291 | ||||
| 90041-19903 | ||||
| 90042-54007 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 8401 | ||||
