J102E-GPDF (2000)

Toyota Cami

Production May 2000 - Dec 2005
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )

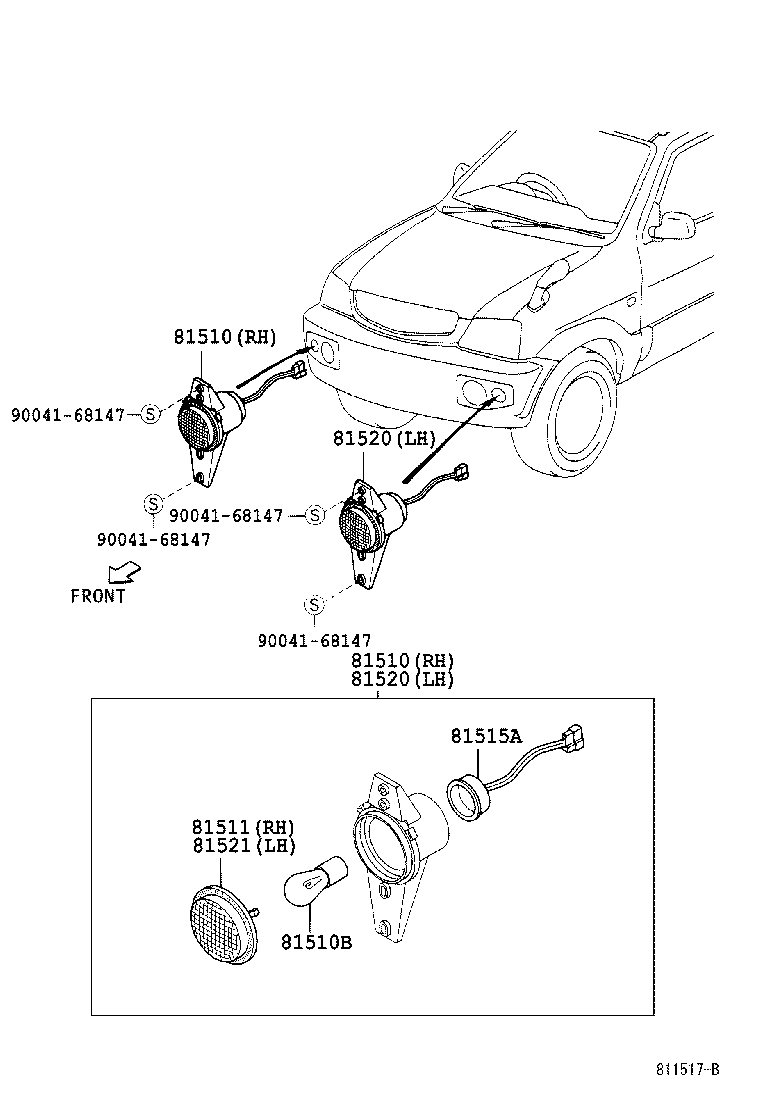

Click highlighted areas on diagram

diagram 81510 81510 81510B 81511 81515A 81520 81520 81521 9004168147 9004168147 9004168147 9004168147
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-87406

J102,122

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-87406

J102,122

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90049-51128

J102,122

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-87405

J102,122

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
81515-87401

J102,122

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-87406

J102,122

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-87406

J102,122

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-87404

J102,122

 1
Common parts
90041-68147
