J102E-GPDF (2000)

Toyota Cami

Production May 2000 - Dec 2005
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )J102

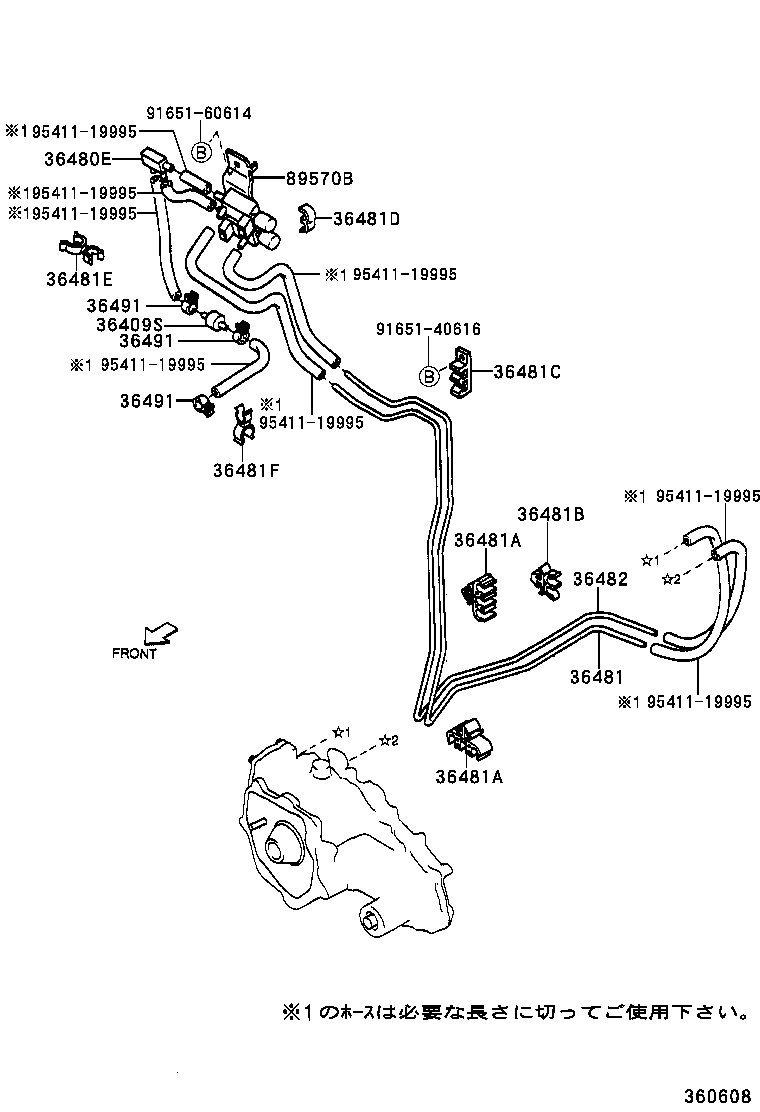

Click highlighted areas on diagram

diagram 36409S 36480E 36481 36481A 36481A 36481B 36481C 36481D 36481E 36481F 36482 36491 36491 36491 89570B 9165140616 9165160614 9541119995 9541119995 9541119995 9541119995 9541119995 9541119995 9541119995 9541119995
Part # Description Qty Price
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90048-20008

J10#

 1
36480E - WAY, 3 (FOR TRANSFER VACUUM TUBE)
90044-13034

J10#

 1
36481 - TUBE, FRONT DRIVE VACUUM, NO.1
36481-87402

J102

 1
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64154

J102

 2
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90044-64154

J102

 2
36481B - CLAMP, FRONT DRIVE VACUUM TUBE, NO.1
90044-64485

J102

 1
36481C - CLAMP, FRONT DRIVE VACUUM TUBE, NO.2
90044-64424

J10#

 1
36481D - CLAMP, NO.1 (FOR TRANSFER VACUUM)
90044-64108

J102

 1
36481E - CLAMP, NO.2 (FOR TRANSFER VACUUM)
90464-00298

J10#

 1
36481F - CLAMP, NO.3(FOR TRANSFER VACUUM)
90044-64530

J102

 1
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-87402

J102

 1
36491 - CLAMP, TRANSFER VACUUM TUBE, N0.1
90044-67122

J10#

 3
36491 - CLAMP, TRANSFER VACUUM TUBE, N0.1
90044-67122

J10#

 3
36491 - CLAMP, TRANSFER VACUUM TUBE, N0.1
90044-67122

J10#

 3
89570B - VALVE ASSY, VACUUM SWITCHING
89570-87403

J102

 1
89570-87401

J10#

 1
Common parts
91651-40616
91651-60614
95411-19995
